| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD31 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD19.00~$25/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | China Smart OEM 4-20mA 0~5v Mini Air Gas Pressure Sensor Transmitter | Output: | 0-5V, 0.5-4.5V,1-5V;4-20mA, |
|---|---|---|---|
| Accuracy: | 0.5%FS;1%FS;1.5%FS | Power Supply: | 5VDC, 12VDC, 24VDC, 36VDC |
| Thread:: | G1/4, G1/2 1/4NPT, 1/2NPT And Others | Application: | Water Oil Air Pressure Measurement Sensor |
| Pressure Type: | Gauge/absolute/vacuum | Pressure Range: | 0....1bar 0....60bar |
| Material: | Ss304, Ss316 |

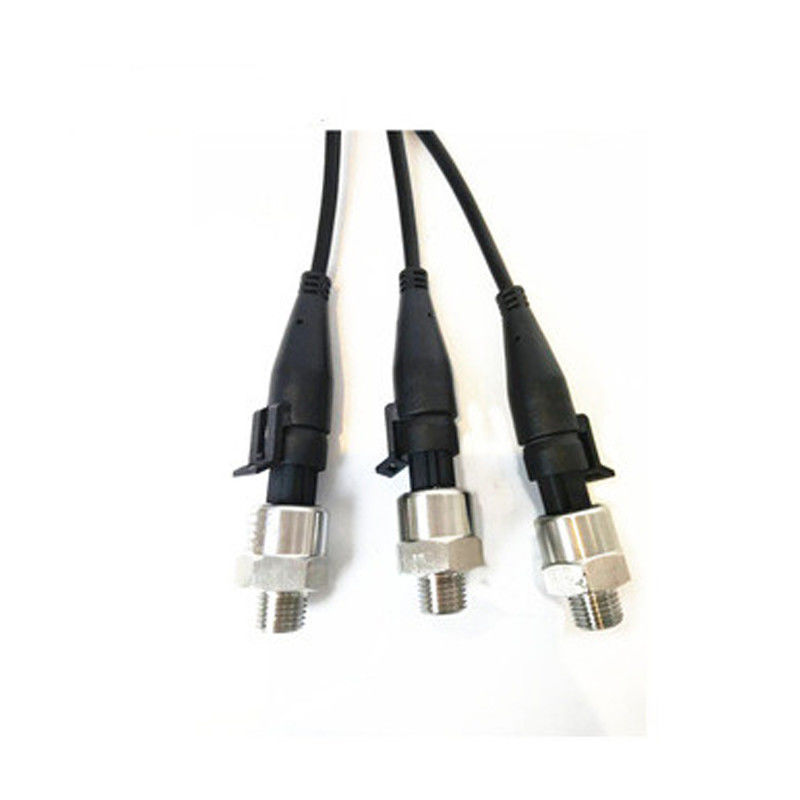

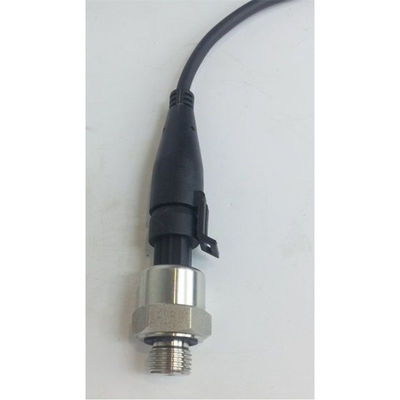

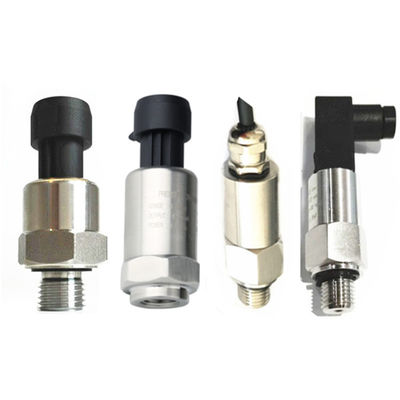

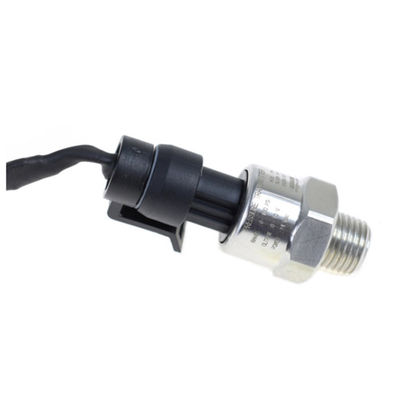

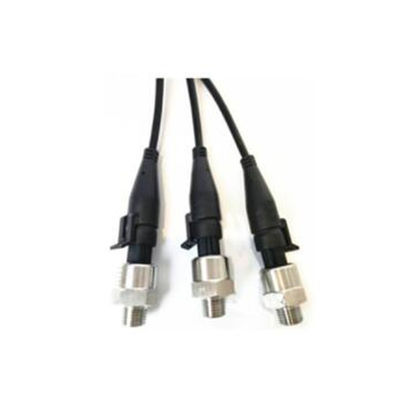

4-20ma mini air gas Pressure sensor Integration with a piezoresistive ceramic pressure sensor, signal processing circuit imported from Germany dedicated chip, signal conditioning circuit reliability, redundancy and thermal design to ensure product reliability and consistency. Cycle fatigue pressures up to 10 million times.
| Item | 4-20mA 0~5v mini air gas Pressure sensor transmitter |
| Range: | 0….1bar 0….60bar |
| Accuracy: | 0.5%FS;1%FS;1.5%FS |
| Nonlinear: | 0.02%FS |
| Reliability: | 0.05%FS |
| Output signal: | 0-5V, 0.5-4.5V,1-5V;4-20mA, |
| Supply voltage: | 5VDC ;24(12-36V)DC |
| Operating temperature : | -40℃~125℃ |
| Compensated Temperature: | -10℃~70℃ |
| Overload pressure: | 150%FS |
| Dielectric material: | 316SS |
| Electrical connection: | 3 pin Packard connector |
| Pressure connection: | 1/4NPT, 1/8-27NPT, 7/16-20UNF custom |
using integrated piezoresistive ceramic pressure sensor
signal processing circuit ASIC imported from Germany
signal conditioning circuit reliability redundant design and thermal design
cycle fatigue pressures up to 10 million times
Automotive Oil Pressure
Car brake pressure
Motorized off-road equipment and industrial machinery
