| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | HP |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD15~$45/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measure Range: | -100KPa~100MPa Absolute Or Sealed Gauge Pressure | Pressure Type: | Gauge (G), Absolute (A), Sealed Gauge (S) |
|---|---|---|---|
| Overload: | 2 Times The Basic Overload | Accuracy: | 0.1 0.05 |
| Output Signal: | Current , Digital Signal Optional (see Option Page) | Supply: | 12-36Vdc |
| Operating Temperature Range: | Medium Temperature -30 ~ 100 °C Ambient Temperature -30 ~ 80 °C | Protection: | IP65 |
| Thread: | Optional (see Option Page) | Product Name: | China Smart 4-20ma Piezoresistive Pressure Sensor |
china smart 4-20ma piezoresistive pressure sensor
Product Description china smart 4-20ma piezoresistive pressure sensor
Piezoresistive sensor is a kind of pressure sensor. Piezoresistive pressure sensor, also known as diffusion silicon pressure sensor. Piezoresistive pressure transmitter, the sensor signal through the signal processing circuit after the conversion to standard signal output, the product after a long period of aging and stability assessment process strict screening, stable and reliable performance. Used in the relatively poor environment of the open field, while requiring on-site observation of pressure display, the need for zero migration and range adjustment of the occasion.

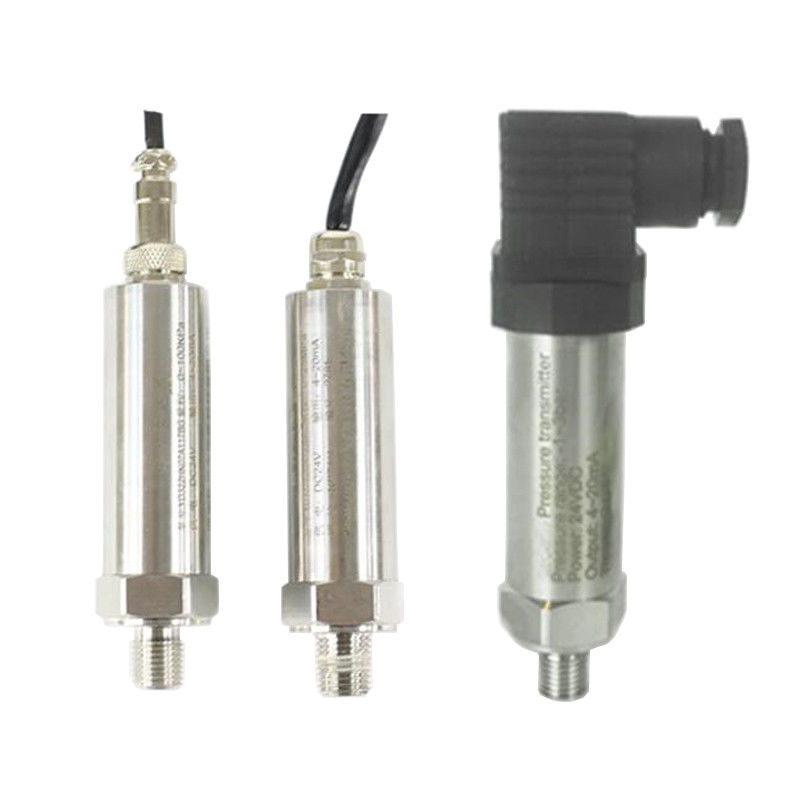

Product show china smart 4-20ma piezoresistive pressure sensor
Parameters china smart 4-20ma piezoresistive pressure sensor
| Pressure | -100KPa~100MPa Absolute or sealed gauge pressure |
| Power supply | 12~36V |
| Output | Current, voltage, digital signal optional (see option page) |
| Overload | 2 times basic overload |
| Material | SS 316 |
| Sealing | Sealed non-interior sealed |
| Thread | Screw optional |
| Accuracy | 0.2grade 0.5grade |
| temperature drift | ±0.08FS/°C(4~20mA output) |
| Response frequency | 200HZ |
| Temperature | Medium temperature -30~80°C Environment temperature -30~80°C |
| Protect class | IP65 or IP67 High magnetic compatibility |
