| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | MNS |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD10~$25/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Medium: | Liquid Or Gas | Output Signal: | 0-5v, 0-10v, 4-20mA |
|---|---|---|---|
| Pressure Range: | 0-60bar Or Other Custom | MOQ: | 1 Piece |
| Warranty: | 1 Year | Isolation Voltage: | 500V |
| 1 Year Stability: | ≤0.05 % F.S | Medium Temperature: | -20℃ ~ +125℃ |
| Ambient: | -40℃ ~ +100℃ | Weight: | 70g |

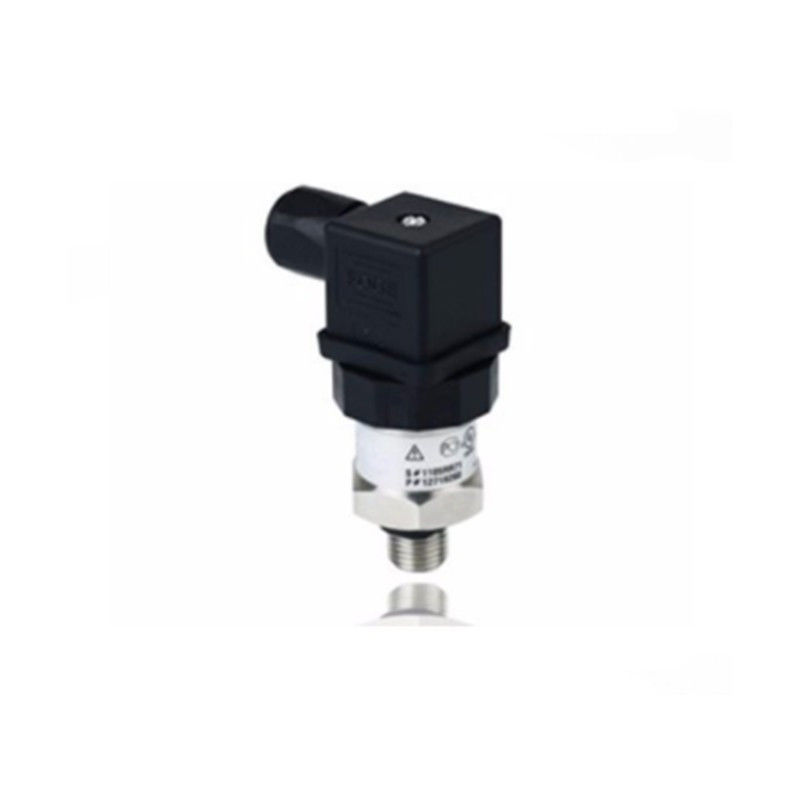

Low cost Water Air 4-20mA mini pressure sensor
Description
Air compressor pressure sensor for sophisticated integrated stainless steel structure, built-in digital processing circuitry to convert the sensor millivolt signal into a standard voltage and current output, the structure forms, output forms. Compact pressure transmitter is small, light weight, easy to install and simple. After rigorous testing of the product components, semi-finished and finished products and aging screening, stable performance, widely used in industrial automation equipment, for a variety of complex environments with good adaptability.
Product has a mature mass production line, timely completion of quality and quantity of production tasks, and a complete after-sale service system installation.

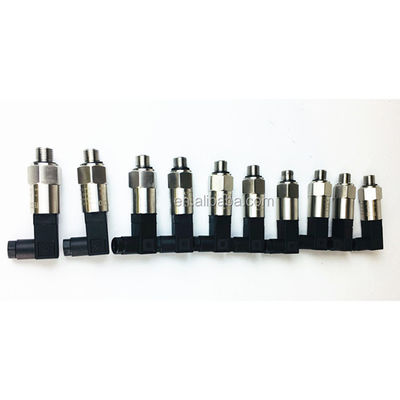

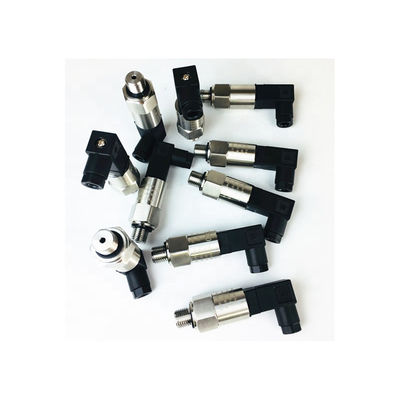

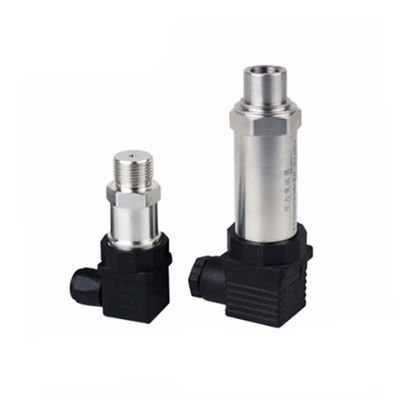

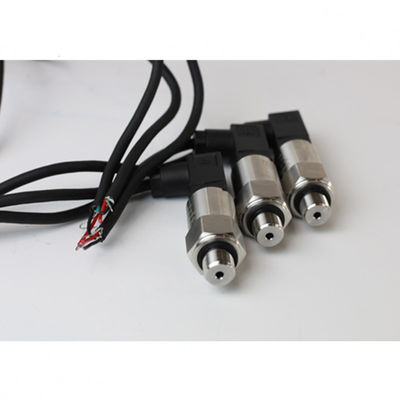

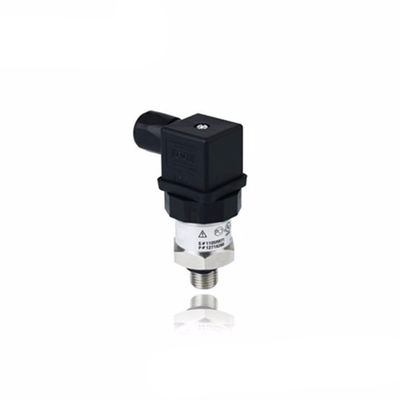

Detailed Images
Specification
| Low cost Water Air 4-20mA mini pressure sensor | |||||||||
| Max. Pressure* | 0~-1 bar | 1bar | 2bar | 5bars | 10bars | 16bars | 20bars | 25bars | 30bars |
| Burst Pressure** | 4bar | 4bar | 8bar | 20bar | 40bar | 64bar | 80bar | 100bar | 120bar |
| Pressure Range | 40bar | 50bar | 60bar | ||||||
| Max. Pressure* | 80bar | 100bar | 120bar | ||||||
| Burst Pressure** | 160bar | 200bar | 240bar | ||||||
* Pressure Applied up to the maximum rating will cause no permanent change in specifications but may lead to zero and span shifts
**Exceeding the burst pressure may result in destruction of the transmitters and possible loss of media
| Materials | Low cost Water Air 4-20mA mini pressure sensor |
| O-ring | NBR (FKM or EPCM) |
| Power Supply | 5V with signal output 0.5~4.5V/1~5V/0~5V, 12~32V with signal output 0~10V 9~32V with signal output 4~20mA |
| Response Time (10~90)% | ≤2ms |
| Isolation Voltage | 500V DC |
| Accuracy | ≤1% F.S @25℃ (Includes Linearity, Hystearesis and Repeat ability) ≤3% F.S @ (-40℃ ~ +125℃) (Limit Point Calibration) |
| 1 Year Stability | ≤0.05 % F.S |
| Permissible Temperature as Below | |
| Medium | -20℃ ~ +125℃ |
| Ambient | -40℃ ~ +100℃ |
| Storage | -40℃ ~ +100℃ |
| Compensated Temperature Range | -20℃ ~ +125℃ |
| Mean TC of Range | Typical: 0.03%F.S/℃ Maximal: 0.1%F.S/℃ |
| CE-conformity | |
| Test Standard | EN 55022:2010/AC:2011 EN 61000-3-2: 2014 EN 61000-3-3: 2013 EN 55024:2010 |
| EMC Directive | 2014/30/EU |
| Shock Resistance | 1000g According to IEC 60068-2-27 (Mechanical Shock) |
| Vibration Resistance | 20g According to IEC 60068-2-6 (Vibration under Resonance) |
| Wiring Protection | Protected Against Reverse Polarity, Overvoltage and Short Circuit |
| Weight | 70g |
| Connection | G1/4 (NPT1/4, G1/4 and others available |
Features
* Small Size Easy Installation
* Stainless Steel Case Sturdy and Durable
* Wide Temperature Range: -40℃ ~ +125℃
* Durable Thin File Sensors Technology
* Pressure Range from -1 bar to 60 bars
* Output: 0.5~4.5V, 1~5V, 0~5V Ratiometric Outputs
* 0~10, 4~20mA, Others Available
* Highly Resistant to Pressure Spikes And Vibration
Applications
* Automobile, Compressor and Refrigeration Industry
* Engineering Machinery
* Pressure Control and Monitor
* Energy and Water Treatment System
* Amarium, Agricultrual Machinery
* Hydraulic and Pneumatic Control System
* Iron and Steel Industry, Light Industry
* Pump, Fitness Equipment, Household Appliances
* Hydraulics and Pnematics
* Liquid Level Measurement
* Test Equipment
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
