| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SED1 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD45~$65/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measure Range: | 0 ~ 10KPa...2MPa | Accuracy: | 0.25% FS, 0.5% FS, 1.0% FS |
|---|---|---|---|
| Output Signal: | 4-20mA |
High accuracy current output differential display gas pressure sensor
Description
Diffuse Silicon pressure transducer is standard and most popular transmitter applied in air and liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. Through the high reliability of amplifying circuit and precise temperature compensation, and perfect assembly process to ensure the quality and performance of the product.This pressure transmitter is designed for industry application with perfect long term stability.

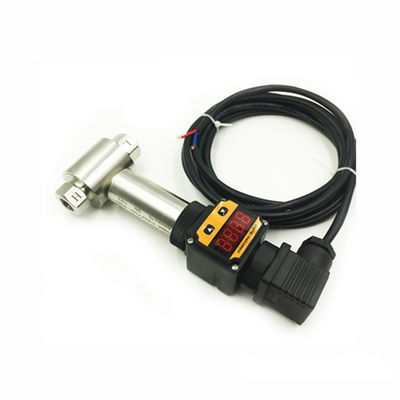

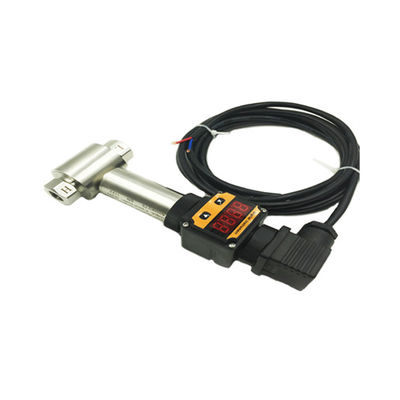

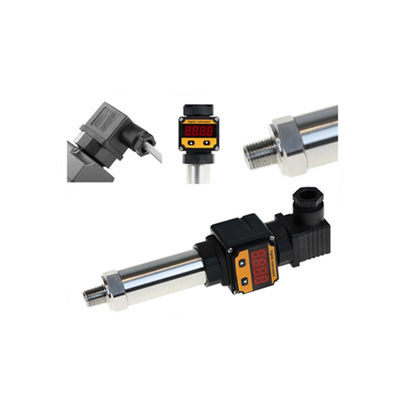

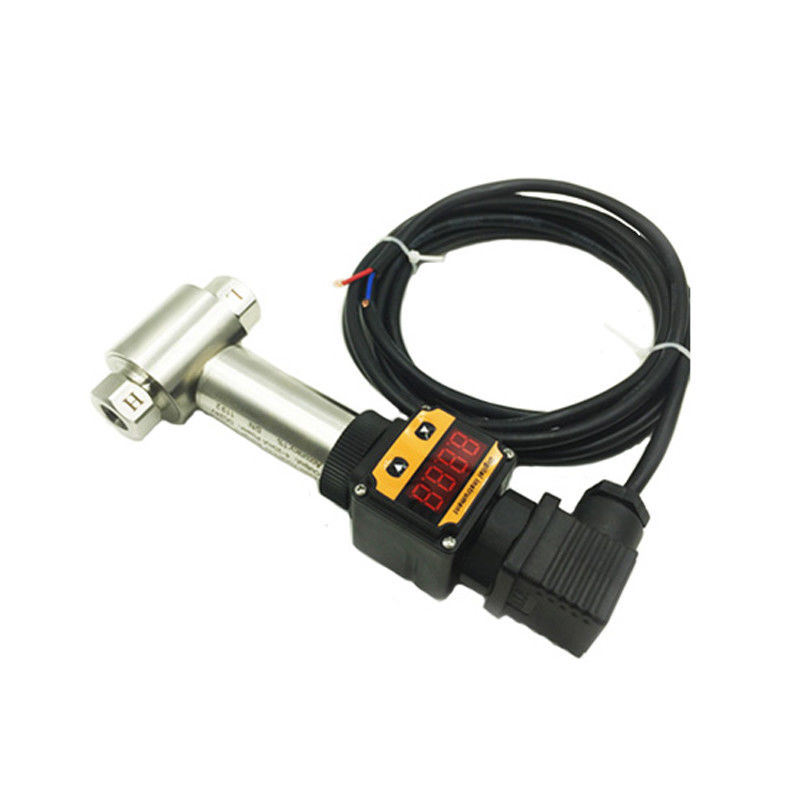

Detailed Images
Specification
| High accuracy current output differential display gas pressure sensor | |
| Measuring range | 0 ~ 10KPa…2MPa |
| Full scale range | 10~50KPa; 50~100KPa; 0.1~0.2MPa; 0.2~0.5MPa; 0.5~1MPa; 1~2MPa |
| Positive overload pressure | 250KPa; 300KPa; 0.4MPa; 1.0MPa; 2MPa; 4MPa |
| Negative overload pressure | 100KPa; 200KPa; 0.3MPa; 0.5MPa; 0.7MPa; 1MPa |
| Maximum static pressure | ≤20Mpa |
| Overall accuracy | ± 0.1%FS; ± 0.25%FS; ± 0.4%FS |
| Zero point temperature drifting | ±0.02%FS/℃ (typical); ±0.05%FS/℃ (maximum) |
| Sensitivity temperature drifting | ±0.02%FS/℃ (typical); ± 0.05%FS/℃ (maximum) |
| Influence of static pressure | ±0.05%FS/100KPa |
| Operating temperature | -10℃ ~ 80℃ |
| Compensating temperature | -10℃ ~ 50℃ |
| Long-term stability | ± 0.3%FS/year (≤200KPa); ± 0.1%FS/year (≥200KPa) |
| Range of power supplying | 12 ~ 36V DC (24V DC generally) |
| Signal output | 2-wire 4~20mA; s-wire 0/1-5V DC |
| Response time | ≤2ms |
| Insulation resistance | 100MΩ, 500V DC |
| Influence of vibration | Change ≤1% after vibration of 3gRMS30 ~ 2000Hz |
| Impact | Change ≤1% after impact of 100g for 10ms |
| Service life | 1×108 pressurized cycle |
| Medium | The gas or liquid compatible with material of structure |
| Explosion – proof marking | Ex ia II CT5 (intrinsically safe explosion – proof |
| Weight | Approx 0.35KG |
| Thermal lagging | ±0.1%FS (typical) |
| Enclosure protective degree | Plug Type (IP 65) Cable Type (IP 67) |
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
