| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | PS01 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD6.5~$25/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Output: | 4-20mA | Power Supply: | 12~36VDC |
|---|---|---|---|
| Accuracy: | ±0.1 %FS, ±0.25%FS | Pressure Range: | -100KPa~0~1KPa...20KPa...100MPa |
| Operating Temperature: | -40℃~85℃ | Load Resistance: | ≤(U-10)/0.02Ω |
| Type: | Pressure Senor | Warranty: | 12 Months |
| Product Name: | Cheap Oil Pressure Sensor / Pressure Transducer | Itme: | Piezoresistive Silicon Pressure Sensor |

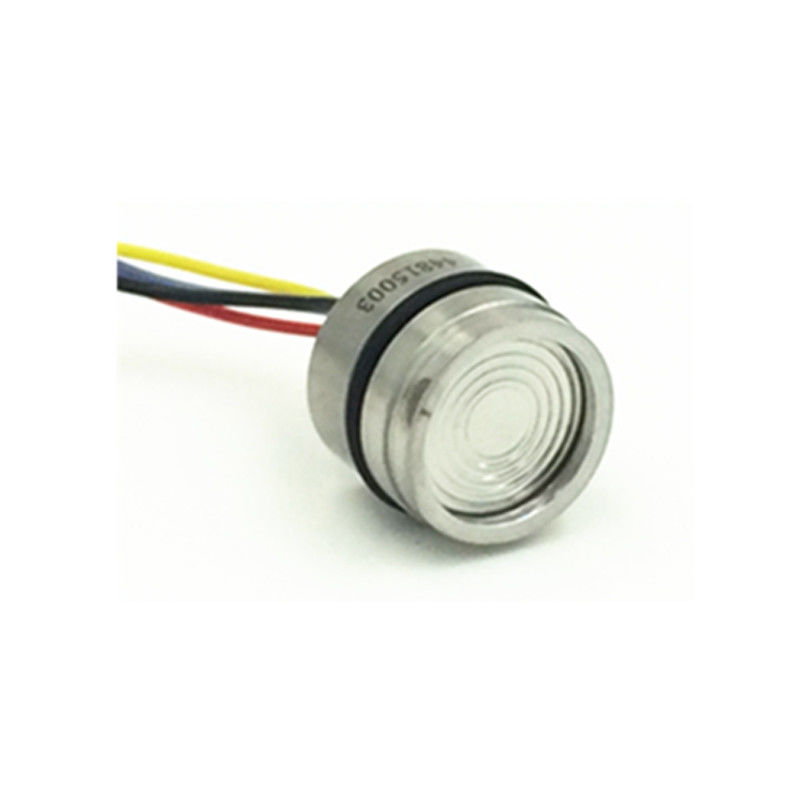

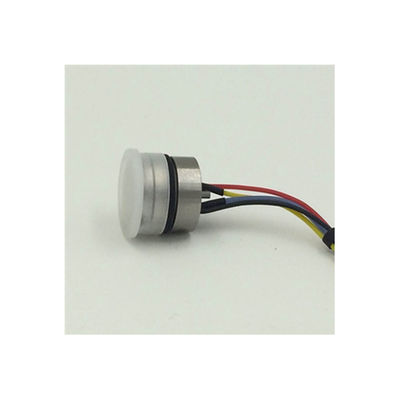

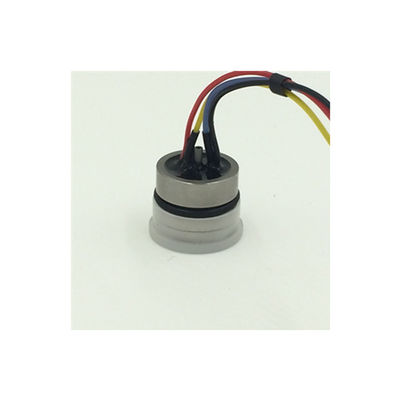

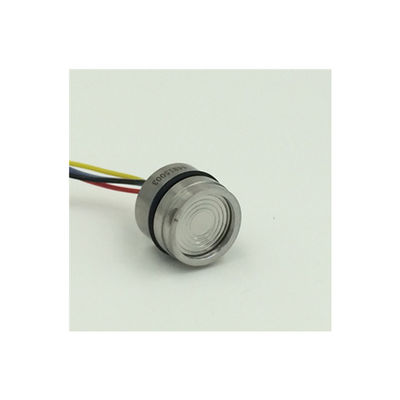

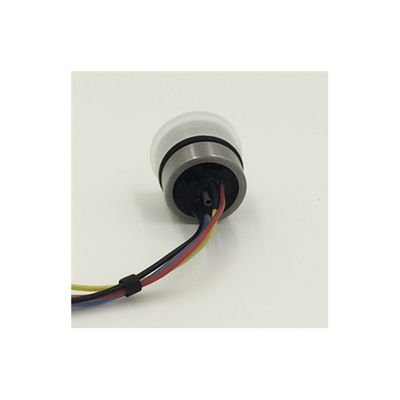

oil pressure sensor is piezoresistive silicon pressure sensor, the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. The sensingelement uses 316L stainless steel to packing and thick film circuit to do temperature compensation and zero correction. It has high reliability and stability
Supply:1.5mADC
Input impedance:3KΩ~6KΩ
Output impedance:2.5KΩ~6KΩ
Insulation resistance:≥100MΩ/50VDC
Insulation voltage:500VAC between the housing and electrical connection will not cause damage
Medium compatible: liquid, gas compatible with 316L stainless steel
cheap oil pressure sensor / pressure transducer:
Piezoresistive silicon sensing element
Full316LSS,Full Titanium or Hastelloy diaphragm
O-ring mount
High Accuracy and stability
Measurement pressure of gas and liquid Petroleum exploitation
Water supply,warm supply of town
Process control system
Aviation and navigation inspection
Hydraulic pressure
Automotive oil pressure, automotive brake system
Data 1:
| Parameters |
Range:0~10KPa,20KPa,35KPa,70KPa,100KPa,200KPa,350KPa,700KPa, 1MPa,2MPa, 3.5MPa , 7MPa, 10MPa, 20MPa, 35MPa, 60MPa, 70MPa, 80MPa, 90MPa, 100MPa |
|||
| Typ. | Max. | Units | ||
| Pressure Non-linearity |
±0.15 (0~2MPa) ±0.2 (3.5MPa ~100MPa) |
±0.3 | %F.S | |
| Pressure Repeatability and Hysteresis | 0.02 | 0.05 | %F.S | |
| Zero Output | 0±1 | 0±2 | mV | |
| Span Output | ≤20KPa | 50±10 | 50±30 | mV |
| ≥35 KPa | 100±10 | 100±30 | mV | |
| Temperature Error zero | ≤20KPa | ±1 | ±2 | %F.S |
| ≥35 KPa | ±0.5 | ±1 | %F.S | |
| Temperature Error-Span | ≤20KPa | ±1 | ±2 | %F.S |
| ≥35 KPa | ±0.5 | ±1.0 | %F.S | |
| Overload Pressure | 3X Rated range or 120MPa, whichever is less | Rated range | ||
| Operating Temperature Range | -20~80 | °C | ||
| Compensated Temperature Range | 0~70,0~50(Range≤20KPa) | °C | ||
| Storage Temperature Range | -40~125 | °C | ||
Established with 10 million capital in 2015, Xi'an Shelok Technology Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
