| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | WPT12 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD215~$825/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | GPRS Wireless Diaphragm Pressure Sensor Transmitter Price | Dimension: | 96* 136 * 90mm |
|---|---|---|---|
| Weight: | 350g | Wireless Network: | GPRS |
| Network Mode: | IPv4, TCP/UDP | Working Temperature: | -30 ° C ~ 80 ° C |
| Humidity: | 0-95%, Non-condensing | Range: | 0-50MPa |
| Stability: | <0.1%/year | Accuracy: | 0.2%, 0.5% |

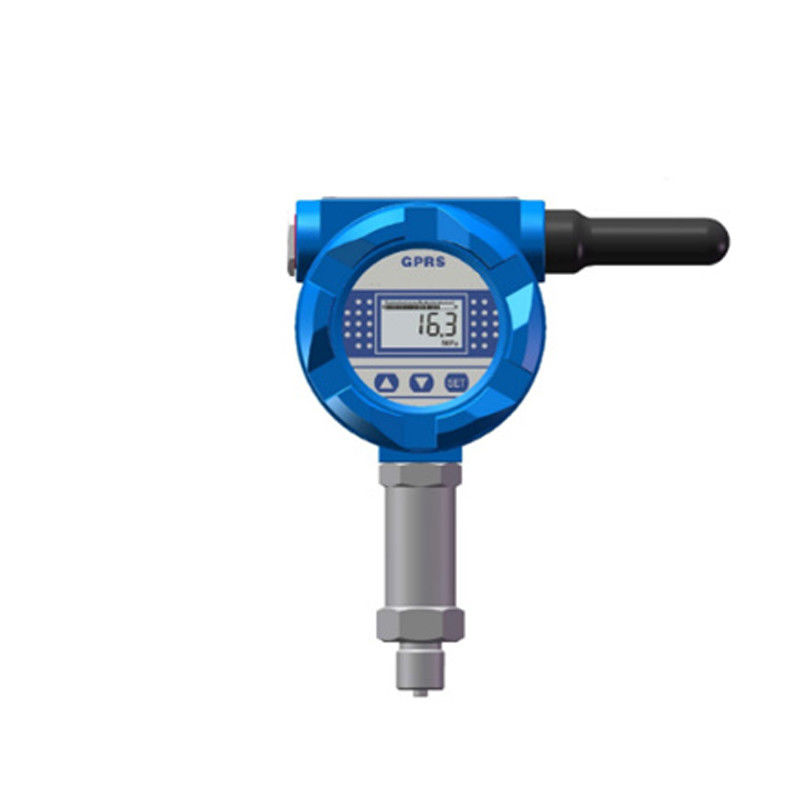

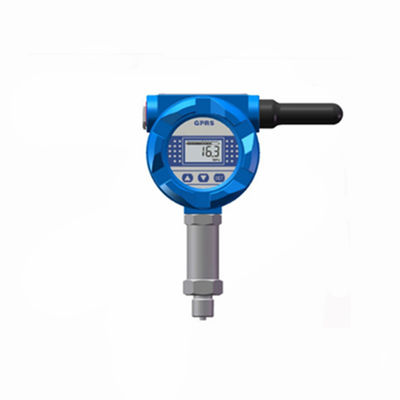

RS485 GPRS wireless diaphragm pressure sensor transmitter price
Description
The wireless pressure transmitter uses a diffused silicon pressure sensor based on the LORA wireless transmission pressure transmitter. The wireless pressure transmitter system is divided into a meter terminal transmitter and a collection terminal. The acquisition terminal can display the pressure in real time and is connected via a USB interface. The signal is transmitted to the computer, and our company also provides the customized service of the upper computer, which differentiates to meet the needs of customers.
Features
The instrument terminal is powered by battery and has low power consumption.
The speed at which data is collected can be set at the display terminal, which is convenient and reliable.
The wireless terminal can be displayed with or without display, and can be equipped with a mechanical display to meet the needs of differentiation.
Specification
| Transmission distance | Open horizon 3000 m (0.8kbps, +20dBm) | ||
| Penetration capability | vertical penetration of 10 floors (0.8kbps, +20dBm) | ||
| Working frequency | ISM free channel 410-460MHz, can be customized 315Mhz, 868MHz or 915MHz | ||
| Transmit power | 100mW (7-level adjustable, 3dB step) | ||
| UART interface | Multiple rate options (up to 115200bps, other higher rates can be customized) | ||
| High sensitivity | -132dBm@810bps ultra-high sensitivity Lora modulation | ||
| Voltage range | DC3.3V-5.5V, can be customized operating voltage operating range | ||
| Current consumption | 12.5mA (receive), 120mA (emission), low power standby mode 5.5uA (1.5 second wake-up cycle), for battery-powered applications. | ||
Detailed Images
Related products
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours.
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
