| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | FM118 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD8.5~$25/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | Air Micro 4-20mA Differential Pressure Transmitter | Output: | 0~5/10VDC And 4~20mA |
|---|---|---|---|
| Case Material: | Aluminium | Power Supply: | 12-36VDC |
| Accuracy: | ±1.0%FS | Application: | Air |
| Process Connection: | Ribbed 6.2 Mm | Pressure Type: | Differential |
| Pressure Range: | 0~±50Pa To 0~±10000Pa | Temp: | -10~+60℃ |

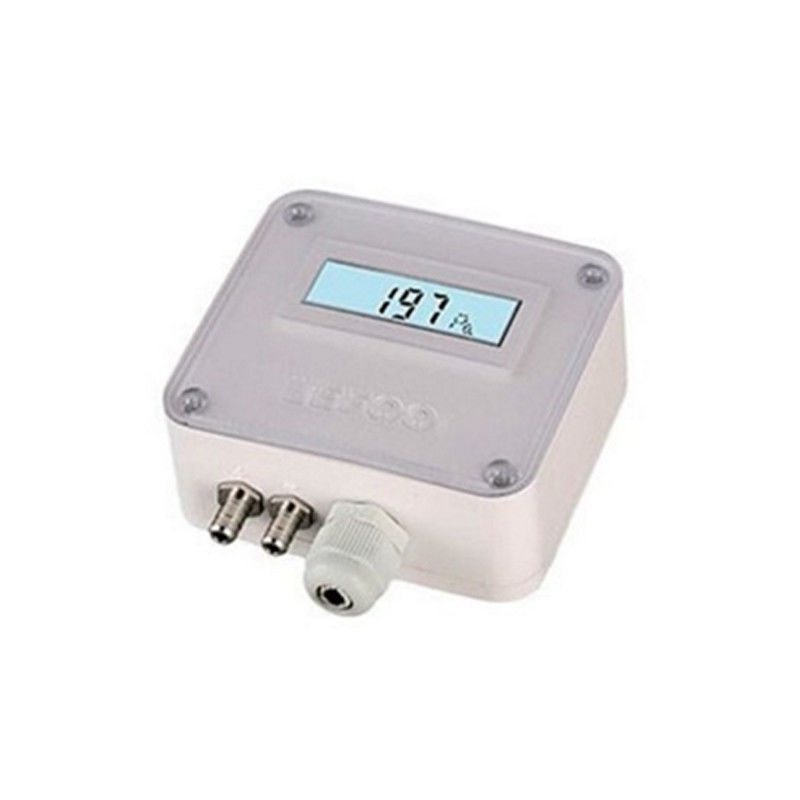

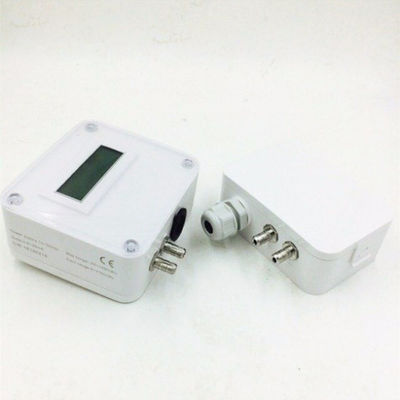

FM118 differential pressure transducer detect differential pressure or gauge pressure then convert this pressure difference to a proportional analogue output signal. Two output version are offered: Voltage output of 0~10VDC, and a current output 4-20mA. differential pressure transmitter ranges from 0～±50Pa to 0～±10000Pa. These transmitters boast of their outstanding performance,high quality and economical pricing.
