| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | 311 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD15~$65/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Accuracy: | 0.2%FS | Output: | Current, Voltage, Digital Signal Optional |
|---|---|---|---|
| Range: | 100KPa~60MPa Absolute Or Sealed Gauge Pressure | Pressure Connection: | G1/4, G1/2, 1/2NPT, 1/4NPT, M12 * 1.5, Etc. (can Be Customized) |
| Medium Temperature Range: | -30 ~ 100 °C | Sound Frequency: | Less 200HZ |
| Power Supply: | Between 12~36V | Product Name: | China Cheap Water Pressure Transmitter Sensor Price |

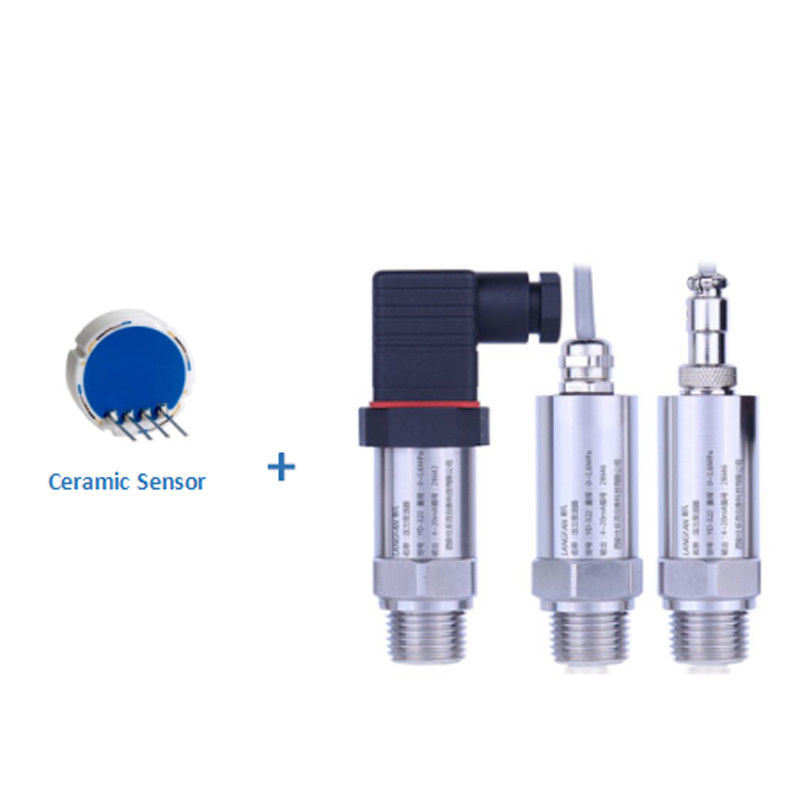

Description of China cheap water Pressure Transmitter sensor price
pressure sensor without liquid transmission, the pressure directly on the front surface of the ceramic diaphragm, so that the diaphragm has a small deformation, thick film resistance printed on the back of the ceramic diaphragm, connected into a Wheatstone bridge (closed bridge), due to the piezoresistive effect of the varistor, the bridge is generated with a high linearity proportional to the pressure, and the voltage signal is proportional to the excitation voltage. The voltage signal is converted to a 4~20 mA current signal through the modulation amplifier circuit.
Application of China cheap air Pressure Transmitter sensor price:
Widely used in process control, environmental control, hydraulic and pneumatic equipment, servo valves and drives, chemicals and chemical industry and medical instrumentation and many other fields.
Technical Data of China cheap air Pressure Transmitter sensor price:
Ordering guide
| SK-311 | Ceramic pressure transmitter | ||||
| Code | Electrical connection | ||||
| B | Hessman connection | ||||
| C | Direct outlet | ||||
| D | Air plug connector | ||||
| Code | Output signal | ||||
| S1 | 4-20mA | ||||
| S2 | 0-5V | ||||
| S3 | 0-10V | ||||
| S4 | 1-5V | ||||
| S5 | 0-5V | ||||
| S6 | 485 Digital signal(485RTU protocol) | ||||
| Code | Pressure Range | ||||
| See Table 1( Gauge pressure is G, Absolute pressure is A.) | |||||
| Code | Thread size | ||||
| M1 | M20*1.5 | ||||
| M2 | G1/2 | ||||
| M3 | G1/4 | ||||
| M4 | NPT1/2 | ||||
| M5 | NPT/4 | ||||
| M6 | M14*1.5 | ||||
| M7 | other | ||||
| SK-311 | B | S1 | G17 | M1 | Stand for 25MPA 4-20 mA transmitter |
Table 1:
| Pressure identification code(Gauge pressure is G, Absolute pressure is A.) | |||||||
| Code | Range | Code | Range | Code | Range | Code | Range |
| G4 | 100KPa | G5 | 160KPa | G6 | 200KPa | G7 | 250KPa |
| G8 | 400KPa | G9 | 600KPa | G10 | 1MPa | G11 | 1.6MPa |
| G12 | 2.5MPa | G13 | 4MPa | G14 | 6MPa | G15 | 10MPa |
| G16 | 16MPa | G17 | 25MPa | G18 | 40MPa | G19 | 60MPa |
| G21 | -100KPa | G22 | ±100KPa | G23 | Other | ||
Other service
Support OEM service
External dimension
Optional adapter
