| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD31 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD35~$55/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measure Range: | -100KPa ~ 0 ~ 10KPa ~ 100Mpa | Output: | 4 ~ 20mA, 1 ~ 5V, 0 ~ 5V |
|---|---|---|---|
| Accuracy: | ± 0.5% FS ± 0.25% FS | Thread: | G1/4, G1/2 1/4NPT, 1/2NPT And Others |
| Application Temp.: | -10 ℃ ~ 80 ℃ | Quality Guaranten: | IP65 |
| Customd Or Not: | Customed | Product Name: | Low Cost 4-20mA Air Water Oil Pressure Sensor |
Description of low cost 4-20mA air water oil Pressure Sensor:
low cost 4-20mA air water oil Pressure Sensor for sophisticated integrated stainless steel structure, built-in digital processing circuitry to convert the sensor millivolt signal into a standard voltage and current output, the structure forms, output forms. Compact pressure transmitter is small, light weight, easy to install and simple. After rigorous testing of the product components, semi-finished and finished products and aging screening, stable performance, widely used in industrial automation equipment, for a variety of complex environments with good adaptability.
Product has a mature mass production line, timely completion of quality and quantity of production tasks, and a complete after-sale service system installation.
technical parameters of low cost 4-20mA air water oil Pressure Sensor:
Pressure type: gauge pressure, absolute pressure,differential pressure
Power supply: 24VDC, 12VDC
Output signal: 4 ~ 20mA, 1 ~ 5V, 0 ~ 5V
Compensation temperature: -10 ~ 70 ℃
Working temperature: -20 ~ 85 ℃
Storage temperature: -40 ~ 125 ℃
Zero temperature drift: ± 1.5% FS
Sensitivity temperature drift: ± 1.5% FS
Overload pressure: 150% FS
Mechanical vibrations: 20g (20-5000HZ)
Accuracy: ± 0.5% FS ± 0.25% FS
Long-term stability: ± 0.1% FS / year ± 0.2% FS / year
Response time: ≤1ms (rising to 90% FS)
Load resistance: ≤ (U-15) /0.02Ω
Material: Stainless steel shell; internal sensor 316L
Media Compatibility: Compatible with 316L stainless steel various media
Protection: IP65

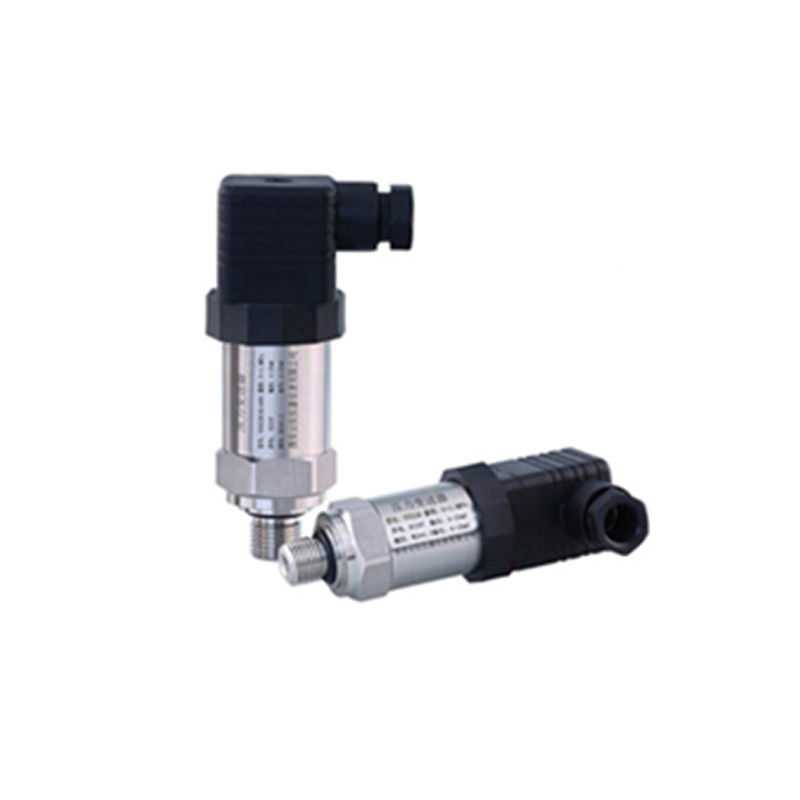

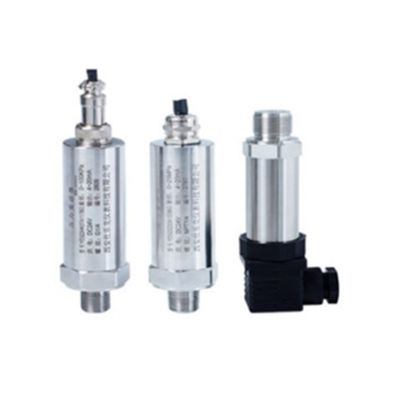

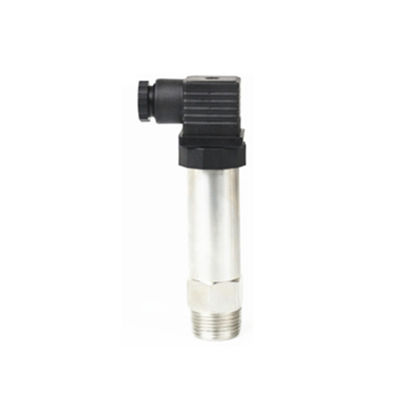

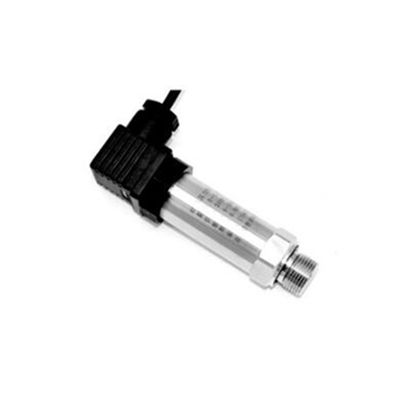

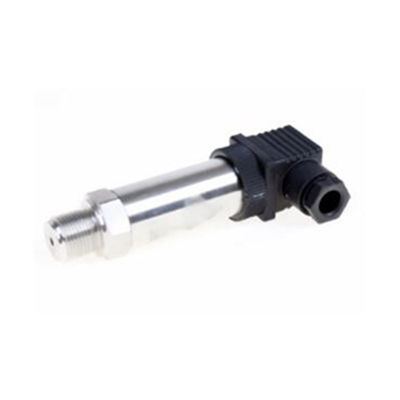

Detailed Images of low cost 4-20mA air water oil Pressure Sensor:
features of low cost 4-20mA air water oil Pressure Sensor:
• Compact, compact appearance
• Digital circuit processing
• Precision, high stability
• Strong anti-interference, good long-term stability
• Span a wide range, measure absolute pressure, gauge pressure.
• Small size, light weight, easy to install
applications of low cost 4-20mA air water oil Pressure Sensor:
The products with excellent reliability, flexibility and diversity, is widely used in pressure in petroleum, chemical, metallurgy, electric power, hydro and other industrial process measurement and control in the field.
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
