| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 19S |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD13~$18/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | Low Cost Piezoresistive Pressure Sensor | Output: | 0~10KPa,20KPa, 35 KPa.......100MPa |
|---|---|---|---|
| Non-linearity: | ±0.15 (0~2MPa) ±0.2 (3.5MPa ~100MPa) | Zero Output: | 0±1 |
| Mounted: | O-ring Mount | Performance: | High Accuracy And Stability |
| Wetted Material: | Full316LSS,Full Titanium Or Hastelloy Diaphragm | Element: | Piezoresistive Silicon Sensing Element |
| Output Impedance: | 2.5KΩ~6KΩ | Proof Pressure: | 3X Rated Range Or 120MPa, Whichever Is Less |

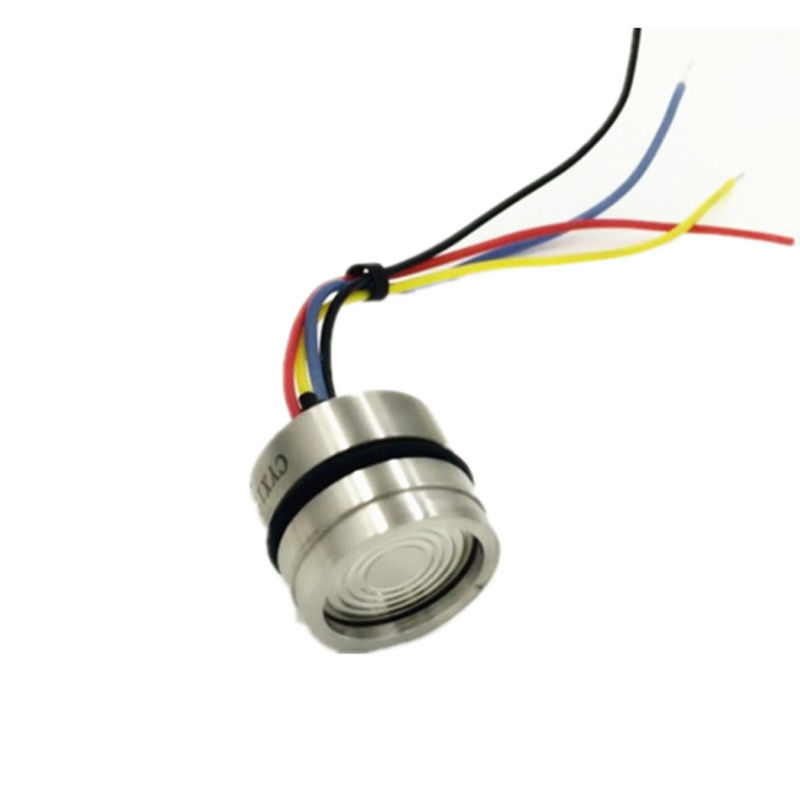

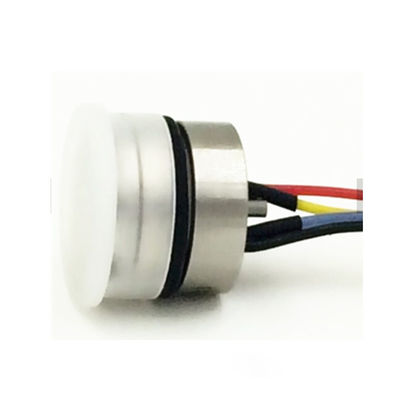

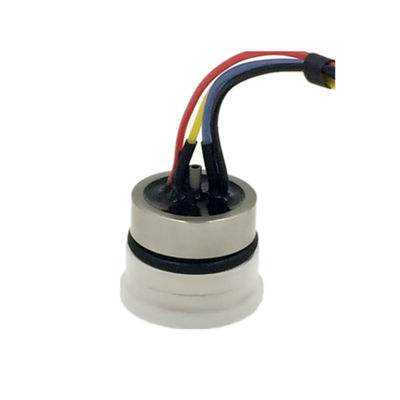

Low cost piezoresistive pressure sensor, the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. The sensing element uses 316L stainless steel to packing and thick film circuit to do temperature compensation and zero correction. It has high reliability and stability.
