| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 3351 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD55~$75/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | Capacitive Differential Pressure Sensor Water | Output: | 0~10KPa,20KPa, 35 KPa.......40MPa |
|---|---|---|---|
| Non-linearity: | ±0.15 (0~2MPa) ±0.2 (3.5MPa ~100MPa) | Temperature: | (-40~+104)℃ |
| Mounted: | O-ring Mount | Accuracy: | ±0.075%,0.1% 0.2% 0.5% |
| Wetted Material: | Full316LSS,Full Titanium Or Hastelloy Diaphragm | Element: | Capacitive Type Sensor |
| Stability: | 0.2% | Temperature Influence: | ±0.25%/10℃ |

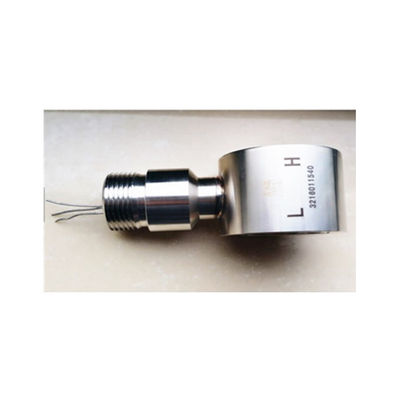

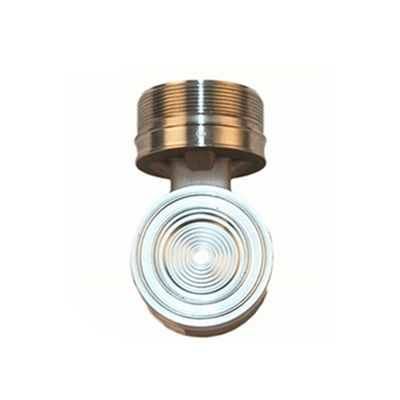

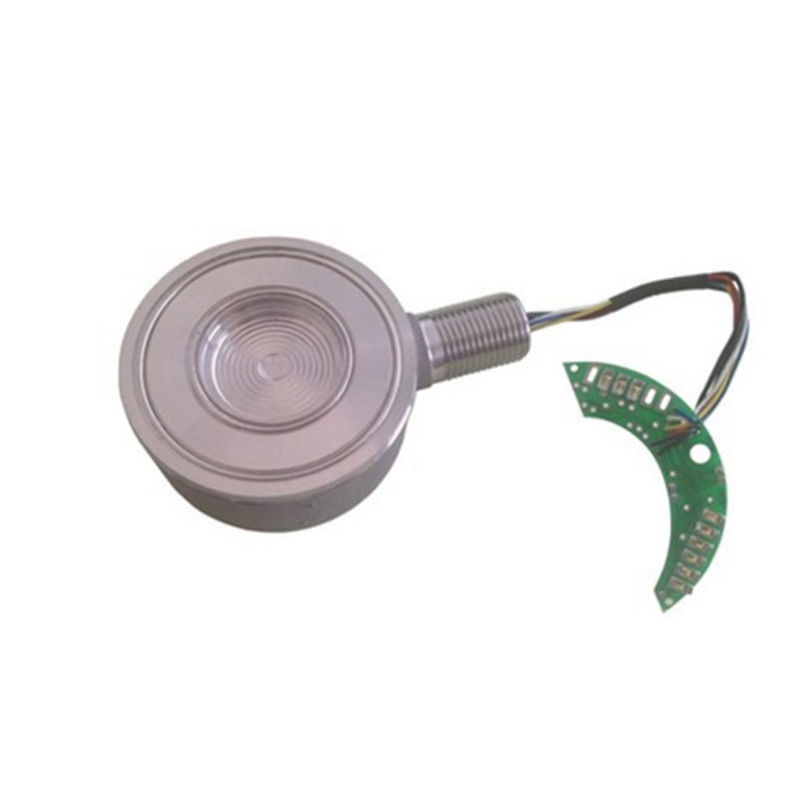

Metal capacitive pressure sensor core, which is unique in the package and integrated in a sealed chamber, which provides a real time temperature parameter for the digital compensation circuit of the sensor. Therefore, the film can be accurately compensated for temperature. In this way, the transmitter used 3351 capsule, the accuracy level of which can usually reach 0.1. Type 3351 membrane has all the advantages of type 1151 sensor. If the combination of the digital circuit with the internal package, it can provide the 4-20mA output signal, HART protocol optional. Widely used in chemical, water and electricity, metallurgy and other industrial areas of the capacitive transmitter, which is the core part of the 3351 Series Capsule.
Use of advanced customized anaerobic sintering furnace, sensor filled pipe and glass sintering with atmospheric isolation, filled pipe does not produce oxide layer.
Adopt computer control positioning and tensioning technology, make the center diaphragm accurate positioning, moderate tension, accuracy is greatly improved.
Adopt imported high quality material and the center diaphragm filled with silicone oil.
