| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MNS |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD10.5~$25/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Ceramic Piezoresistive Capacitive Diaphragm 0-5v Pressure Sensor | Pressure Range: | 0~1bar 0~60bar |
|---|---|---|---|
| Accuracy: | 0.5%FS;1%FS;1.5%FS | Nonlinear: | 0.02%FS |
| Output Siginal: | 0~5V, 0.5~4.5V, 1~5V, 4~20mA | Supply Voltage: | 5V DC, 24(12~36V)DC |
| Operating Temperature: | -40℃~125℃ | Overload: | 150%FS |
| Dielectric Material: | 316SS | Pressure Connection: | 1/4NPT, 1/8-27NPT, 7/16-20UNF Custom |

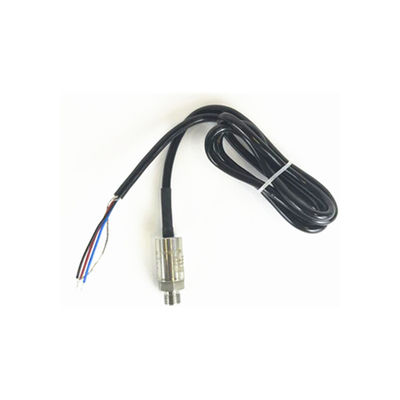

Ceramic piezoresistive capacitive diaphragm 0-5v low cost oil car pressure sensor
Description
CPS series pressure transmitter Integration with a piezoresistive ceramic pressure sensor, signal processing circuit imported from Germany dedicated chip, signal conditioning circuit reliability, redundancy and thermal design to ensure product reliability and consistency. Cycle fatigue pressures up to 10 million times.
Features
* using integrated piezoresistive ceramic pressure sensor
* signal processing circuit ASIC imported from Germany
* signal conditioning circuit reliability redundant design and thermal design
* cycle fatigue pressures up to 10 million times
Specification
| Ceramic Micro Liquid High Temperature Pressure Sensors | |
| Pressure Range | 0~1bar 0~60bar |
| Accuracy | 0.5%FS;1%FS;1.5%FS |
| Nonlinear | 0.02%FS |
| Reliability | 0.05%FS |
| Output Signal | 0~5V, 0.5~4.5V, 1~5V, 4~20mA |
| Supply Voltage | 5V DC, 24(12~36V)DC |
| Operating Temperature | -40℃~125℃ |
| Compensated Temperature | -10℃~70℃ |
| Overload | 150%FS |
| Dielectric Material | 316SS |
| Electrical Connection | 3 Pin Packard Connector |
| Pressure Connection | 1/4NPT, 1/8-27NPT, 7/16-20UNF Custom |
Applications
* Automotive Oil Pressure
* Car brake pressure
* Motorized off-road equipment and industrial machinery

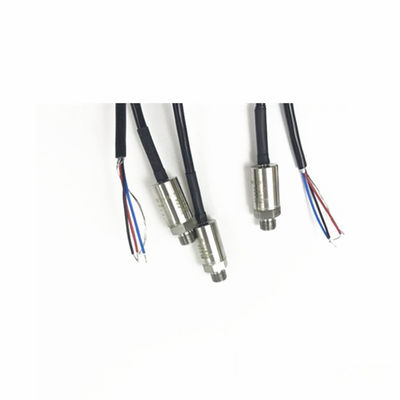

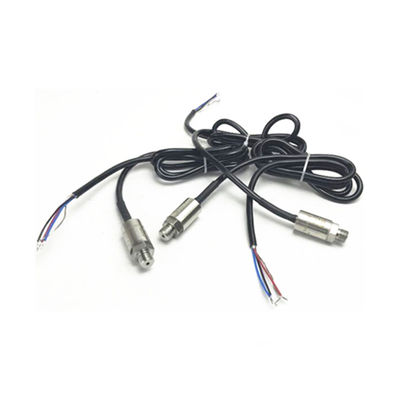

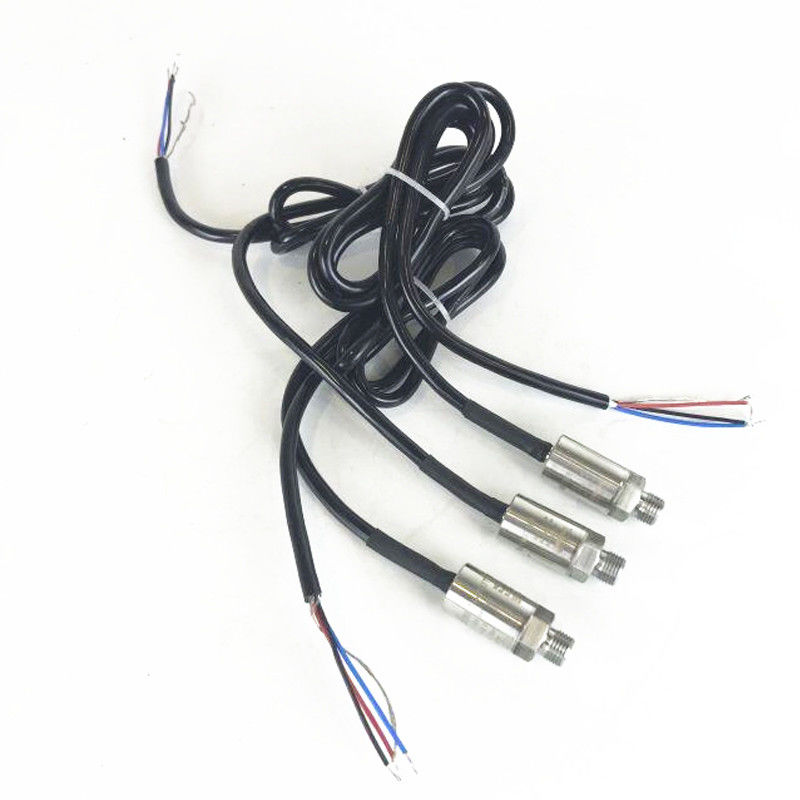

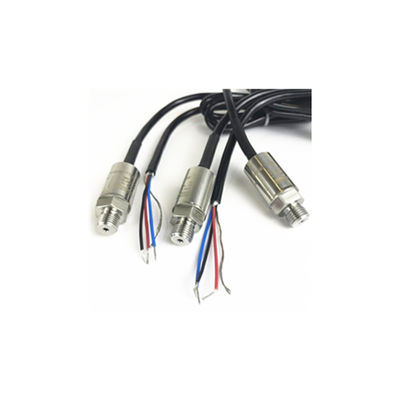

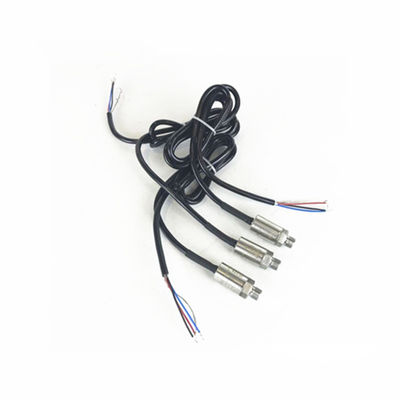

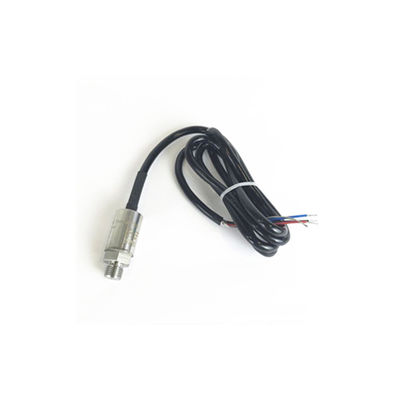

Detailed Images
