| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | WPT112 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD450~$825/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | GPRS Wirelessmodbus Protocol Pressure Sensor Transmitter 4-20 | Dimension: | 96* 136 * 90mm |
|---|---|---|---|
| Weight: | 350g | Wireless Network: | GPRS |
| Network Mode: | IPv4, TCP/UDP | Working Temperature: | -30 ° C ~ 80 ° C |
| Humidity: | 0-95%, Non-condensing | Range: | 0-50MPa |
| Stability: | <0.1%/year | Accuracy: | 0.2%, 0.5% |
11
Description

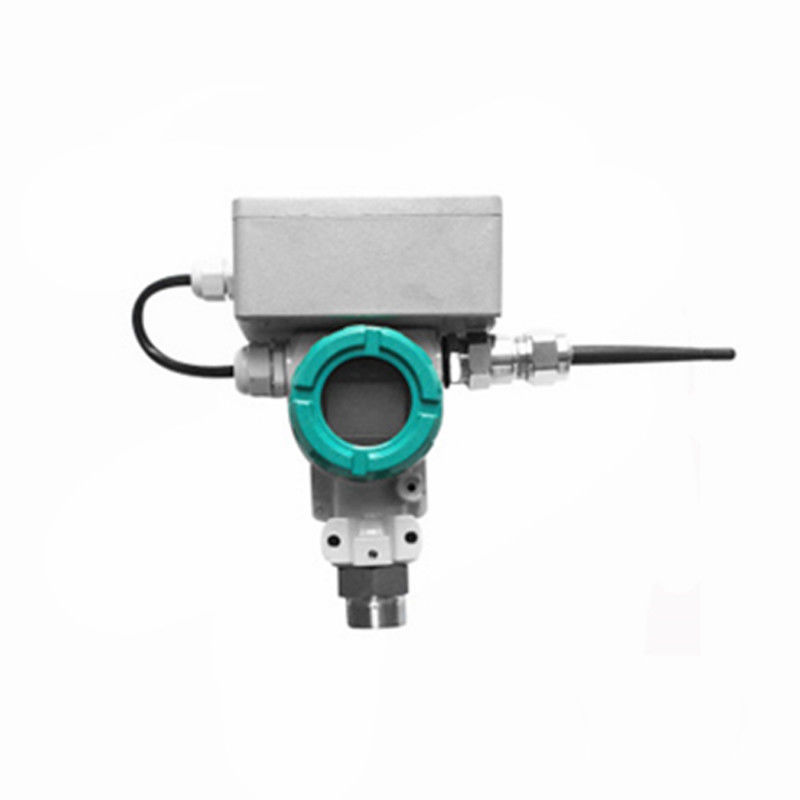

WPT12 pressure transmitter is a new industrial grade transmitter with GPRS wireless network as the core and wireless transmission of pressure data. It supports integrated large-capacity disposable 3.6V lithium battery pack or external power supply; internal integration and high reliability GPRS network communication module, the wireless transmission of pressure data, makes up for the shortcomings of traditional pressure transmitters that can only be transmitted by wired (RS485/232) data; it has simple construction, and it is ready for use and ready for use., you can replace the battery by cycle.
Features
WPT12 pressure transmitter adopts industrial explosion-proof housing. In the sensor processing, diaphragm-type diffusion silicon core is used to perform multi-point temperature compensation to achieve stable pressure data acquisition and ensure the reliability and accuracy of pressure data.
WPT12 With a variety of ranges, with local digital pressure display head: zero point, range debugging convenient; reverse polarity protection and current limiting protection; anti-lightning, impact resistance; intrinsically safe explosion-proof; small size, beautiful appearance, cost-effective; high Accuracy, high stability and high reliability.
Collect and display pressure values in real time
Factory-assembled large-capacity lithium battery
GPRS wireless data bidirectional transmission
Provide additional RS485 serial port
Support Modbus communication protocol
Support automatic heartbeat, staying permanent online
Support for graphical parameter configuration
High-quality diffused silicon core, digital compensation, high precision 4-digital
LED/LCD digital display, convenient and intuitive
Range settings and adjustment buttons on the panel
Impact resistant, vibration resistant, suitable for industrial sites
Support multiple data centers, automatic switching
Compound watchdog technology, never crash
EMC anti-jamming design for electromagnetic harsh environment
Adapt to low temperature and high temperature working environment
Provide flexible DCS, SCADA, configuration software OPC interface
Specification
| Pressure range | 0-50MPa | Stability | <0.1%/year |
| Stablility | ±0.1%URL/year | Accuracy | 0.2%, 0.5% |
| Wireless Network | GPRS Network | Network mode | IPv4, TCP/UDP |
| Working temperature | -30 ~ 80 ° C | Humidity | 0-95%, non-condensing |
| Power supply voltage | DC5~24V/2A | Power supply battery | DC3.6V/54ah large capacity lithium battery pack |
| Power Consumption: | 100mA/3.6VDC;3mA/3.6VDC | User data interface | RS485 serial communication interface |
| Antenna interface | 50Ω/SMA antenna interface | Baud rate | 1200~115200 bps |
