| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | YD32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD45~$65/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | LCD Display Digital Water Piezoelectric Pressure Sensor Cost | Accuracy: | 0.3%FS/0.5%FS |
|---|---|---|---|
| Output: | 4~20mA, 1~5V, 0~20mA Etc. | Range: | 0~100KPa...35MPa |
| Material: | 316L SS | Temperature Drift: | Less ±0.08FS/°C(4~20mA Output) |
| Response Frequency: | Less 200HZ | Protect Class: | IP65 |
| Operating Temperature: | -45~85℃ | Diaphragm Material: | 316L SS |

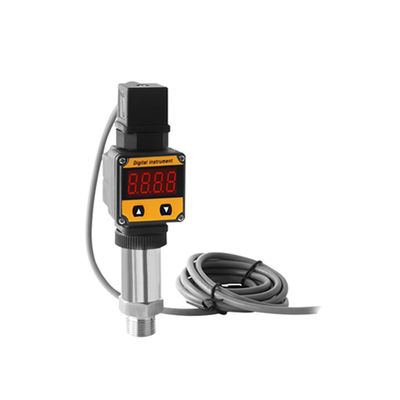

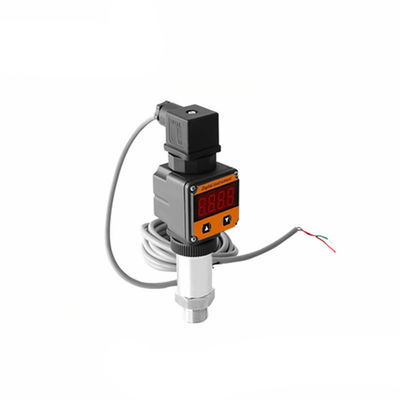

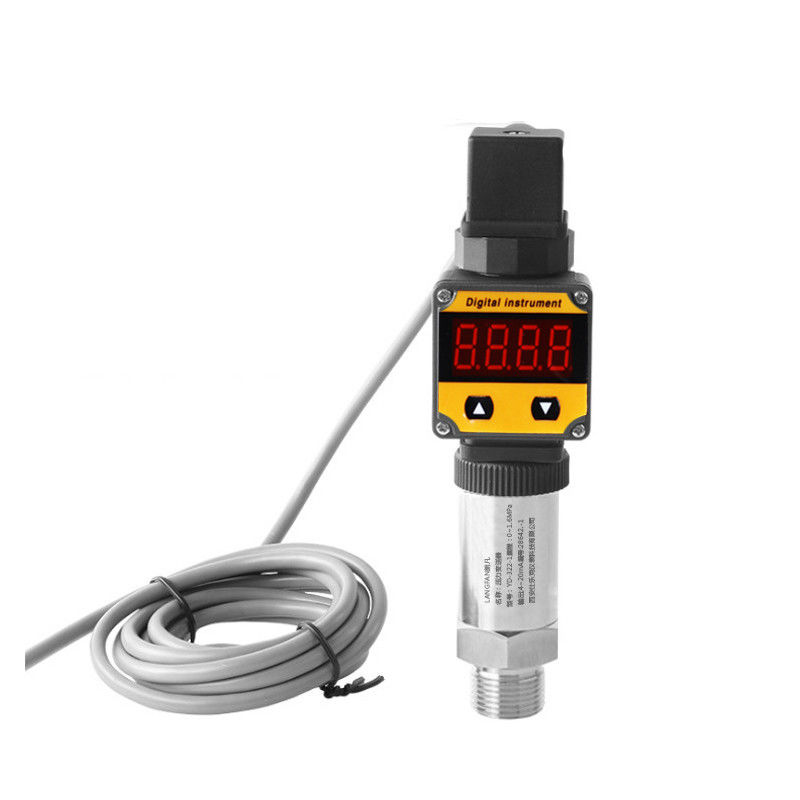

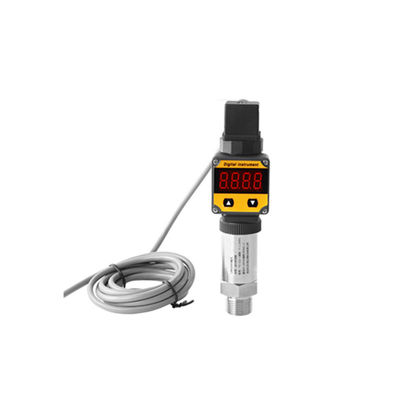

LCD display digital water piezoelectric pressure sensor cost
Description
Applications
Widely used for weak corrosive liquid and gas pressure measurement .
Specification
Selection Guide
| YD32 | |||||||
| Pressure range | -0.1...0~0.01...100MPa | ||||||
| (0-X)KP Or MPa | X: Measurement range | ||||||
| Code | Power supply | ||||||
| D1 | 24VDC | ||||||
| D2 | 5VDC | ||||||
| D3 | Others | ||||||
| Code | Output signal | ||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||
| S4 | 0~10mADC | ||||||
| Code | Pressure Port | ||||||
| J1 | M20×1.5 male | ||||||
| J2 | G1/2 male | ||||||
| J3 | G1/4 male | ||||||
| J4 | 7/16-20UNF Female | ||||||
| J5 | Others(eg: OD 50.4mm flange) | ||||||
| Code | Electrical connection | ||||||
| B1 | Big Din | ||||||
| B2 | PG7 PIN | ||||||
| B3 | Cable with 1.5 meter | ||||||
| B4 | 2088 industry housing | ||||||
| B5 | 2088 housing with LED | ||||||
| B6 | others | ||||||
| Code | Pressure type | ||||||
| G | Gauge | ||||||
| A | Absolute pressure | ||||||
| S | Sealed pressure | ||||||
Note:
1. Media must compatible with wetted part.
2.To ensure the products can working reliable, we suggest that customer install lightning protection device and make sure products & power are earthed.
3. Special requirement ,such as strong shock, moment vibration, strong electromagnetism, radio frequency interference, please consult us.
External Dimension
Electrical connection diagram
Detailed Images
