| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | YC19D |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD6~$15/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | 19mm Diffused Silicon Differential Pressure Sensor Mat | Non-linearity: | ±0.15%F.S (0~2MPa), ±0.2%F.S (3.5MPa ~100MPa) |
|---|---|---|---|
| Repeatability And Hysteresis: | 0.02-0.05%F.S | Span Output: | 50±10mV(≤20KPa),100±10mV(≥35 KPa) |
| Temperature Error-Zero: | ±1%F.S(≤20KPa) ,±0.5%F.S(≥35 KPa) | Temperature Error-Span: | ±1%F.S(≤20KPa) ,±0.5%F.S(≥35 KPa) |
| Proof Pressure: | 3X Rated Range Or 120MPa | Operating Temperature Range: | -20~80℃ |
| Compensated Temperature Range: | 0~70℃ , 0~50℃ (Range≤20KPa) | Storage Temperature Range: | -40~125℃ |

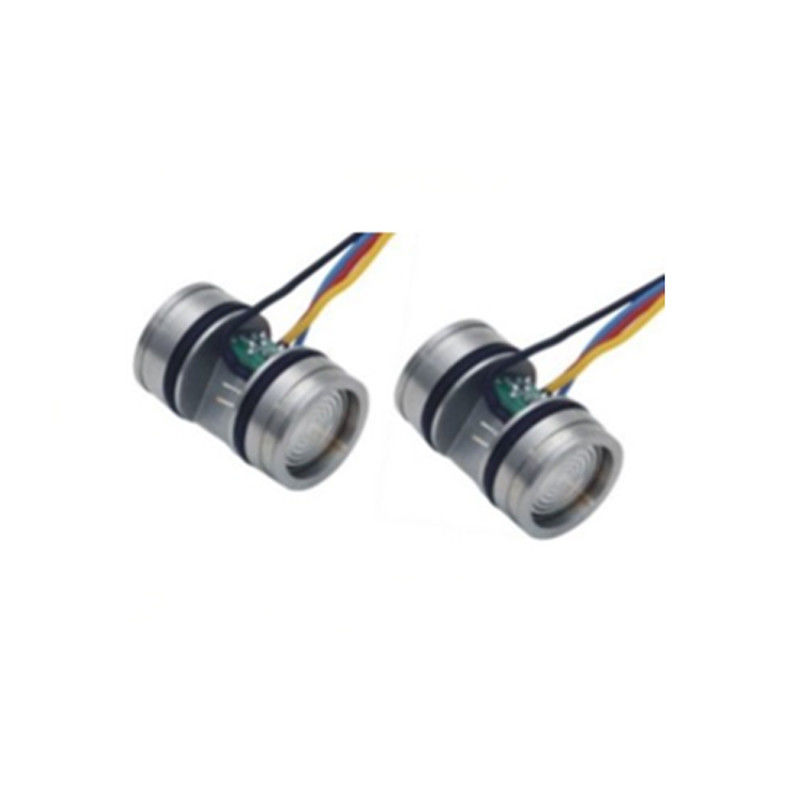

19mm diffused silicon differential pressure sensor mat
Description
YC19D is piezoresistive silicon differential pressure sensor, the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. It has high stability, good reliability ,high static pressure. It is widely used in field which measure differential pressure.
Specification
Electrical Data
Supply :1.5mADC
Input impedance:3KΩ~6KΩ
Output impedance:2.5KΩ~6KΩ
Insulation resistance:≥100MΩ/50VDC
Insulation voltage:500VAC between the housing and electrical connection will not cause damage
Medium compatible: liquid, gas compatible with 316L stainless steel
Detailed Images
Applications
Measurement pressure of gas and liquid
Environmental control
Process control
Hydraulic and pneumatic equipment
Chemical products and chemical industry
Features
Wide measurement range: 0~20KPa~2Mpa
Full 316L.S.S
316L stainless steel diaphragm
High static pressure
High accuracy and stability
