| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 2088 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD145~$195/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | Gauge Pressure Transmitter Water Pressure Sensor | Output: | 4-20mA(2 Wires) |
|---|---|---|---|
| Accuracy: | 0.5%, 1% | Power Supply: | 12-36VDC |
| Hart Protocol: | Optional | Application: | Air, Water, Oil |
| Process Connection: | M20X1.5, G1/4, 1/4NPT | Pressure Type: | Gauge/absolute/vacuum |
| Pressure Range: | 0-1bar...100MPa | Sensor Type: | 316L |
Gauge pressure transmitter water pressure sensor
Description
This pressure transmitter uses piezoresistive silicon oil-filled sensor as the signal measuring element. Signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. All the products through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance. Have strong anti-interference performance, can working in harsh environment conditions for long term.
Specification
| Measurement Range | -0.1….0~0.01...~100MPa |
| Proof pressure | ≤1.5X rated pressure or 110MPa which ever is less |
| Pressure type | Gauge, absolute ,sealed gauge |
| Accuracy | ±0.25%(Typical) ±0.5%(Max.) |
| Long term stability | ±0.2%F.S/year |
| OperatingTemperatureRange | -20℃~80℃ |
| Storage TemperatureRange | -40℃~120℃ |
| Power supply | 15~30VDC |
| Output signal | 4~20mA 0~10/20mA 0/1~5VDC |
| Pressure port | M20×1.5 or customize |
| material | 1Cr18Ni9Ti stainless steel |
| Diaphragm material | 316L |
| O-ring | Fluororubber |
| Electrical housing | Cast aluminium alloy(2088housing) |
| Insulation resistance | 100MΩ,100VDC |
| Protection | IP65 |

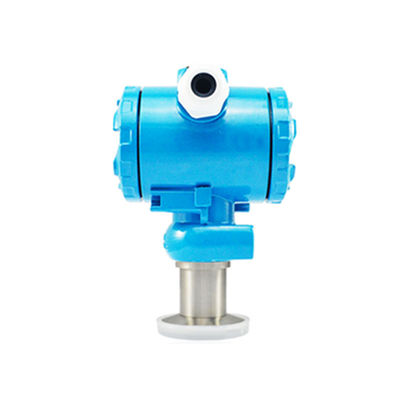

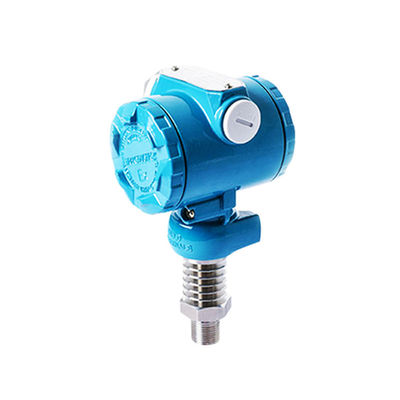

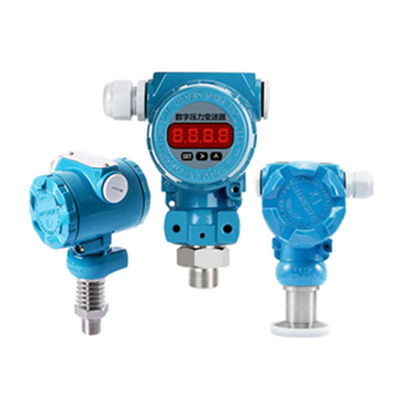

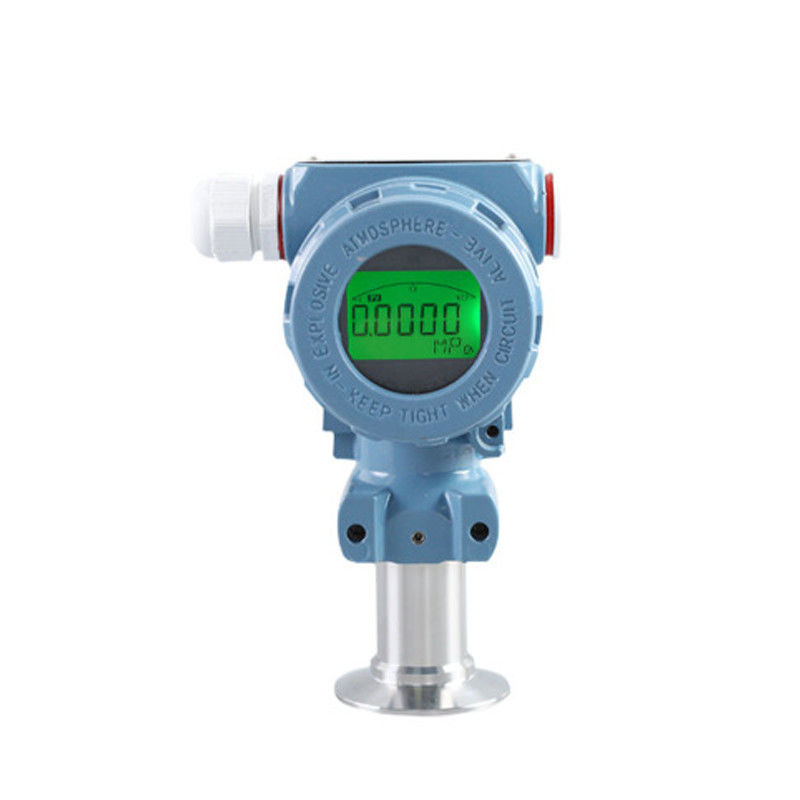

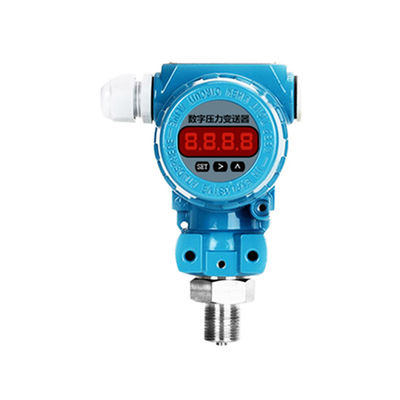

Detailed Images
Features
Wide range, cast aluminium & explosion-proof housing,
various pressure port
Various output signal, scene adjustable
Multiple protect, strong anti-interference capability.
Marking: ExiaIICT6.
Applications
Compatible with 316LSS,noncorrosive gases & liquids.
Special use in harsh environment conditions.
