| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD32A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD15~$35/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

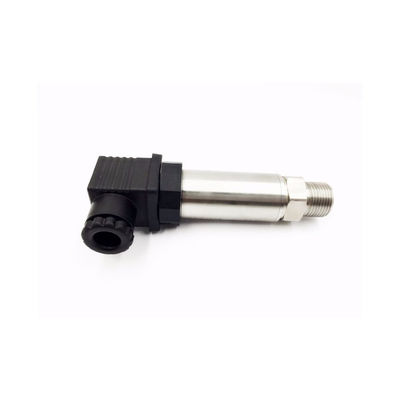

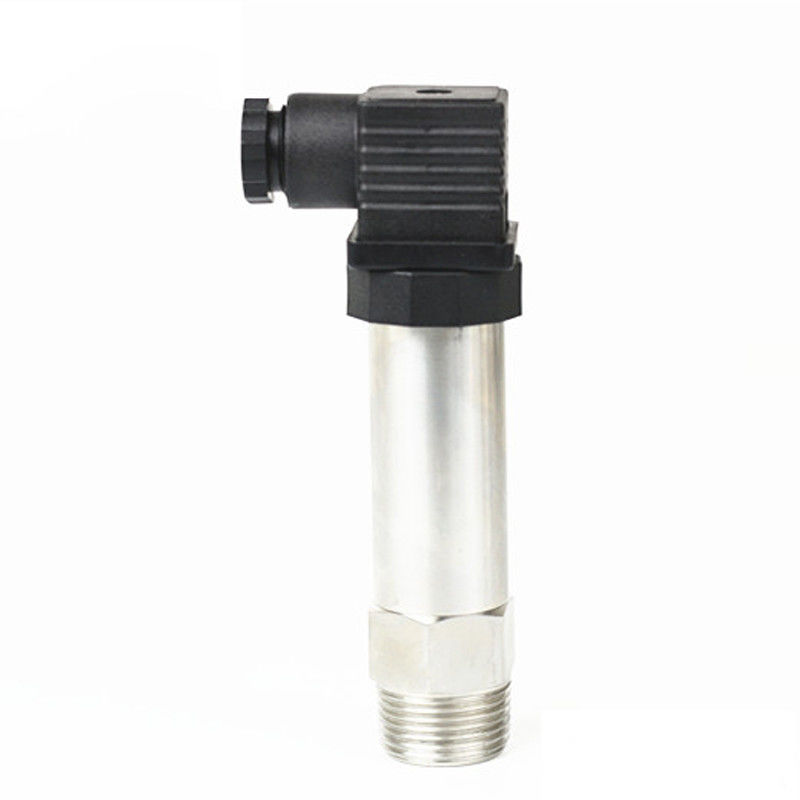

| Item: | Water Pressure Sensor / Ceramic Pressure Transmitter | Output: | 4-20mA(2 Wires)/0-5V/0-10V/0.5-4.5V |
|---|---|---|---|
| Accuracy: | 0.5%, 1% | Power Supply: | 12-36VDC |
| Hart Protocol: | Optional | Application: | Air, Water, Oil |
| Process Connection: | M20X1.5, G1/4, 1/4NPT | Pressure Type: | Gauge |
| Pressure Range: | 0-1bar...16MPa | Sensor Type: | Ceramic |
Ceramic pressure sensor without liquid transmission, the pressure directly on the front surface of the ceramic diaphragm, so that the diaphragm has a small deformation, thick film resistance printed on the back of the ceramic diaphragm, connected into a Wheatstone bridge (closed bridge), due to the piezoresistive effect of the varistor, the bridge is generated with a high linearity proportional to the pressure, and the voltage signal is proportional to the excitation voltage. The voltage signal is converted to a 4-20 mA current signal through the modulation amplifier circuit.
