| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SED1 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD45~$75/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measure Range: | 0-100mpa | Accuracy: | 0.25% FS, 0.5% FS, 1.0% FS |
|---|---|---|---|
| Output Signal: | 4-20mA | Supply: | 24DCV (9 ~ 36DCV) |
| Connection: | M20*1.5 | Site Display: | LED Three Half 0000 - 1999 |

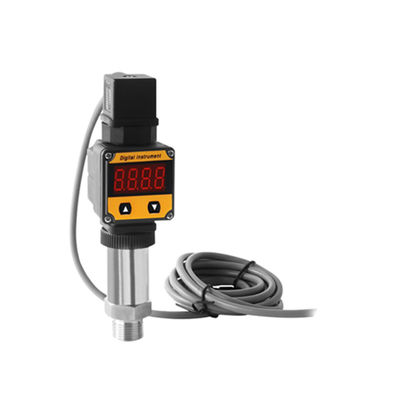

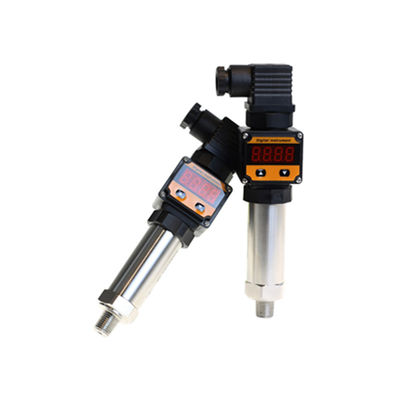

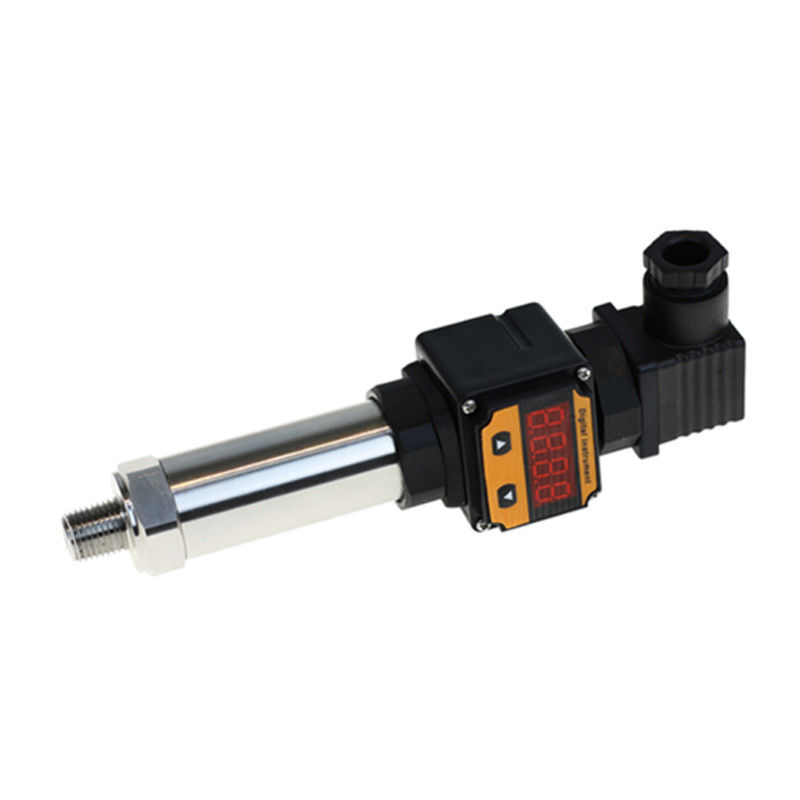

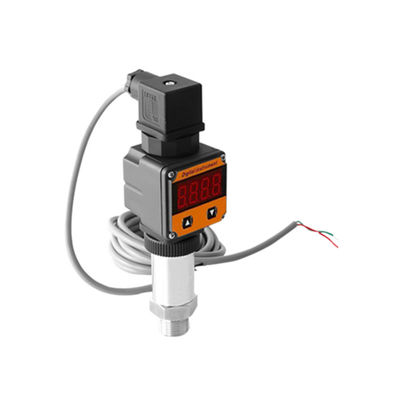

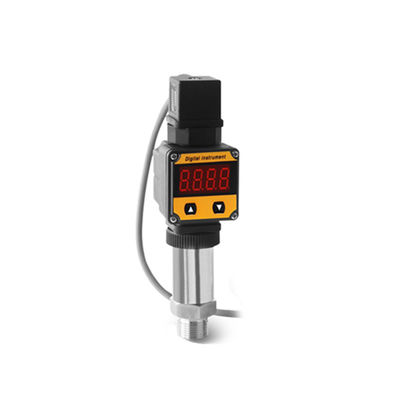

| Product Name: | Smart Water Pressure Sensor Pressure Transducer With LED Display |
Description of smart water pressure sensor pressure transducer with LED display
digital pressure transducer is design for the site with bad environment. Adopt silicon piezoresistive sensor, micro amplifier processing circuit. With the characteristic of vibration resistance and good impact resistance, high precision, stability. Widely used in pressure and level measurement and process control of petroleum, chemical and metallurgical, food industries.
Features of smart water pressure sensor pressure transducer with LED display
Stainless steel high strength shape structure
Shape structure diversification, can be customized
Strong anti-interference, good long-term stability
LED, LCD header display can be selected
Parameters of smart water pressure sensor pressure transducer with LED display
Measure Range: -0.1-0-60MPa
Accuracy: ±0.2%FS, ±0.5%FS
Output: 4-20mADC, 1-5VDC
Power supply: 12-36VDC, standard 24VDC
Overload pressure: ≤150%FS
Long stability: ≤±0.2%FS/Year
Temperature compensation: -30~80℃
Medium temp: -30-80℃
Environment Temp: -30-80℃
Temperature drift: ±0.03%FS/℃
Ambient humidity: ≤85%RH
Housing material: Stainless steel structure
Medium: The gas, liquid without corrosion on stainless steel liquid
Detailed Images
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
