| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | HTPS124 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD155~$215/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measure Range: | -100KPa~0~1KPa...20KPa...100MPa | Accuracy: | ±0.1 %FS, ±0.25%FS |
|---|---|---|---|
| Thread: | G1/4, G1/2 1/4NPT, 1/2NPT Etc | Output: | 0-5v |
| Operating Temp. Range: | -40℃~85 | Material: | 316L |
| Label: | Customized Available | Power Supply: | 12~36VDC |
| Load Resistance: | ≤(U-10)/0.02Ω | Product Name: | Ottom Price Ceramic Pressure Sensor With Stainless Steel Shell |
2018 Hot Sale Ceramic Pressure Sensor Cost, Oil Pressure Sensor
Description
Ceramic pressure sensor without liquid transmission, the pressure directly on the front surface of the ceramic diaphragm, so that the diaphragm has a small deformation, thick film resistance printed on the back of the ceramic diaphragm, connected into a Wheatstone bridge (closed bridge), due to the piezoresistive effect of the varistor, the bridge is generated with a high linearity proportional to the pressure, and the voltage signal is proportional to the excitation voltage. The voltage signal is converted to a 4~20 mA current signal through the modulation amplifier circuit.

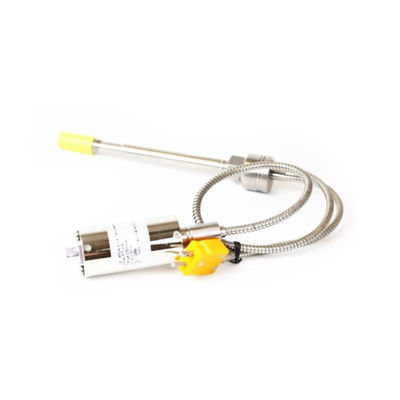

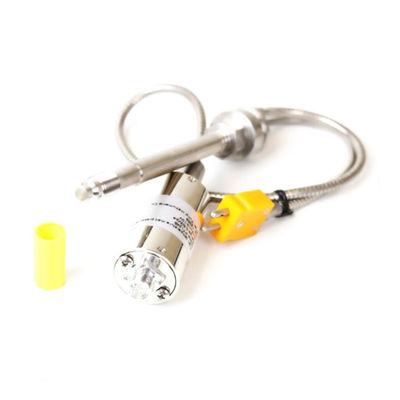

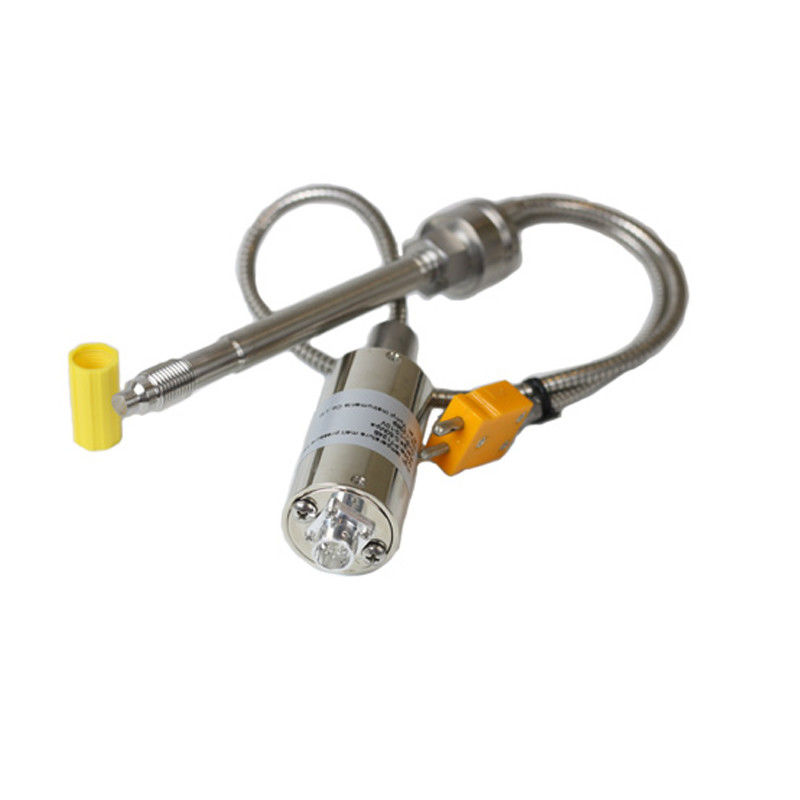

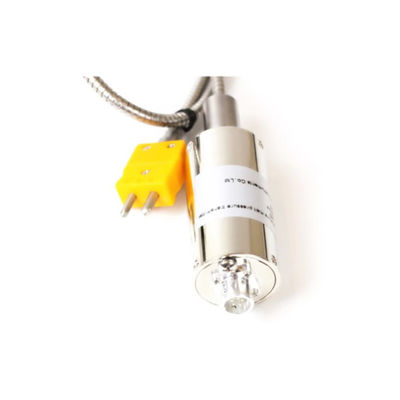

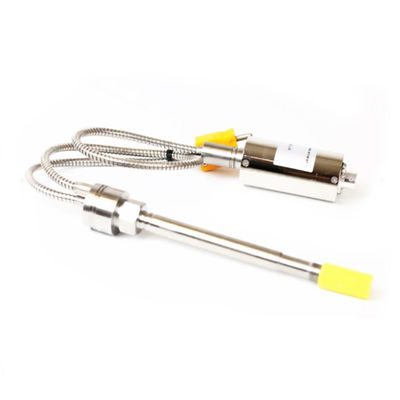

Detailed Images
Specification
| Technical indicators | |
| Media | Oil, water, gas and compatible with 316L stainless steel |
| Pressure | Ceramic type:0.1-40Mpa Diffused silicon type: -0.1MPa ~ 0 ~ 100MPa |
| Overload | 2 times (10MPa or less); 1.5 times (10MPa or more) |
| Accuracy | ± 0.1% FS ,± 0.2% FS , ± 0.5% FS,± 1% FS |
| Nonlinear | <± 0.2% FS |
| Hysteresis & repeatability | ≤ ± 0.1% FS |
| Long-term stability | ≤ ± 0.1% FS / year |
| Zero drift | ≤ ± 0.02% FS / ℃ |
| Response time | ≤500ms (standard) |
| Electrical parameters | |
| Output | Current 2-wire: 4 ~ 20mA Voltage 3-wire : 0 ~ 5V; 0 ~ 10V; 1 ~ 5V; 1 ~ 10V Option:RS 485 ,hart |
| Supply voltage | DC24V (12 ~ 32VDC, less may contact) |
| Load capacity | current output: ≤ 500Ω |
| Voltage output | ≤ 250Ω output impedance |
| Electrical connection | Standard for Hersman, optional direct outlet or M20 PIN Aviation |
| Materials | |
| Wetted parts | 316L stainless steel |
| Shell | 304 |
| Seals | Viton, optional: EPOM, NBR |
| Diaphragm | 316L stainless steel |
| Other specifications | |
| Process connection | M20 × 1.5 external thread (standard) (optional otherconnections) |
| Material | 316L stainless steel wetted materials; Shell: 304 |
| Protection class | IP 65 |
| Medium temperature | -30 ~ 80 ℃ |
| Ambient temperature | -40 ~ 80 ℃ |
| Storage temperature | -40 ~ 100 ℃ |
| Earthquake | 108 RMS (25 ~ 2000HZ) |
| Current Limit | The maximum current-24mA; voltage-largest 5mA |
| Certification | CE |
Features
* DigitalASIC, accuracy and stability
* Drift affect small
* Excellent long-term stability
* Excellent anti-jamming capability
* Overvoltage overcurrent protection, reverse polarity protection
* Excellent selection of imported sensors core
Applications
Industrial field pressure control process, supporting the automotive, central air
conditioning, refrigeration equipment, water treatment works, environmental
purification, hydraulic and pneumatic control, aerospace, petrochemical industry, food industry, medical equipment, marine and shipbuilding industry, water conservancy,hydropower , power plants and other industries. almost can be used in various industrial fields, suitable for all stainless steel, 316L compatible media, and by choosing different seals to be compatible with more media. Different pressure and electrical connections can be selected.
Selection Guide

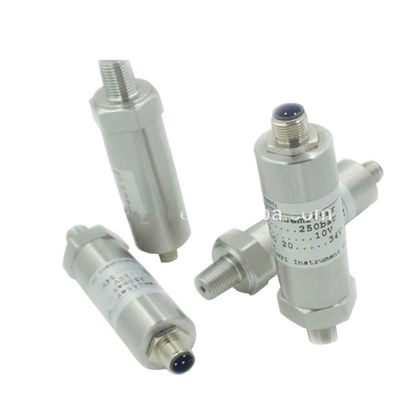

Related products
