| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MNS |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD10.5~$45/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Medium: | Liquid Or Gas | Output Signal: | 0-5v, 0-10v, 4-20mA |
|---|---|---|---|
| Pressure Range: | 0-60bar Or Other Custom | MOQ: | 1 Piece |
| Warranty: | 1 Year |

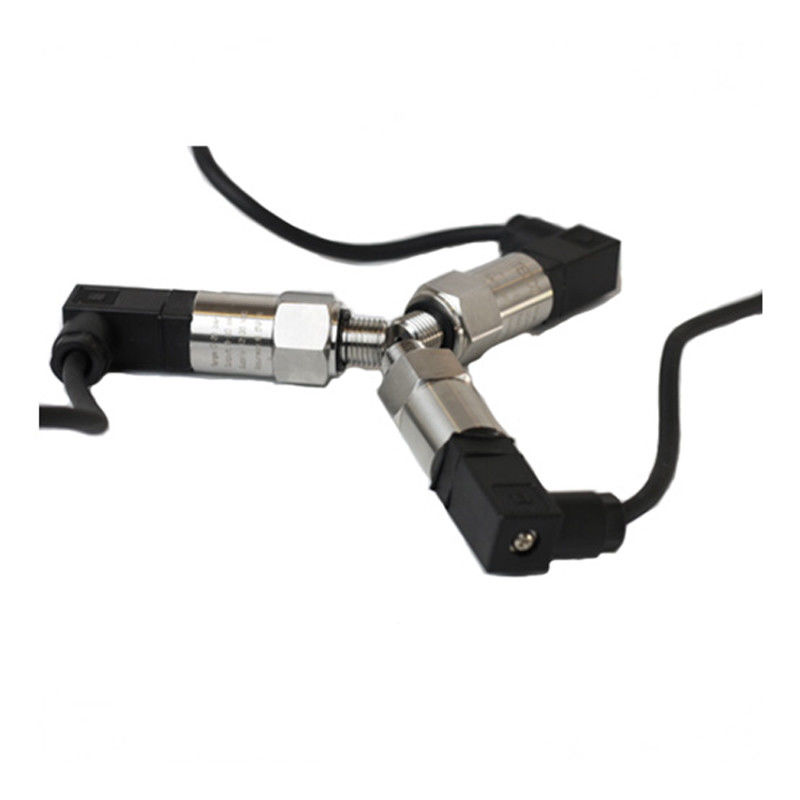

Water treatment system mini pressure transducer sensor
Application of Water treatment system mini pressure transducer sensor
Features of Water treatment system mini pressure transducer sensor

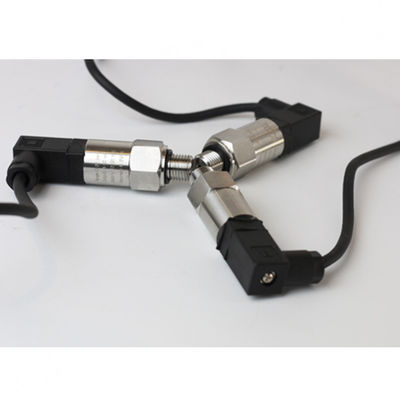

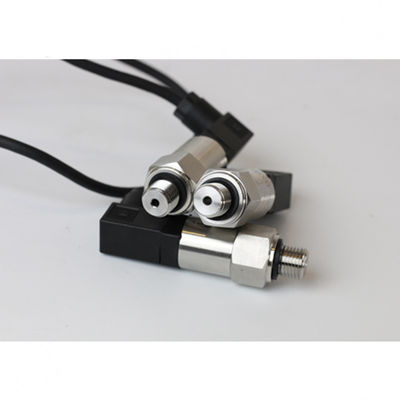

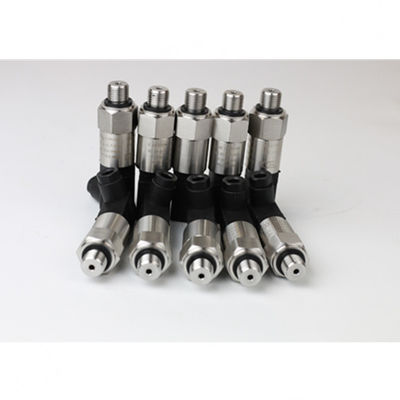

Detailed Images
Specification
| Water treatment system mini pressure transducer sensor | |
| Pressure Range | 0~-1bar, 2bar, 5bar, 10bar, 16bar, 20bar, 25bar, 30bar |
| Maximum Pressure | 2bar, 2bar, 4bar, 10bar, 20bar, 32bar, 40bar, 50bar, 60bar |
| Burst Pressure | 4bar, 4bar, 8bar, 20bar, 40bar, 64bar, 80bar, 100bar, 120bar |
| Pressure applied up to the maximum rating will cause no permanent change in specifications but may lead to zero and span shifts | |
| Exceeding the burst pressure may result in destruction of the transmitter and possible loss of media | |
| Materials | Gas or liquid compatible with ceramic |
| O-ring | NBR (FKM or EPDM) |
| Signal Output | 0~4.5V, 1~5V, 0~5V, 3-Wire; 0~10V, 3-Wire; 4~20mA, 2-Wire |
| Power Supply | 5V with signal output 0.5~4.5V/1~5V/0~5V |
| 12~32V with signal output 0~10V | |
| 9~32V with signal output 4~20mA | |
| Response Time | ≤2mS |
| Isolation Voltage | DC 500V |
| Accuracy | ≤1% FS@25℃ (Includes linearity, hysteresis and repeatability) |
| ≤3% FS@(-40℃ ~ +125℃) (limit point calibration) | |
| 1 year stability | ≤0.05% F.S |
| Permissible Temperature of | |
| Medium | -20℃ ~ +125℃ |
| Ambient | -40℃ ~ +100℃ |
| Storage | -40℃ ~ +100℃ |
| Compensated Temperature | -20℃ ~ +125℃ |
| Mean TC of Zero | Typical: 0.03%FS/℃ |
| Maximal: 0.05%FS/℃ | |
| CE - Conformity | |
| Test Standard | EN 55022:2010/AC:2011 |
| EN 61000-3-2:2014 | |
| EN 61000-3-3-2013 | |
| EN 55024:2010 | |
| EMC Directive | 2014/30/EU |
| Shock Resistance | 1000g according to IEC 60068-2-27(Mechanical Shock) |
| Vibration Resistance | 20g according to IEC 60068-2-6(Vibration under resonance) |
| Wiring Protection | Protected against reverse polarity, overvoltage and short circuit |
| Weight | 70g |
| Connection | G1/4 (NPT1/4, G1/4 and others available) |
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
