| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | D488 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD45~$75/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Various Units Display Wind Pressure Transmitter Sensor | Output: | 4-20mA,0-5VDC,0-10VDC,1-5VDC |
|---|---|---|---|
| Power Supply: | 9~36VDC | Accuracy: | ±0.5 %FS, ±0.25%FS |
| Maximum Static Pressure: | 70kPa | Operating Temperature: | -40℃~85℃ |
| Measuring Medium: | Dry Gas (no Corrosion) | Differential Pressure Range: | -10--0-- 10KPa |
| Seismic Performance: | 25g (20 .... 2000HZ) | Response Frequency: | ≤ 500Hz |
Various Units Display Wind 4-20mA Pressure Transmitter Sensor
Description
Micro Wind Differential Pressure Sensor detect differential pressure or gauge pressure then convert this pressure difference to a proportional analogue output signal. Two output version are offered: Voltage output of 0~10VDC, and a current output 4-20mA. Gas differential pressure transmitter ranges from 0~±50Pa to 0~±10000Pa. These transmitters boast of their outstanding performance, high quality and economical pricing.

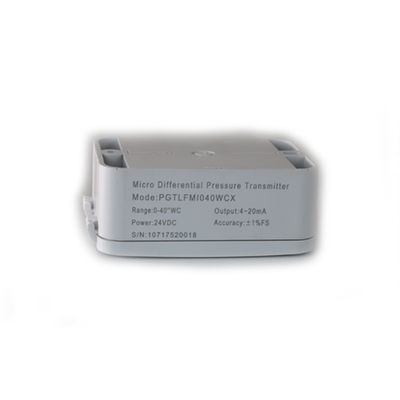

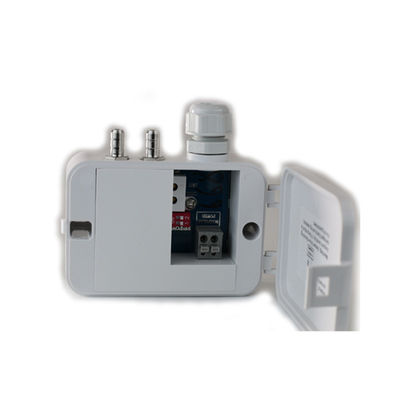

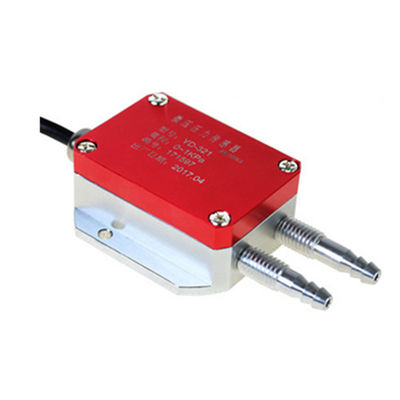

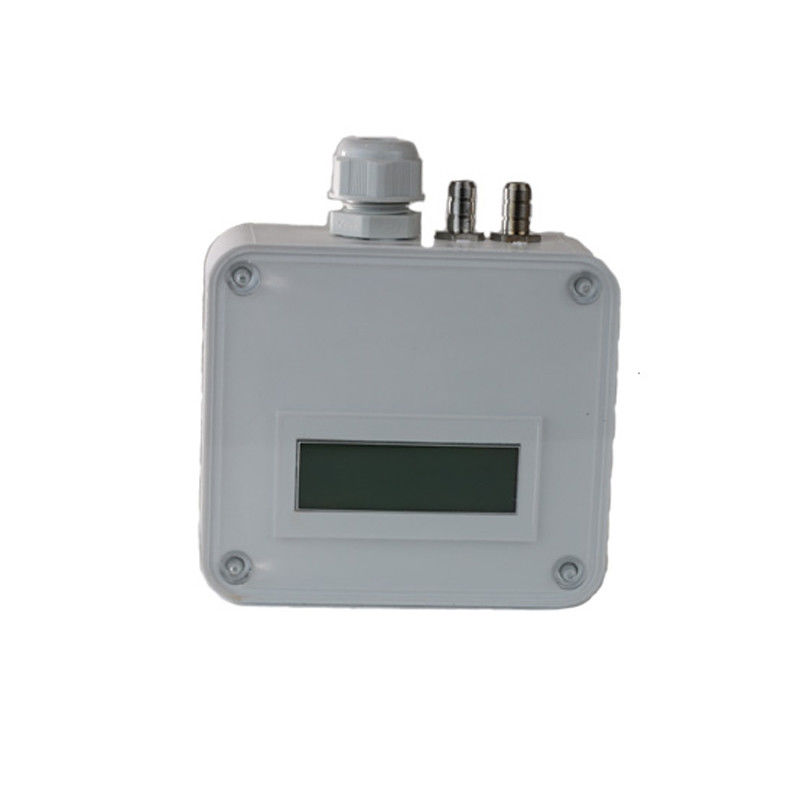

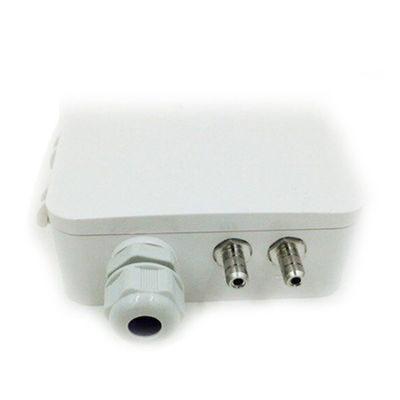

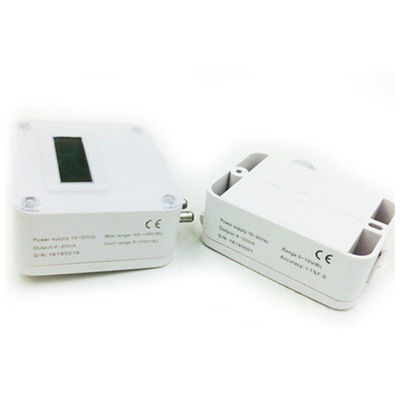

Detailed Images
Specification
| Various Units Display Wind 4-20mA Pressure Transmitter Sensor | ||
| Pressure Range | Differential pressure/wind pressure:0~500Pa…700KPa | |
| Negative pressure | 0~-500Pa…-1KPa…-5KPa…-10KPa….-50KPa…-100KPa | |
| Limited overload pressure | 2 times full scale pressure | |
| Measure medium | Non-corrosive, dust-free, dry gas | |
| Accuracy | ±0.1%FS | |
| Medium temperature | -20°C~85°C | |
| Compensation temperature | -10°C~55°C | |
| Environment temperature | -10°C~80°C | |
| Zero point temperature drift | Normal:0.02%FS/°C | |
| Sensitive temperature drift | Normal:0.02%FS/°C | Max:0.05%FS/°C |
| Long-term stability | Normal:±0.1%FS/year | Max:±0.2%FS/year |
| Power supply | 12~36V DC (Normal 24V DC) | |
| Signal output | 4~20mA / 1~5V DC / 0~5V DC / 0.5~4.5V DC | |
| Load resistance | ≤(U-12)/0.02 Ω | |
| Case material | Alloy with plastic surface or 304SS | |
| Protect class | IP54 | |
| Interface | Φ8 with mouth M10x1 female thread (option) | |
| Explosion-proof mark | Exia II CT5(safe explosion proof type) | |
| Weight | 0.35Kg | |
| Vibration error | ≤±0.01%FS(X,Y,Z shaft,200Hz/g) | |
| Response time | ≤5 ms | |
| Insulation resistance | 100MΩ,500V DC | |
Features
1.all stainless steel shell, excellent corrosion performance
2. Wide range of pressure measurement
3. natural frequency up to 1MHz
4.work stable
5. anti-interference ability
6.imported components, reliable performance. The following are the same as the "
7. small size, light weight, type complete, cost-effective
8.wide range of measuring media
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Packing & Shipping
