| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | D488 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD35~$65/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | -10--0-- 10KPa | Accuracy: | ±0.5 %FS, ±0.25%FS |
|---|---|---|---|
| Power Supply: | 9~36VDC | Output: | 4-20mA,0-5VDC,0-10VDC,1-5VDC |
| Operating Temperature: | -40℃~85℃ | Load Resistance: | ≤(U-10)/0.02Ω |
| Measuring Medium: | Dry Gas (no Corrosion) | Seismic Performance: | 25g (20 .... 2000HZ) |

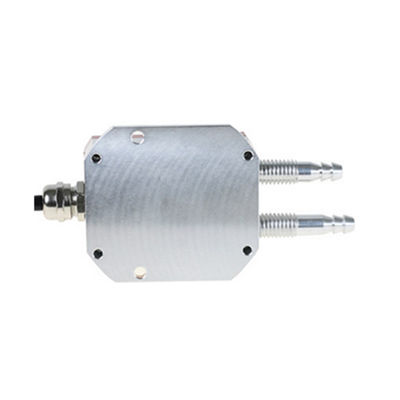

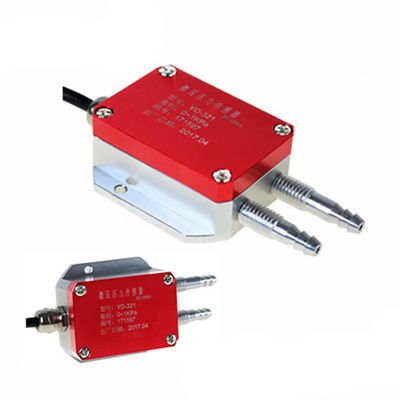

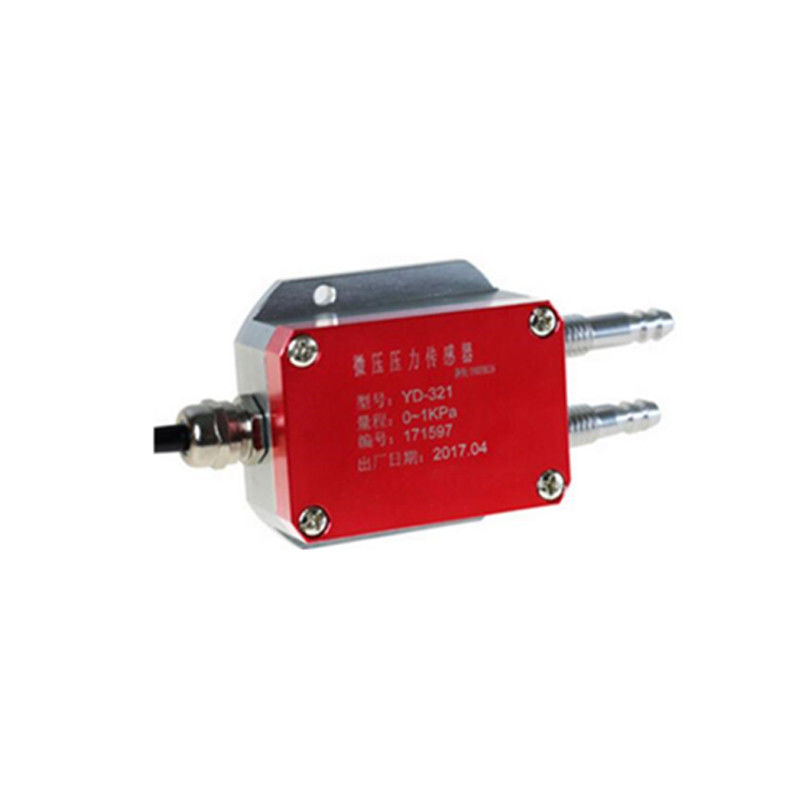

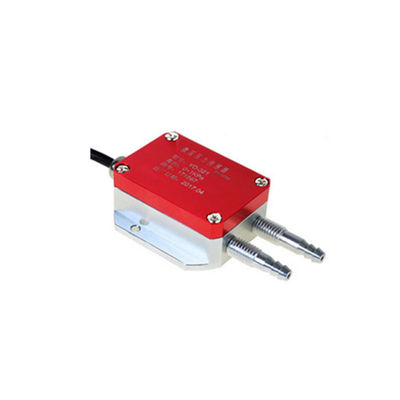

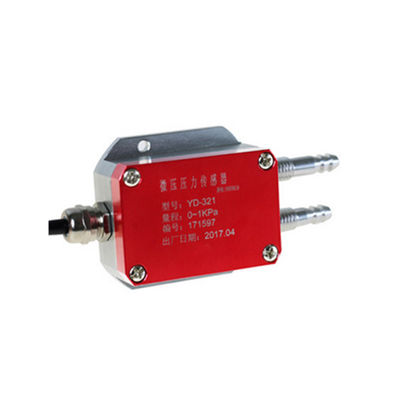

| Response Frequency: | ≤ 500Hz | Product Name: | Hot Sale Mini Differential Pressure Sensor Transmitter |
oil pressure sensor is piezoresistive silicon pressure sensor, the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. The sensingelement uses 316L stainless steel to packing and thick film circuit to do temperature compensation and zero correction. It has high reliability and stability
Features of Miniature differential Pressure Sensor transmitter
1.all stainless steel shell, excellent corrosion performance
2. Wide range of pressure measurement
3. natural frequency up to 1MHz
4.work stable
5. anti-interference ability
6.imported components, reliable performance. The following are the same as the "
7. small size, light weight, type complete, cost-effective
8.wide range of measuring media
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
