Name: hot sale differential oil water air pressure sensor
Brand: Zhejiang Nancon Industrial Technology Co., Ltd.
SKU: 19S
Price: 12.50 USD
Availability: InStock

Home Products Pressure Transmitter/Pressure Sensor

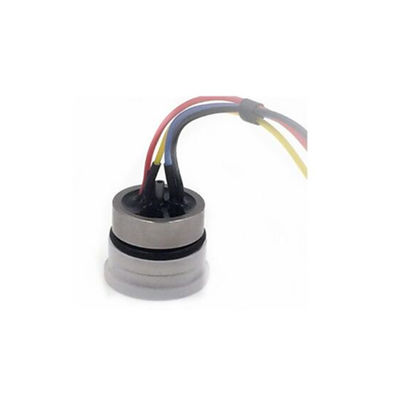

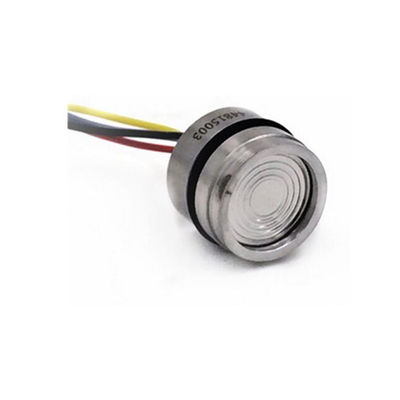

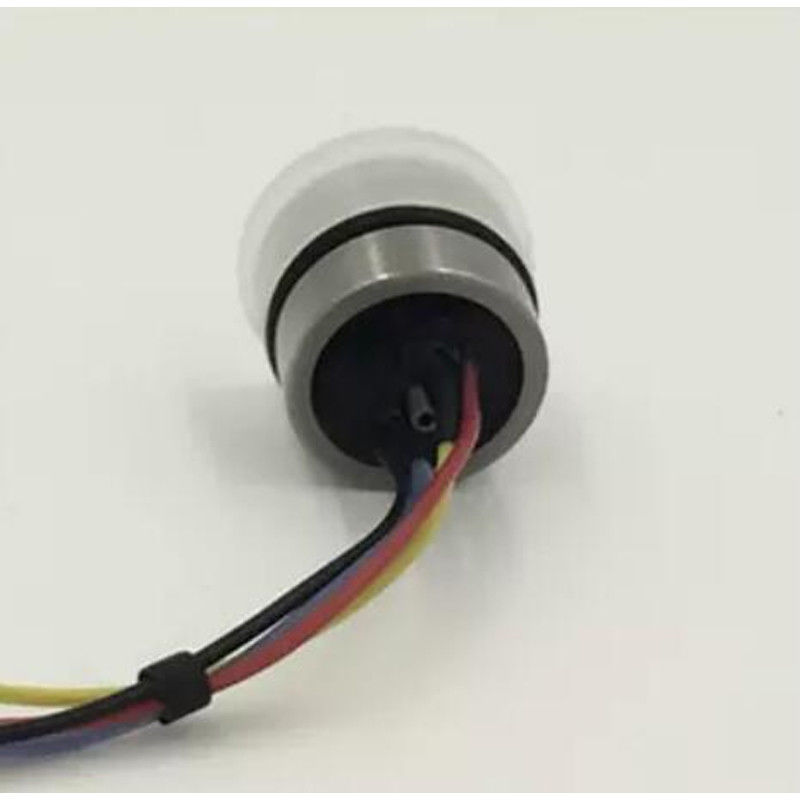

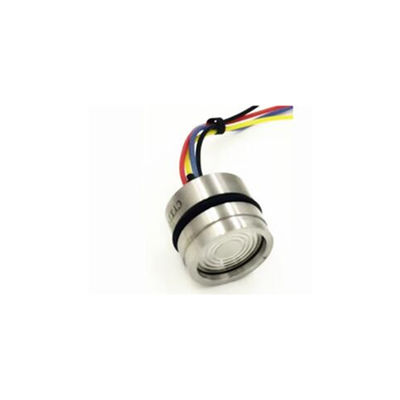

hot sale differential oil water air pressure sensor

Product Details:

Place of Origin:	Made In China
Brand Name:	NanCon
Certification:	CE
Model Number:	19S

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD10.5~$15/pc
Packaging Details:	Accuracy 0.1 water proof PH meter PH tester Standard export carton packing.
Delivery Time:	3 ~ 7 Working Days After Payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

Detailed Product Description

Item:	Hot Sale Differential Oil Water Air Pressure Sensor	Output:	0~10KPa,20KPa, 35 KPa.......100MPa
Non-linearity:	±0.15 (0~2MPa) ±0.2 (3.5MPa ~100MPa)	Zero Output:	0±1
Mounted:	O-ring Mount	Performance:	High Accuracy And Stability
Wetted Material:	Full316LSS,Full Titanium Or Hastelloy Diaphragm	Element:	Piezoresistive Silicon Sensing Element
Output Impedance:	2.5KΩ~6KΩ	Proof Pressure:	3X Rated Range Or 120MPa, Whichever Is Less

Product Description

hot sale differential oil water air pressure sensor

piezoresistive silicon pressure sensor, the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. The sensing element uses 316L stainless steel to packing and thick film circuit to do temperature compensation and zero correction. It has high reliability and stability.

Application Feature

hot sale differential oil water air pressure sensor features

Wide measurement range:0~10KPa~100Mpa
Piezoresistive silicon sensing element
Full316LSS,Full Titanium or Hastelloy diaphragm
O-ring mount
High Accuracy and stability

hot sale differential oil water air pressure sensor application

Measurement pressure of gas and liquid
Petroleum exploitation
Water supply,warm supply of town
Process control system
Aviation and navigation inspection
Hydraulic pressure

Specification

Wiring

Packing & Delivery

Contact Details

Zhejiang Nancon Industrial Technology Co., Ltd.

Contact Person: Mr. Summer Nan

Tel: 86--13335398393
