| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MNS |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD10.5~$25/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Accuracy: | 1% | Power: | 5VDC,8~30VDC |
|---|---|---|---|
| Output: | 0.5~4.5VCD 4~20mA OTHERS | Thread: | G1/4" M18*1.5 Others |
| Material: | Steel Carbon And Ss | Pressure Range: | -0.1-300Mpa |
| Product Name: | OEM Mini Electronic Pressure Transducer Sensor For Water ,air |

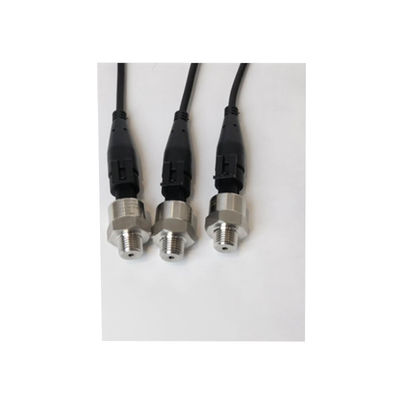

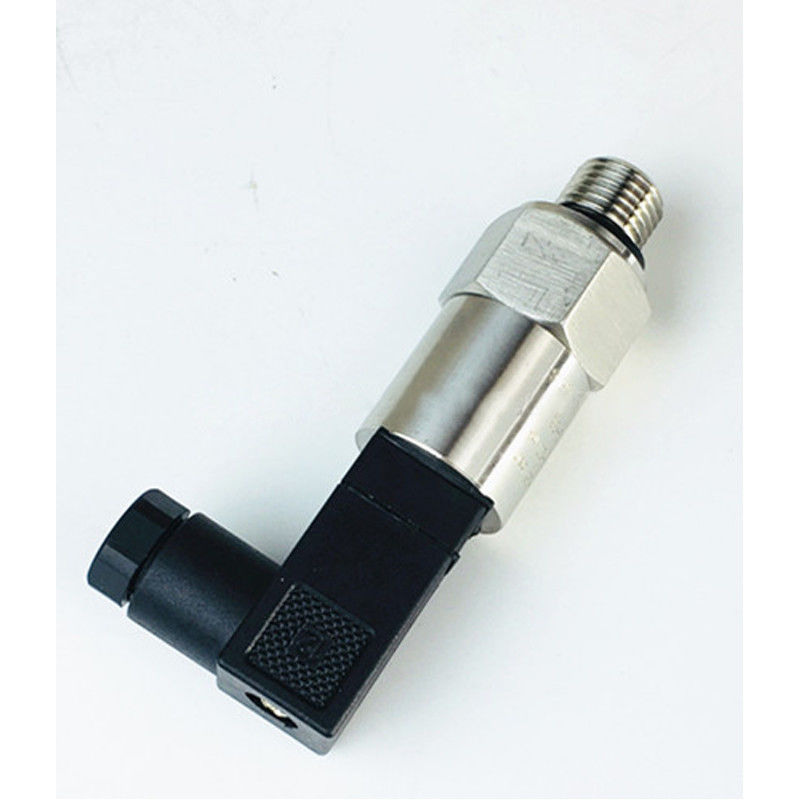

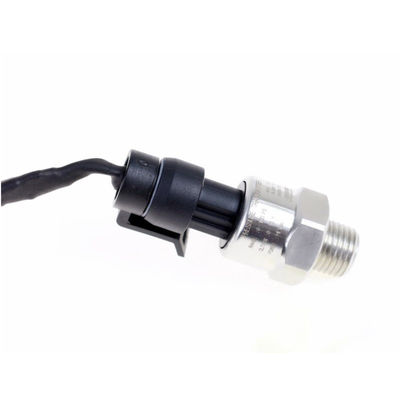

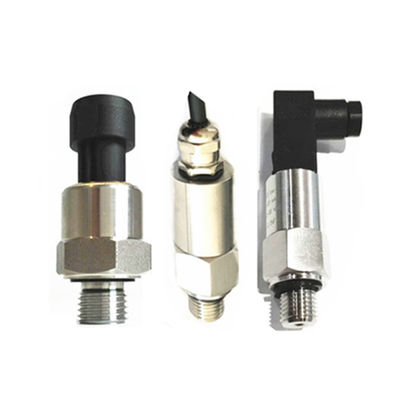

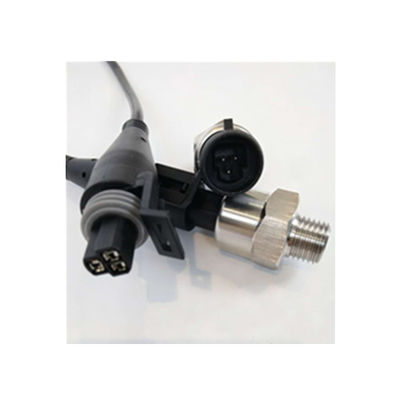

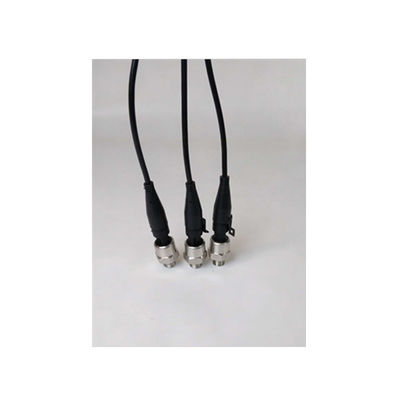

OEM mini electronic pressure transducer sensor for water ,air
Technical parameters of OEM mini electronic pressure transducer sensor for water ,air:
Range:-0.1-0Mpa,-0.1-0.1...1Mpa,0-2Kpa...300Mpa
Accuracy: 0.25%FS, 0.5%FS;1%FS
Medium:gas or liquid compatible with 316l stainless steel
Output: 4-20mA,
Input Voltage: +12VDC +24VDC
Electrical connector:water proof
Load capacity:current:<=500Ω
Operation Temperature: -20℃~120℃
Compensation Temperature: 0-85℃(Standard compensation)
Safety overload:150%
Limited overload:200%
Temperature drift:0.02%FS/℃
Stability:0.2%FS/year
Housing material: 316L SS
Protection:IP65
Process Connection:M20*1.5,G1/2,G1/4, 1/2NPT, 1/4NPT, M14*1.5 (Optional)
Features of OEM mini electronic pressure transducer sensor for water ,air:
Use diffused silicon pressure components,high accuracy,good stability.
High sensitivity,strong overload.
Wide range,easy installation,meet different site requirements.
Applications of OEM mini electronic pressure transducer sensor for water ,air:
Laboratory test apparatus
Agricultural chemical equipment
Refrigeration and HVAC systems
Hydraulic system
Gas tank pressure monitoring
Coolant pressure
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
