| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD36 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD10.5~$25/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measuring Range: | 0....1bar 0....60bar | Output: | 0-5V, 0.5-4.5V,1-5V;4-20mA, |
|---|---|---|---|
| Accuracy: | 0.5%FS;1%FS;1.5%FS | Thread: | G1/4, G1/2 1/4NPT, 1/2NPT And Others |
| Application Temp.: | -40 ℃ ~ 125 ℃ | Housing Protection: | IP65 |
| Customd: | Customed | Product Name: | Water Pump Air Compressor Pressure Sensor Hot Sale |
Water pump Air compressor pressure sensor with extension wire
Description
Oil Pressure Sensor Diesel Sensor
Description of Water pump Air compressor pressure sensor hot sale:
SL120 series pressure transmitter Integration with a piezoresistive ceramic pressure sensor, signal processing circuit imported from Germany dedicated chip, signal conditioning circuit reliability, redundancy and thermal design to ensure product reliability and consistency. Cycle fatigue pressures up to 10 million times.

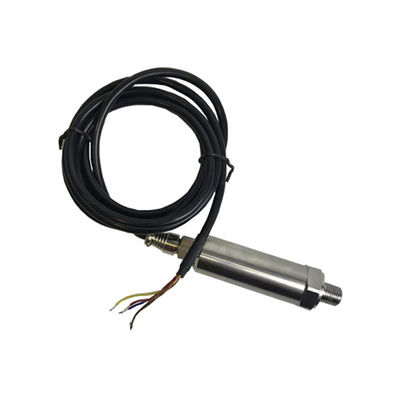

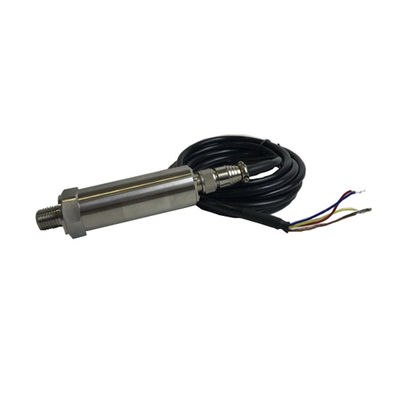

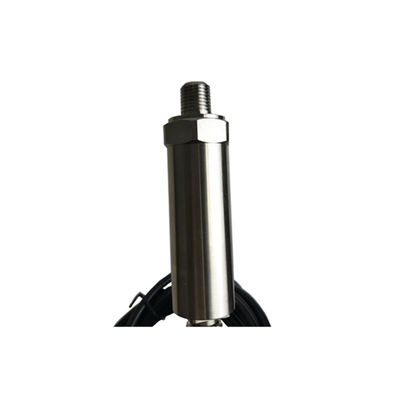

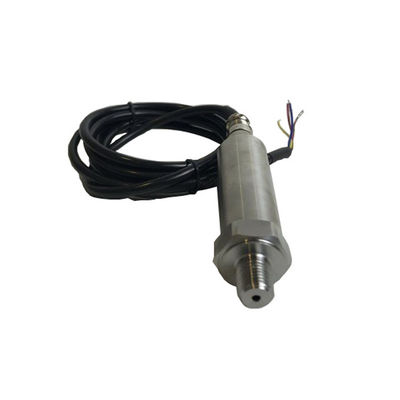

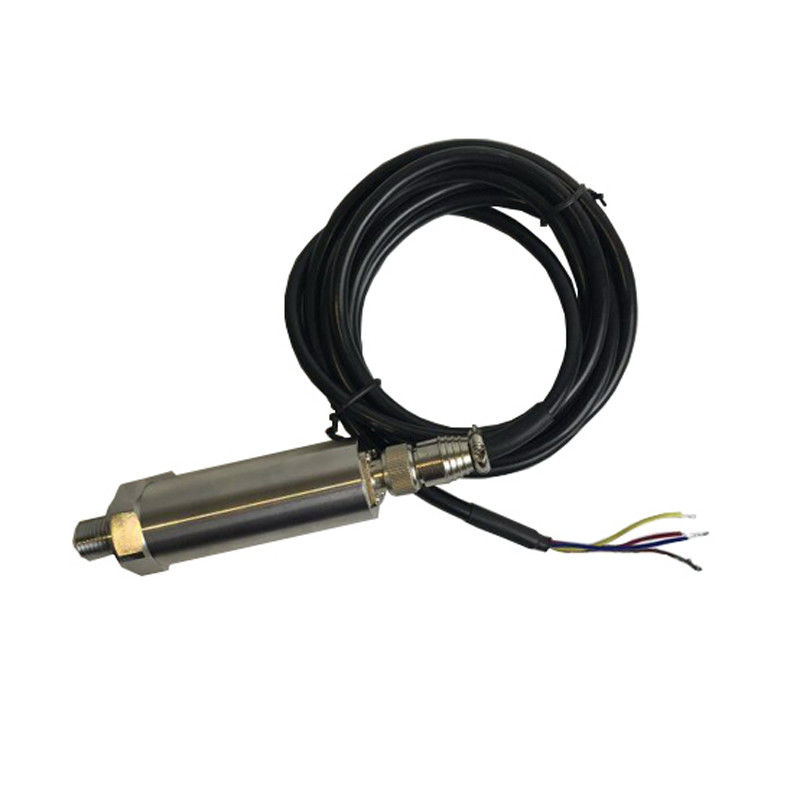

Detailed Images
Specification
| Water pump Air compressor pressure sensor with extension wire | |
| Range | 0….1bar 0….60bar |
| Accuracy | 0.5%FS;1%FS;1.5%FS |
| Nonlinear | 0.02%FS |
| Reliability | 0.05%FS |
| Output signal | 0-5V, 0.5-4.5V,1-5V; 4-20mA |
| Supply voltage | 5V DC; 24(12-36V) DC |
| Operating temperature | -40℃~125℃ |
| Compensated Temperature | -10℃~70℃ |
| Overload pressure | 150%FS |
| Dielectric material | 316SS |
| Electrical connection | 3 pin Packard connector |
| Pressure connection | 1/4NPT, 1/8-27NPT, 7/16-20UNF custom |
Features
using integrated piezoresistive ceramic pressure sensor
signal processing circuit ASIC imported from Germany
signal conditioning circuit reliability redundant design and thermal design
cycle fatigue pressures up to 10 million times
Applications
Automotive Oil Pressure
Car brake pressure
Motorized off-road equipment and industrial machinery
