| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD39 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD65~$125/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item Name: | LED Pressure Transmitter Transducer Sensor | Range: | 0~20Kpa.....35Kpa...~2MPa |
|---|---|---|---|
| Medium: | Liquids Or Gases Compatible With 316LSS | Proof Pressure: | 1.5X Rated Range Or 7MPa(Which Ever Is Less) |

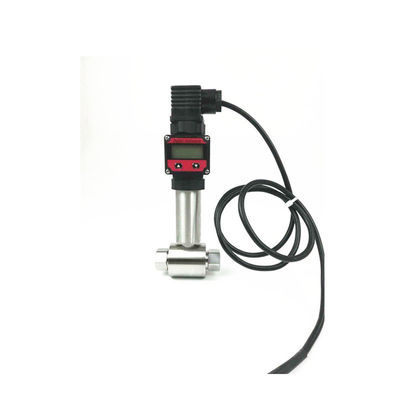

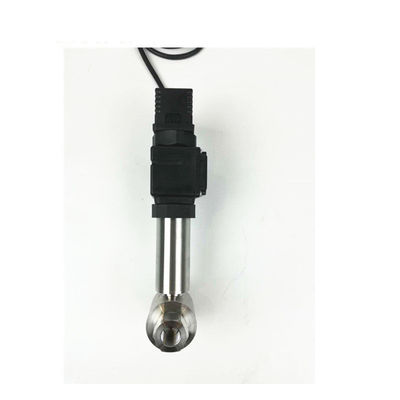

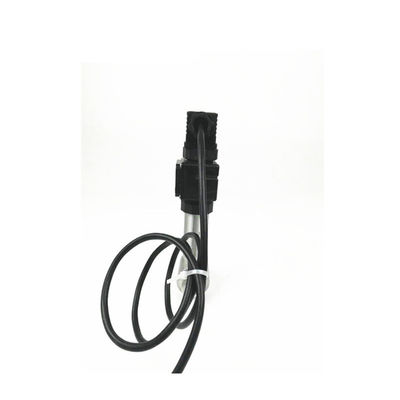

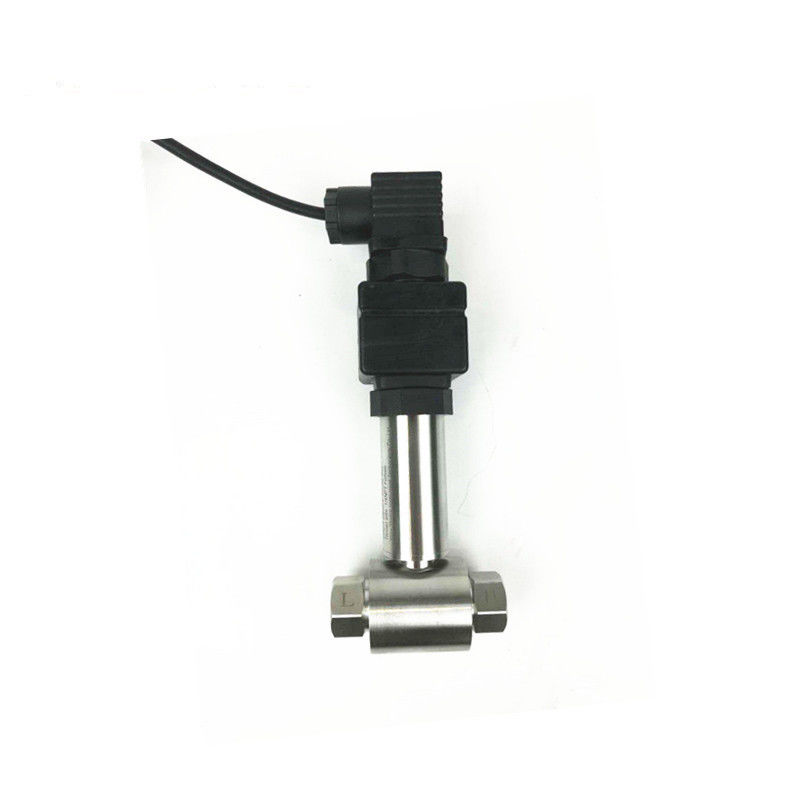

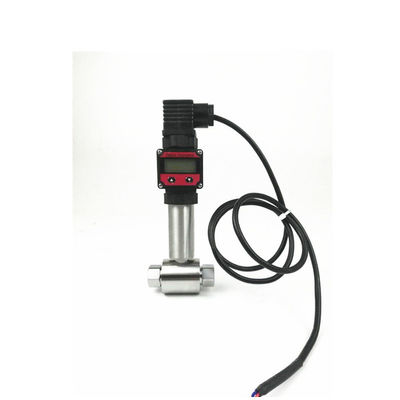

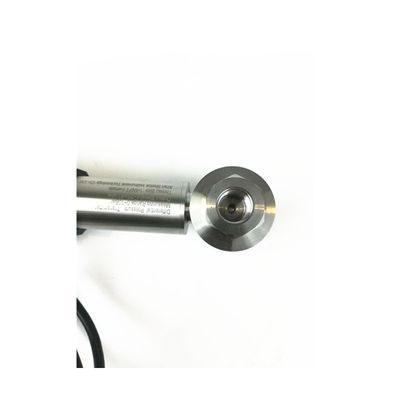

LED pressure transmitter transducer sensor
Description
LED pressure transmitter transducer sensor is consist of both isolation membrane differential pressure sensor and integrated circuit, Has characteristics of high precision, good stability, high reliability and good sensibility. Also can build high-performancemicroprocessor(MCU)which can correct nonlinearity and compensate temperature drift. Achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication.
Detailed
Specification
| Range: | 0~20Kpa…..35Kpa...~2MPa |
| Medium : | Liquids or gases compatible with 316LSS |
| Proof pressure: | 1.5X rated range or 7MPa(Which ever is less) |
| Accuracy : | ±0.25%(Typical) ±0.5%(Max.) |
| Operating temperature range : | -20℃~80℃ |
| Storage temperature range: | -40℃~120℃ |
| Power supply: | 15~36VDC |
| Output signal : | 4~20mA 0~10/20mA 0/1~5/10VDC |
| Pressure port : | G1/4 Female 6 air cock or customize |
| Diaphragm material : | 316L |
Features
Compatible with 316LSS,noncorrosive gases & liquids
Wind pressure & velocity of flow in industry process
Measuring pressure of pipeline &firepot
Petroleum industry, chemical industry
Meteorological monitoring
