| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 13A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD25~$55/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

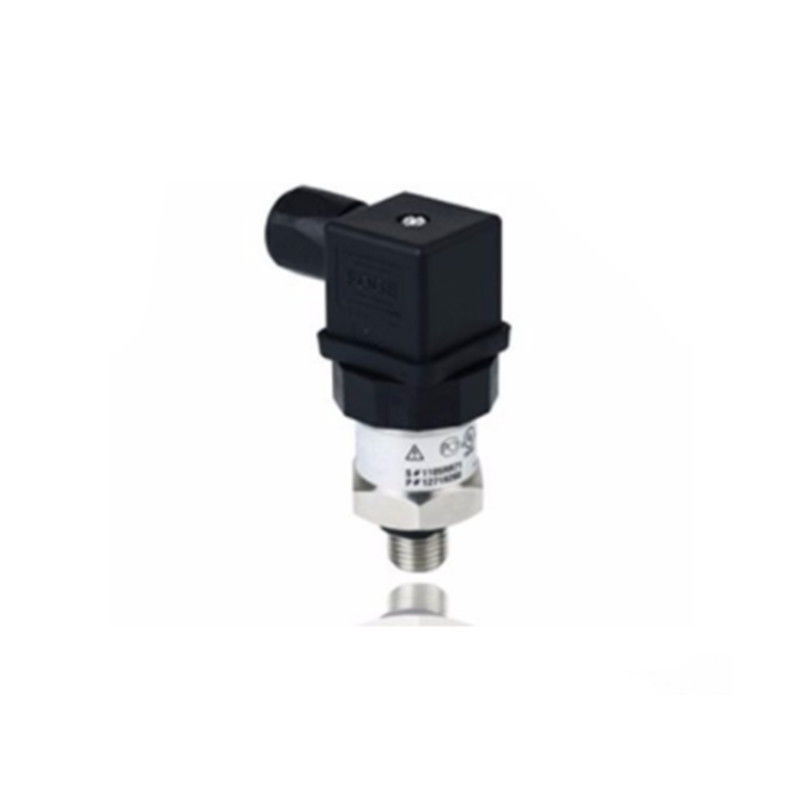

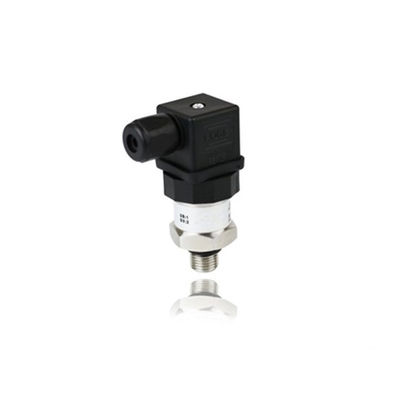

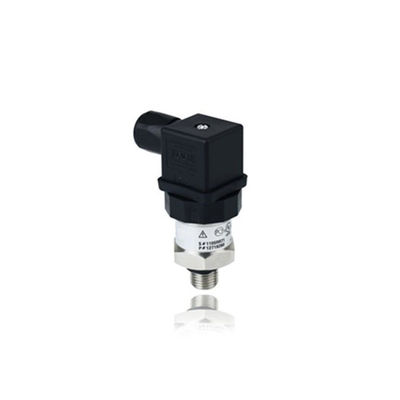

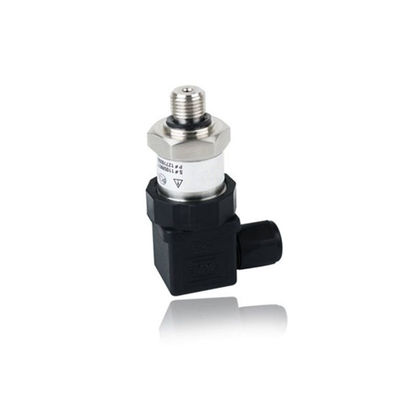

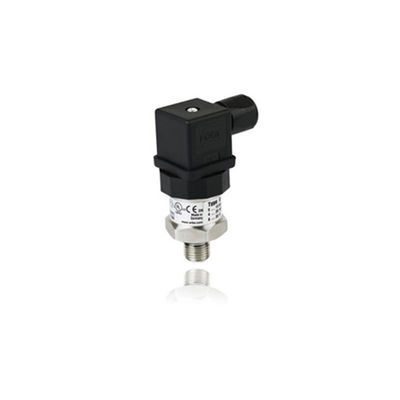

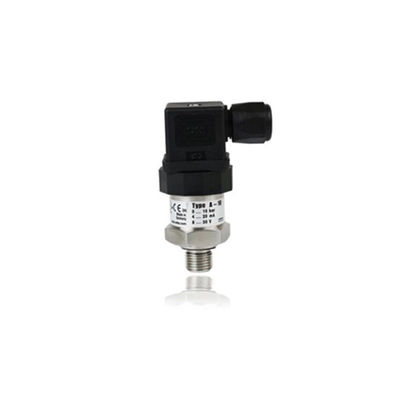

| Item: | Air Condition Compressor Pressure Sensor | Output: | 4-20mA(2 Wires)/0-5V/0-10V |
|---|---|---|---|
| Accuracy: | 0.5%, 1% | Power Supply: | 12-36VDC |
| Hart Protocol: | Optional | Application: | Air, Water, Oil |
| Process Connection: | M20X1.5, G1/4, 1/4NPT | Pressure Type: | Gauge/absolute/vacuum |
| Pressure Range: | 0-1bar...100MPa | Sensor Type: | Diffuse Silicon |
refrigeration pressure transducer are precision engineered to fit most industrial pressure measurement applications. The compact, rugged design makes these instruments suitable for applications including hydraulics and pneumatics, vacuum, test equipment, liquid level measurement, press control, compressor control, pump protection and numerous other processing and control operations. A wide range of electrical connection and process connection options are avail-able to meet almost any requirement.
Measurement Range: 0-0.1bar to 0-1000bar
Piezoresistive sensor and thin-film sensor technology
Standard ranges available from stock
4-20 mA 2-wire output signal, others available
Highly resistant to pressure spikes and vibration
Stainless steel case and wetted parts
Can be assembled to diaphragm seals for special applications
Automobile, compressor and refrigeration Industry
Engineering machinery pressure control and monitor
Energy and water treatment system
Armarium, agricultural machinery
Hydraulic and pneumatic control system
Iron and steel industry, light industry
Pump, fitness equipment, household appliances
Hydraulics and pneumatics
Liquid level measurement
