| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD39 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD65~$125/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | 0~0.1bar...35bar | Accuracy: | 0.1%FS(range>1bar),0.25%FS(standard), 0.5%FS |
|---|---|---|---|
| Power Supply: | 12~36VDC | Output Signal: | 4~20mA, 0~5V, 0~10V, 1~5V,0.5~4.5V |
| Sealing: | N-Butyronitrile Or Fluoro-rubber Sealing Ring | Material: | 316L |
| Operating Temperature Range: | -40℃~120℃ | Type: | Measuring Instruments |
| Application: | Liquid | Item Name: | Wholesale Differential Pressure Transducer Sensor 0-5v |

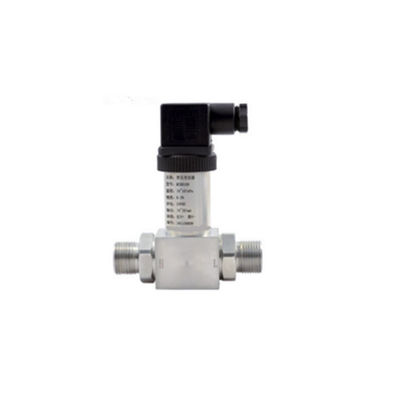

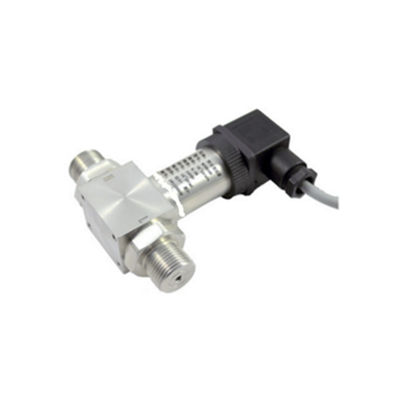

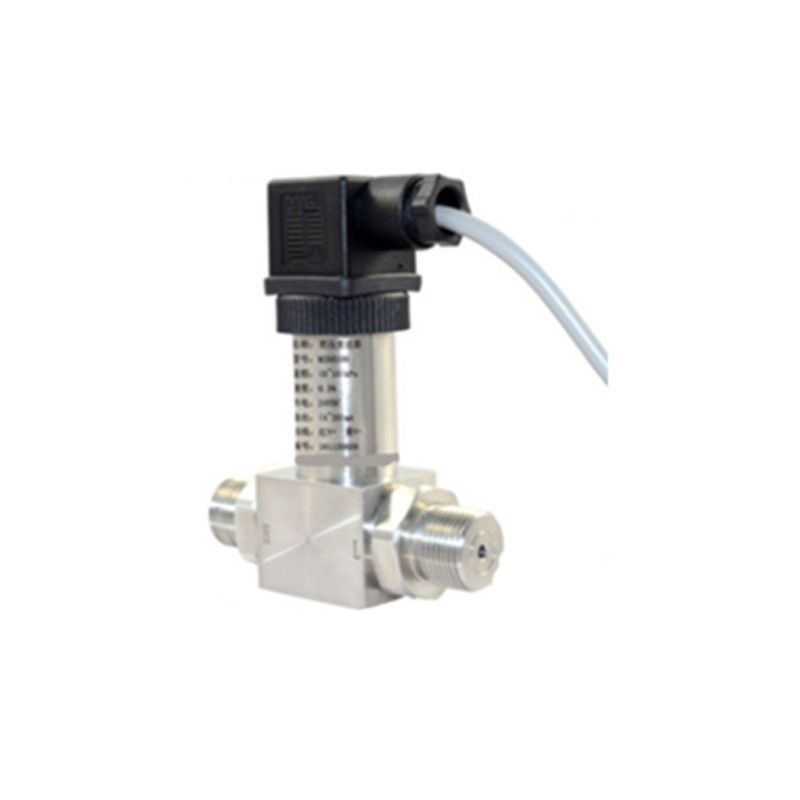

Whosale differential pressure transducer sensor 0-5v measures the difference between the two ends of the transmitter, output standard signal (eg 4 ~ 20mA, 0 ~ 5V). Different with the general ones,the differential pressure transmitter has two pressure ports, which are the positive and negative terminal end. Under normal circumstances, the pressure of the positive side of the differential pressure transmitter should be greater than the negative side , then it works. The differential pressure transmitter is used to prevent the medium in pipeline directly into the transmitter.It is used to measure liquid, gas, or steam level, flow and pressures.
Compatible with 316LSS,noncorrosive gases & liquids
Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc.
Q: I would like to know if you have a partner for export?
A: Yes,We have the right to export and can sell product all over the world.
Q: Can I get some samples?
A: Yes,Sample order is available for quality check and market test.But you have to pay the express cost.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q: Do you have the products in stock?
A: Depends on your request.We have standard models in stock.Some special products and big order will be newly produced according to your order.
Q: Can I mix different power in one container?
A: Yes,Different models can be mixed up in one container,even one order.
Q: How does your factory do the quality control?
A: Quality is priority,we always attach importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before packing and shipping.
Q: What's your payment terms?
A: We usually accept all kinds of payment terms.Such as T/T,L/C,Western Can Union Cash.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
