| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD39 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD65~$120/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Low Price 4-20mA Temperture Sensor/pressure Sensor | Output: | 4-20mA |
|---|---|---|---|
| Power Supply: | 12~36VDC | Accuracy: | ±0.1 %FS, ±0.25%FS |
| Pressure Range: | -100KPa~0~1KPa...20KPa...100MPa | Operating Temperature: | -40℃~85℃ |
| Load Resistance: | ≤(U-10)/0.02Ω | Type: | Pressure Senor |
| Warranty: | 12 Months | Application: | Water Oil Air Pressure Measurement |

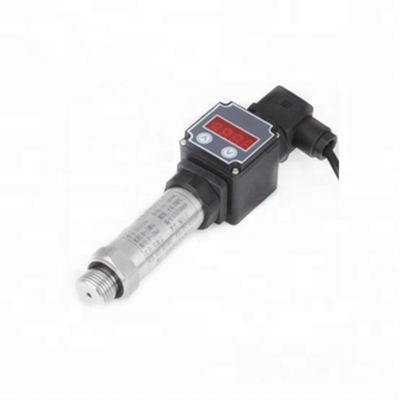

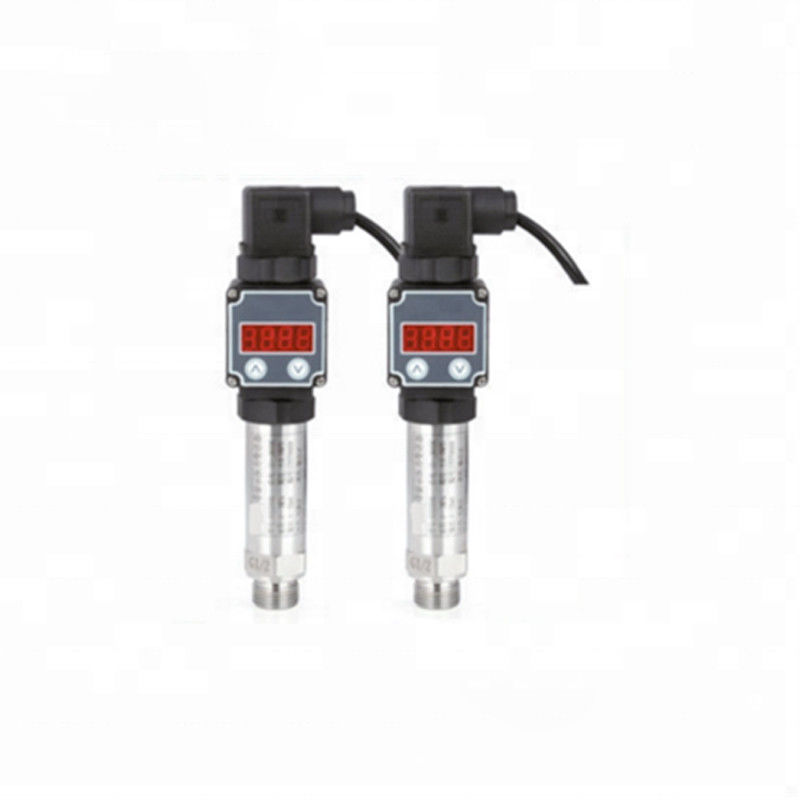

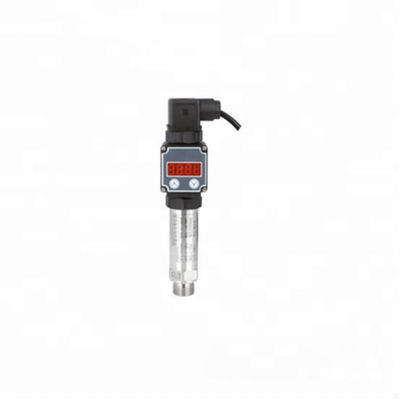

Low price 4-20mA temperture sensor/pressure sensor
Pressure sensor without liquid transmission, the pressure directly on the front surface of the ceramic diaphragm, so that the diaphragm has a small deformation, thick film resistance printed on the back of the ceramic diaphragm, connected into a Wheatstone bridge (closed bridge), due to the piezoresistive effect of the varistor, the bridge is generated with a high linearity proportional to the pressure, and the voltage signal is proportional to the excitation voltage. The voltage signal is converted to a 4~20 mA current signal through the modulation amplifier circuit.
Low price 4-20mA temperture sensor/pressure sensor
1.all stainless steel shell, excellent corrosion performance
2. Wide range of pressure measurement
3. natural frequency up to 1MHz
4.work stable
5. anti-interference ability
6.imported components, reliable performance. The following are the same as the "
7. small size, light weight, type complete, cost-effective
8.wide range of measuring media
Data 1:
| Pressure | 100KPa~60MPa Absolute or Sealed gauge pressure |
| Power supply | Between 12~36V |
| Output | Current, Voltage, Digital signal optional (see option page) |
| Overload | 2 times the basic overload |
| Material | Ceramic + stainless steel 316 |
| Seal | Fluorine rubber seal non-internal seal |
| Thread | Optional (see option page) |
| Accuracy | 0.2, 0.5 (20°C) |
| Warming | ±0.08FS/°C (4~20mA output) |
| Sound frequency | 200HZ |
| Temperature | Medium temperature -30 ~ 100 °C Ambient temperature -30 ~ 80 °C |
| Protection | IP65 or IP67 High magnetic compatibility |
Data2:
| YD31 | Base Model | ||||
| Code | Electrical connection | ||||
| B | Hessman connection | ||||
| C | Direct outlet | ||||
| D | Air plug connector | ||||
| Code | Output signal | ||||
| S1 | 4-20mA | ||||
| S2 | 0-5V | ||||
| S3 | 0-10V | ||||
| S4 | 1-5V | ||||
| S5 | 0-5V | ||||
| S6 | 485 Digital signal(485RTU protocol) | ||||
| Code | Pressure Range | ||||
| See Table 1( Gauge pressure is G, Absolute pressure is A.) | |||||
| Code | Thread size | ||||
| M1 | M20*1.5 | ||||
| M2 | G1/2 | ||||
| M3 | G1/4 | ||||
| M4 | NPT1/2 | ||||
| M5 | NPT/4 | ||||
| M6 | M14*1.5 | ||||
| M7 | other | ||||
| YD31 | B | S1 | G17 | M1 | Stand for 25MPA 4-20 mA transmitter |
Established with 10 million capital in 2015, Xi'an Shelok Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Specialties
pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor
1, more than 10 years industry background
The original organization is Xi'an Precise Instruments Factory, established in 2007, and mainly produce pressure gauge, stainless steel pressure gauge, anti-vibration pressure gauge, pressure transmitter, pressure switch, pressure calibrator, and so on.
In 2013, Yunyi Group is established for development command, and process measurement instruments about water, flow, temperature are added in our product catalogue.
In 2015, Xi'an Shelok instruments Co., Ltd is estalished with 10 million capita for meeting the international business expanding demand.
2, a company of design and manufacture capability
Mainly focus on design and customized solution offer, and combining our professional industry background and our capability of supply chain management in local market, more comprehensive products and services could be offered.
3, R&D team + cooperation with colleges and universities
Keeping our capability of technology innovation improved makes us available to meet various technical challenges
4, three inspection steps + good warranty service
Strict inspection operation process keeps our products qualified, and clearly warranty policies help customer's solve after-sale problems and lower their cost.
5, sample first policy.
By offering most suitable proposal to help customers maximize their profit.
6, employees with + 4 years international experience are more than 100%
Professional and effective international business operation offers better service expericence
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
