| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD31 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD35~$65/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Output: | 4~10mA 2 Wire; 0~10V, 0~5V, 1~5V, 3 Wire; RS485 | Measure Range: | -0.1~100Mpa |
|---|---|---|---|
| Connection: | M20*1.5, 1/2NPT,1/4NPT | Power Supply: | 10~30V DC |
| Packing Weight: | 0.25KG | Warranty: | 12 Months |
| Accuracy: | 0.25% | Product Name: | High Accuracy 0-5v Liquid Water Pressure Sensor For Gas Liquid |
Description
Compact structure, beautiful appearance
Digital circuit
High precision, high stability
Strong anti-interference, good long-term stability
Small volume, light weight, convenient installation and use
Wide measuring range, can measure absolute pressure, gauge pressure
Variety choice of processes and electrical connection
Suitable for mass production, economic and reliable

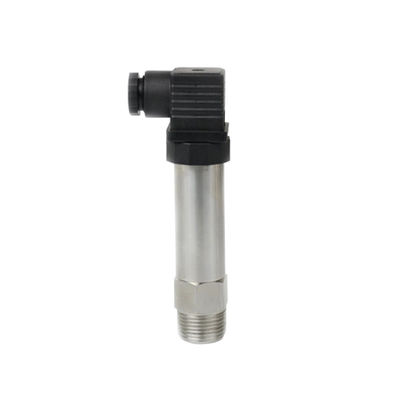

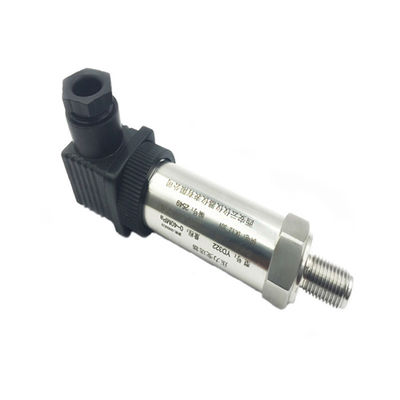

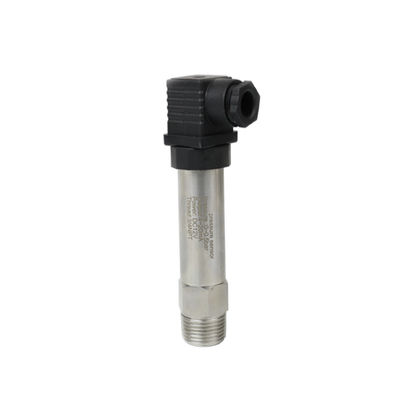

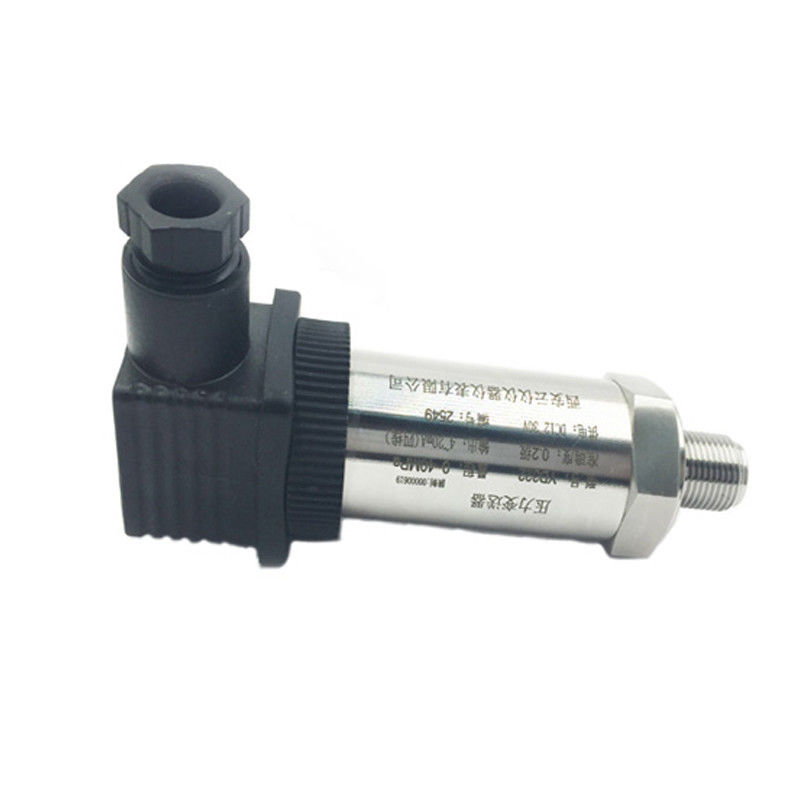

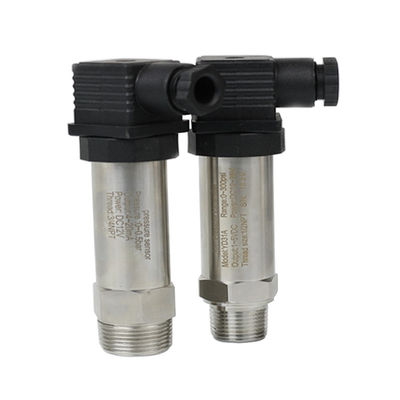

Detailed Images
Specification
| China High Accuracy 0~5V Pressure Transducer For Gas Liquid | |
| Measure Range | -100KPa~0~10KPa~100Mpa |
| Pressure Type | gauge pressure, absolute pressure |
| Power Supply | 24V DC, 12V DC |
| Output Signal | 4 ~ 20mA, 1 ~ 5V, 0 ~ 5V |
| Temperature Compensation | -10℃ ~ +70℃ |
| Working Temperature | -20℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +125℃ |
| Zero Temperature Drift | ±1.5%FS |
| Sensitivity Temperature Drift | ±1.5%FS |
| Overload | 150%FS |
| Mechanical Vibration | 20g(20 ~ 5000HZ) |
| Accuracy | ± 0.5%FS, ± 0.25%FS |
| Long Time Stability | ±0.1%FS/year, ±0.2%FS/year |
| Response Time | ≤1ms(Up to 90%FS) |
| Load Resistance | ≤(U-15)/0.02Ω |
| Material | Stainless steel case; internal 316L sensor |
| Media Compatible | Media compatible with 316L stainless steel |
| Protection Grade | IP65 |
Features
Compact structure, beautiful appearance
Digital circuit
High precision, high stability
Strong anti-interference, good long-term stability
Small volume, light weight, convenient installation and use
Wide measuring range, can measure absolute pressure, gauge pressure
Variety choice of processes and electrical connection
Suitable for mass production, economic and reliable
