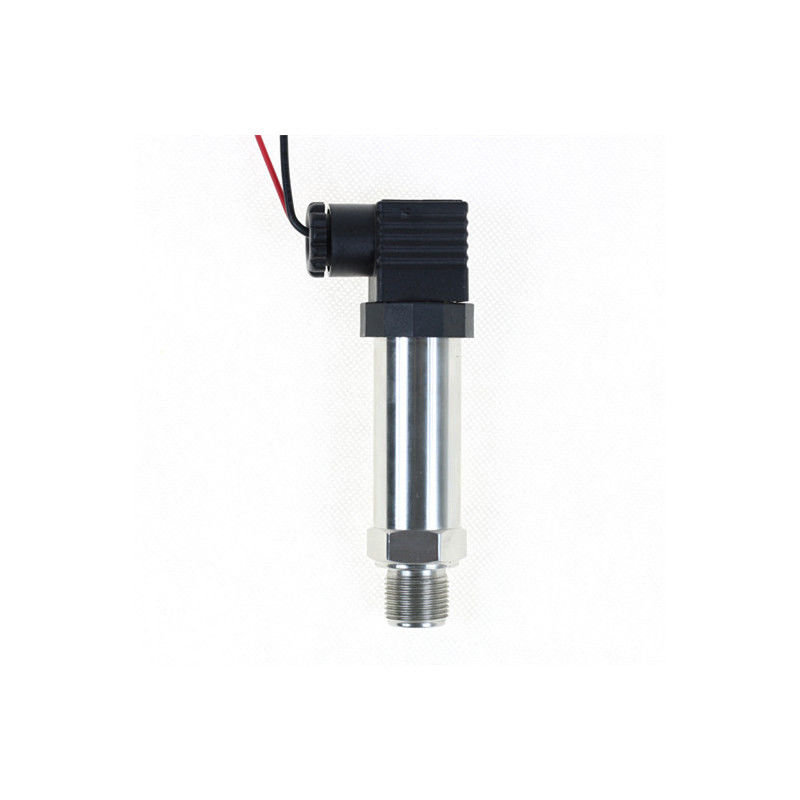

Water air pressure sensor price

Product Details:

Place of Origin:	Made In China
Brand Name:	SHELOK
Certification:	CE
Model Number:	YD31

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD15~$35/pc
Packaging Details:	Accuracy 0.1 water proof PH meter PH tester Standard export carton packing.
Delivery Time:	3 ~ 7 Working Days After Payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

Detailed Product Description

Product Name:	Water Air Pressure Sensor Price	Output:	4-20mA
Power Supply:	12~36VDC	Accuracy:	±0.1 %FS, ±0.25%FS
Pressure Range:	-100KPa~0~1KPa...20KPa...100MPa	Operating Temperature:	-40℃~85℃
Load Resistance:	≤(U-10)/0.02Ω	Type:	Pressure Senor
Application:	Water Oil Air Pressure Measurement	Warranty:	12 Months

Water air pressure sensor price

Description

Water air pressure sensor price is standard and most popular transmitter applied in air and liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. Through the high reliability of amplifying circuit and precise temperature compensation, and perfect assembly process to ensure the quality and performance of the product.This pressure transmitter is designed for industry application with perfect long term stability.

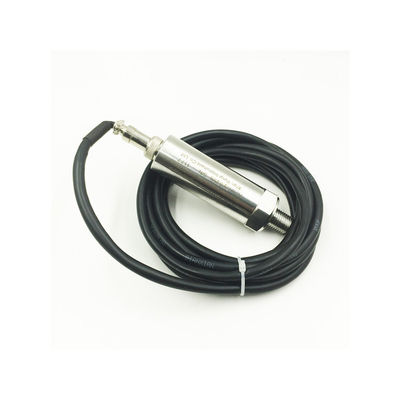

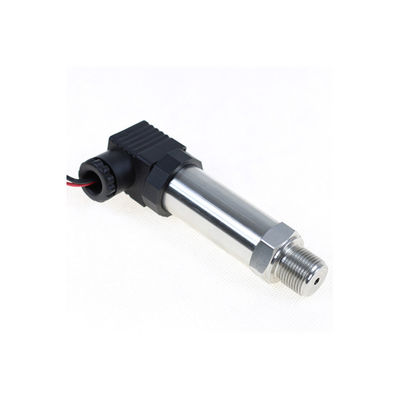

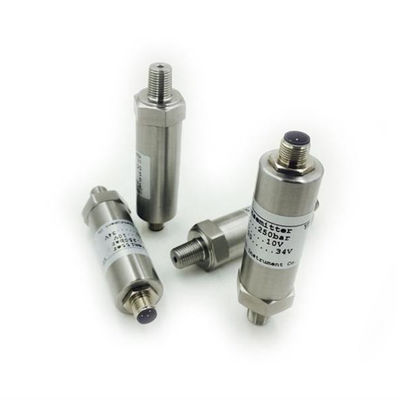

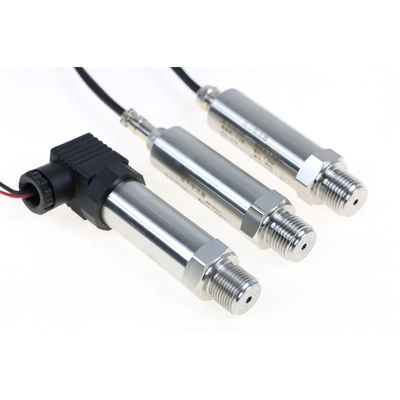

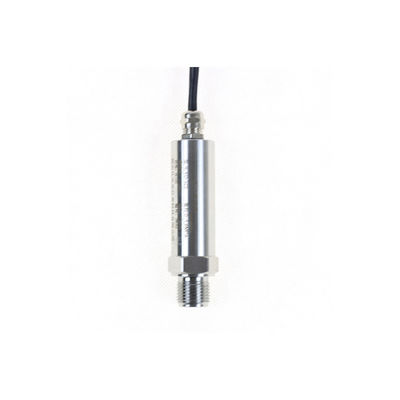

Detailed Images

Specification

Measure Range	-100kPa~0.....10kPa...100MPa
Pressure Type	gauge (G), absolute (A), sealed gauge (S)
Overpressure	150%FS
Accuracy	0.2%FS, 0.5%FS
Output signal	4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire)
Supply	12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc;5Vdc
Temp.coefficient of zero	±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Temp.coefficient of span	±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Compensated temperature range	-10~+70°C
Operating temperature range	-40~+125°C
Storage temperature range	-40~+125°C
Insulating resistance	≥100MΩ@100Vdc
Load resistance	R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output)
Electrical interface	DIN43650, option 1.5m cable connetion
Pressure interface	G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request)
Material of pressure membrane	316L stainless steel
Material of housing	1Cr18Ni9Ti stainless steel
Response time(10%~90%)	≤10ms
Shock/impact	10gRMS,(20~2000)Hz/100g,11ms
Protection	IP65

Dimension

Application

Industrial field pressure control process, supporting the automotive, central air conditioning, refrigeration equipment, water treatment works, environmental purification, hydraulic and pneumatic control, aerospace, petrochemical industry, food industry, medical equipment, marine and shipbuilding industry, water conservancy,hydropower , power plants and other industries. almost can be used in various industrial fields, suitable for all stainless steel, 316L compatible media, and by choosing different seals to be compatible with more media. Different pressure and electrical connections can be selected.

Selection

Model YD31
	Pressure Range (0-X)KPa or MPa: -100kPa~0.....10kPa...100MPa
		Pressure type G Gauge D Differential A Absolute
			Output signal E 4-20mA F 0-5Vdc J 1-5Vdc K 0-10Vdc V 1-10Vdc
				Power Supply A1 10~36VDC
					Electrical Interface B1 Hirschman connector B2 Directly cable connection B3 Pin aviation connector
						Display D1 No display D2 LED display
							Pressure Interface C1 1/2NPTM C2 1/4NPTM C3 M20x1.5M C4 G1/2M C5 G1/4M Cx other customized
