| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD320 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD15~$75/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | -0.1....0~0.01... ~100MPa | Accuracy: | 0.1% FS, 0.2% FS, 0.5% FS |
|---|---|---|---|
| Power Supply: | 24DCV (9 ~ 36DCV) | Output Signal: | 4~20mA 0~10/20mA 0/1~5VDC ,RS485 |
| Interface: | M20*1.5 | Material: | 316L |
| Operating Temperature Range: | -40℃~120℃ | Item Name: | Cheap Gas Absolute Smart 4-20ma Pressure Sensor |
Descriptioncheap gas absolute smart 4-20ma pressure sensor:
Diffusion of silicon pressure transmitter ,smart pressure transmitter is standard and most popular transmitter applied in air and liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. Through the high reliability of amplifying circuit and precise temperature compensation, and perfect assembly process to ensure the quality and performance of the product.This pressure transmitter is designed for industry application with perfect long term stability.
Features cheap gas absolute smart 4-20ma pressure sensor
√ Piezoresistive pressure sensor
√ Corrosion-resistant pressure transmitter
√ Pressure range: -100kPa~0...0~10kPa...100MPa
√ Gas or dilute liquid compatible with 316LSS
√ High reliability and stability
√ Output signal optional
√ Connection mode of connector or lead direct
√ Can add adjustable zero and full function as customer’s request
√ A variety optional of pressure interface
And so on...
Product Parameter cheap gas absolute smart 4-20ma pressure sensor :
1.Range: 0 ~ -1, -10, -50, -100KPa, -100KPa, -50KPa ~ 0Kpa
2.Overall accuracy: 0.1% FS, 0.2% FS, 0.5% FS
3.Output signal: 4 ~ 20mA (two-wire), 0 ~ 5V, 1 ~ 5V, 0 ~ 10V (three-wire)
4.Supply voltage: 24DCV (9 ~ 36DCV)
5.Storage temperature: -40 ~ 120 ℃
6,Working temperature:-20℃~80℃
7.Load Resistance: Current Output: maximum 800Ω; voltage output: more than 50KΩ
8.Insulation resistance: more than 2000MΩ / 50VDC
9.Response time: <1ms
10.Sealing class: IP65
11.Long-term stability: 0.1% FS / year
12.Vibration effects: in the mechanical vibration frequency 20Hz ~ 1000Hz, the output changes less than 0.1% FS
13.Electrical connection: Hirschmann connector (other optional)
14.Threaded connection: M20 × 1.5, other threads can be designed based on customer requiremen

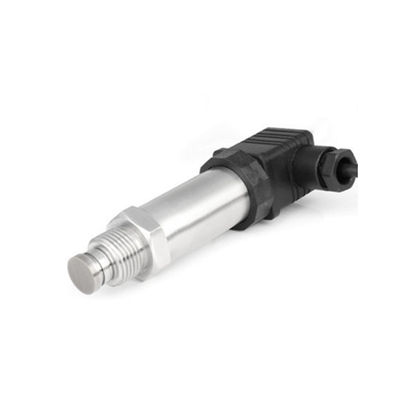

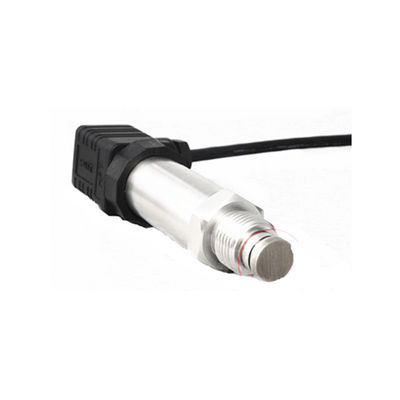

Diffusion of cheap gas absolute smart 4-20ma pressure sensor:

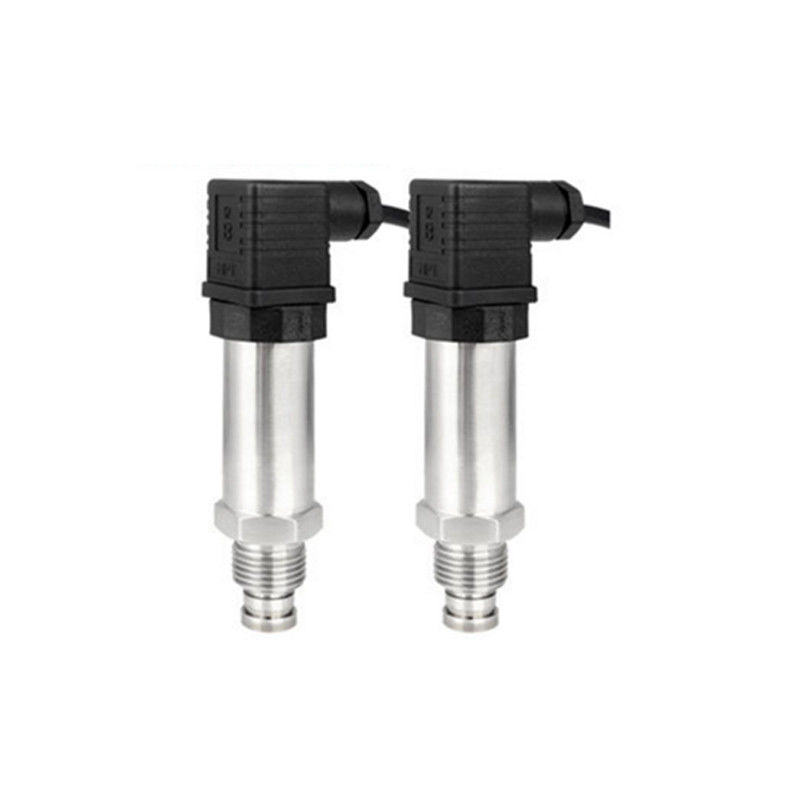

Different type cheap gas absolute smart 4-20ma pressure sensor:
Diffusion of cheap gas absolute smart 4-20ma pressure sensor drawing:
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
