| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 3051 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD195~$365/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measurement Type: | Differential, Gage, Absolute, Level, Flow | Pressure Range: | -700kpa~700kpa |
|---|---|---|---|
| Output Signal: | 4-20mA Hart | Thread Connection Type: | 1/2 Or 1/4npt |

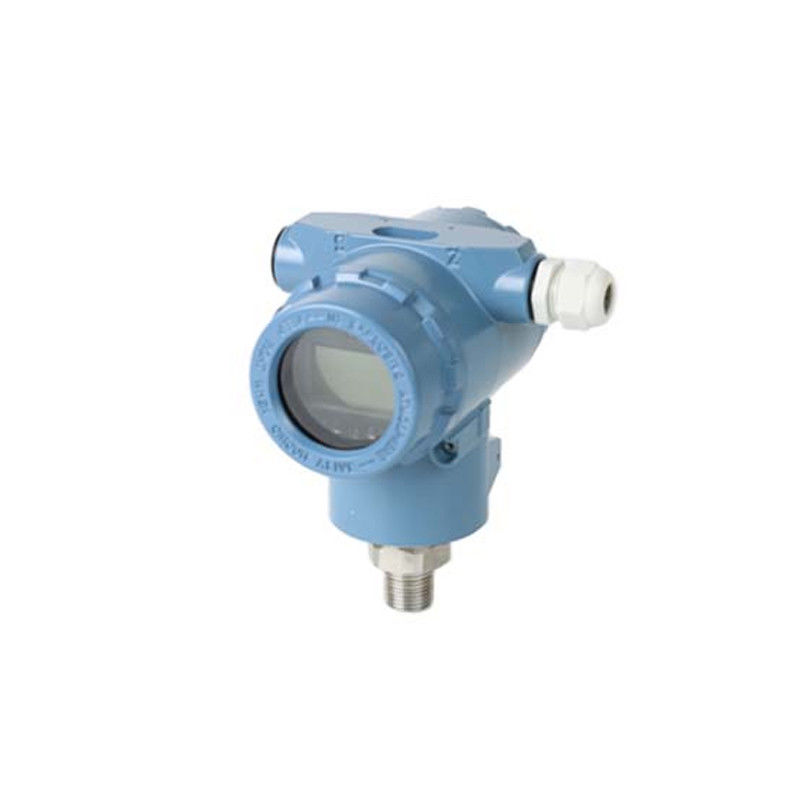

3051 Digital Pipe Pressure Sensor
Description
3051 Intelligent 4~20mA HART Capacitive Differential industrial pressure transmitter with the advanced micro processing technology and digital communication technology, high precision, high stability,alibrate parameters through computer or panel keys,remote parameter setting, remote control, self diagnosis and other functions,easy to operate with HART protocol.
Product Feature

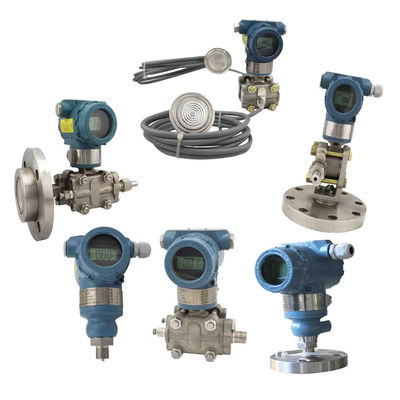

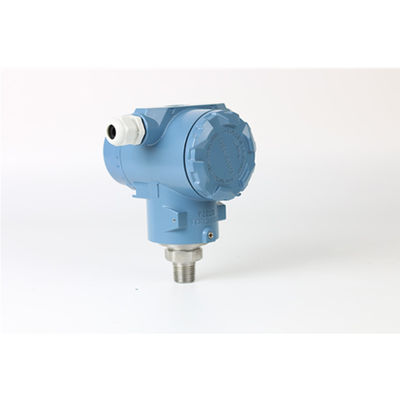

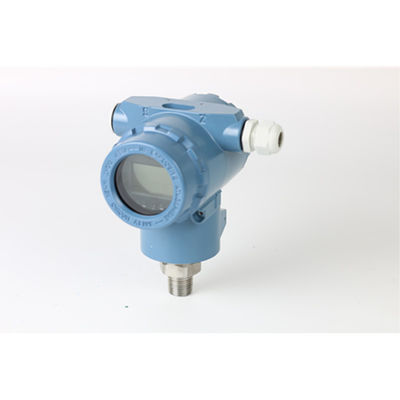

Detailed Images
Specification
| 3051 digital pipe pressure sensor | |
| Measuring Rang | Differential Pressure: 0~1Kpa, 6Kpa, 40Kpa, 200Kpa......2Mpa, 8Mpa |
| Gauge Pressure: 0~40Mpa | |
| Absolute Pressure | 0~40Mpa |
| Turn Down Ration | 40:1 |
| Application | Different Pressure, Gauge Pressure, Absolute Pressure |
| Accuracy | ±0.1, 0.3, 0.5% of Span |
| Process Fluid | Liquid, Gas, Vapor |
| Temperature Drift | Zero Drift: 0.5%FS/50℃ |
| Span Drift:0.7%FS/50℃ | |
| Stability | ±0.1%/year |
| Working Temperature | -40℃ ~ 100℃ |
| Ambient Temperature | -40℃ ~ 85℃ |
| Storage Temperature | -40℃ ~ 100℃ |
| Power Supply | 9~45V DC |
| Output | 4~20mA 2 wires Hart Protocol |
| Max Pressure | 40Mpa |
| Respond Time | 200ms |
| Humidity Limits | 0 to 100% Relative Humidity |
| Turn On Time | 2 Seconds With Minimum Damping |
| Display | LCD LED |
| Electrical Connections | 1/4" Npt (M20 Conduit Threads) |
| Temperature Effect | ±0.18% of Span Per 200C |
| Process Connection | 1/4-18Npt |
| Flange | SS304 SS316 |
| Diaphragms | SS316L / Hastelloy B / Hastelloy C / Monel / Tantalum |
| Wetted O-Rings | Buna N/Viton/PTFE |
| Bolts & Nuts | Carbon Steel / SS316 |
| Mounting Bracket | Carbon Steel / SS304 or SS316 |
| Name/Tag Plate | SS304 / SS316 |
| Coverter Housing | Low Copper Cast Aluminium Alloy With Polyurethane |
| Fill Fluid | Silicone / Fluorine Oil |
| Casing Protection | IP67 |
| Explosion Proof | Exd II BT4 Exia II CT6 |
| Process Connection | Flange, Direct, Side Mounted, Diaphragm, Insert Type |
| Weight | Approximately 3.5KGS |
Related Products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
