| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | P140 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD15~$25/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Medium: | Liquid Or Gas | Output Signal: | 0-5v, 0-10v, 4-20mA |
|---|---|---|---|
| Pressure Range: | 0-60bar Or Other Custom | MOQ: | 1 Piece |
| Warranty: | 1 Year |
Automobile Mini Hirschman Pressure Transmitter
Description
* Automobile, Compressor and Refrigeration Industry
* Engineering Machinery
* Pressure Control and Monitor
* Energy and water treatment system
* Iron and steel industry, light industry
* Pump, Fitness equipment, Household appliances
* Hydraulics and pneumatics
* Liquid level measurement
* Test equipment

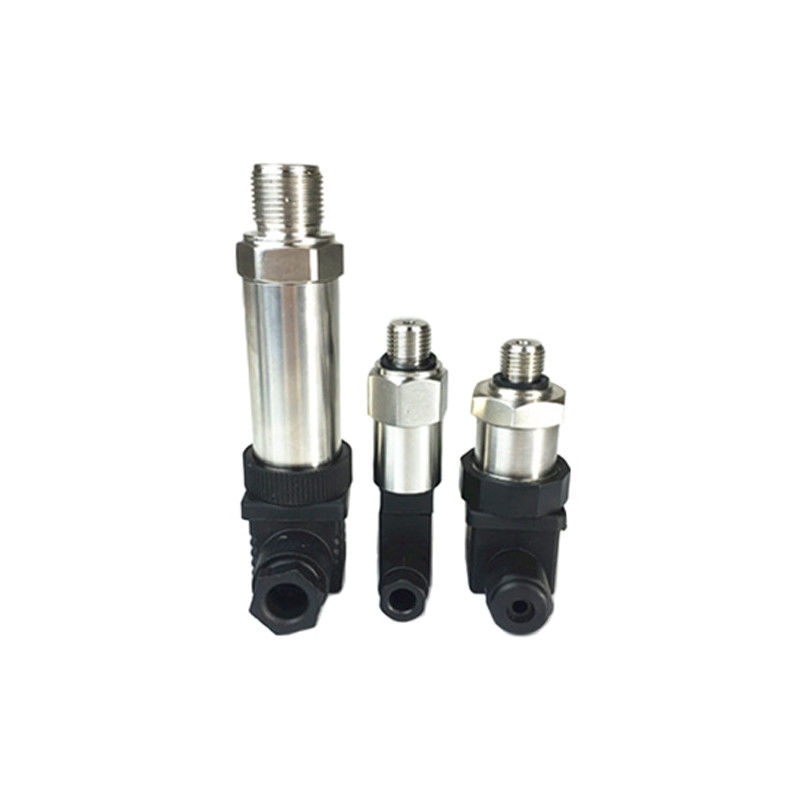

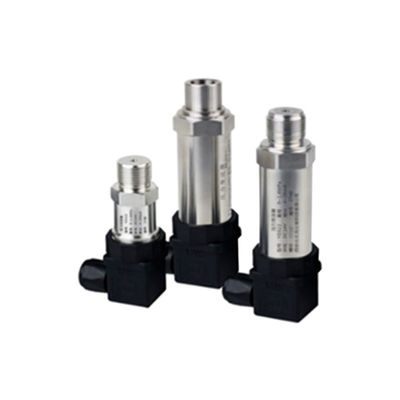

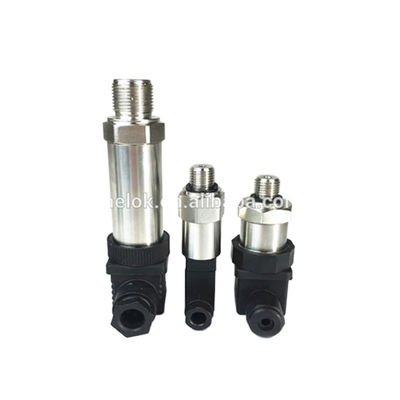

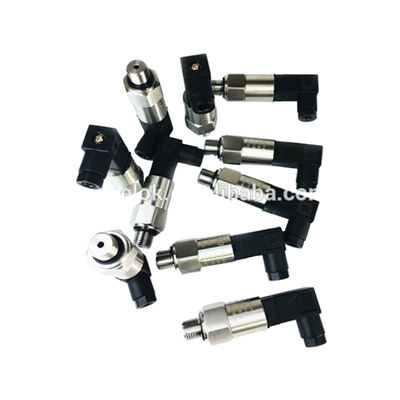

Detailed Images
Specification
| Water treatment system mini pressure transducer sensor | |
| Pressure Range | 0~-1bar, 2bar, 5bar, 10bar, 16bar, 20bar, 25bar, 30bar |
| Maximum Pressure | 2bar, 2bar, 4bar, 10bar, 20bar, 32bar, 40bar, 50bar, 60bar |
| Burst Pressure | 4bar, 4bar, 8bar, 20bar, 40bar, 64bar, 80bar, 100bar, 120bar |
| Pressure applied up to the maximum rating will cause no permanent change in specifications but may lead to zero and span shifts | |
| Exceeding the burst pressure may result in destruction of the transmitter and possible loss of media | |
| Materials | Gas or liquid compatible with ceramic |
| O-ring | NBR (FKM or EPDM) |
| Signal Output | 0~4.5V, 1~5V, 0~5V, 3-Wire; 0~10V, 3-Wire; 4~20mA, 2-Wire |
| Power Supply | 5V with signal output 0.5~4.5V/1~5V/0~5V |
| 12~32V with signal output 0~10V | |
| 9~32V with signal output 4~20mA | |
| Response Time | ≤2mS |
| Isolation Voltage | DC 500V |
| Accuracy | ≤1% FS@25℃ (Includes linearity, hysteresis and repeatability) |
| ≤3% FS@(-40℃ ~ +125℃) (limit point calibration) | |
| 1 year stability | ≤0.05% F.S |
| Permissible Temperature of | |
| Medium | -20℃ ~ +125℃ |
| Ambient | -40℃ ~ +100℃ |
| Storage | -40℃ ~ +100℃ |
| Compensated Temperature | -20℃ ~ +125℃ |
| Mean TC of Zero | Typical: 0.03%FS/℃ |
| Maximal: 0.05%FS/℃ | |
| CE - Conformity | |
| Test Standard | EN 55022:2010/AC:2011 |
| EN 61000-3-2:2014 | |
| EN 61000-3-3-2013 | |
| EN 55024:2010 | |
| EMC Directive | 2014/30/EU |
| Shock Resistance | 1000g according to IEC 60068-2-27(Mechanical Shock) |
| Vibration Resistance | 20g according to IEC 60068-2-6(Vibration under resonance) |
| Wiring Protection | Protected against reverse polarity, overvoltage and short circuit |
| Weight | 70g |
| Connection | G1/4 (NPT1/4, G1/4 and others available) |
Features
* Small size easy installation
* Stainless steel case sturdy and durable
* Wide Temperature range: -40~125℃
* Durable thin film sensor technology
* Pressure Range: -1bar ~ 60bar
* 0.5~4.5V, 1~5V, 0~5V ratiometric outputs
* 0~10V, 4~20mA, others available
* Highly resistant to pressure spikes and vibration
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Packing & Shipping
