| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | 311 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD35~$65/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measurement Range: | 0--100Mpa | Accuracy: | 0.2%FS, ±0.5%FS |
|---|---|---|---|
| Output Signal: | 4-20mA (2 Wire), 0-10V, 0-5V, 1-5V, 0-10V | Supply Power: | 10-36VDC (Standard 24VDC) |
| Electrical Connection: | Air Plug Connector | MOQ: | 1 Piece |
| Warranty: | 2 Years |
3 Pins Aviation Connector 0-5 Pressure Transmitters, Differential Pressure Sensor
Description
Ceramic pressure sensor without liquid transmission, the pressure directly on the front surface of the ceramic diaphragm, so that the diaphragm has a small deformation, thick film resistance printed on the back of the ceramic diaphragm, connected into a Wheatstone bridge (closed bridge), due to the piezoresistive effect of the varistor, the bridge is generated with a high linearity proportional to the pressure, and the voltage signal is proportional to the excitation voltage. The voltage signal is converted to a 4~20 mA current signal through the modulation amplifier circuit.

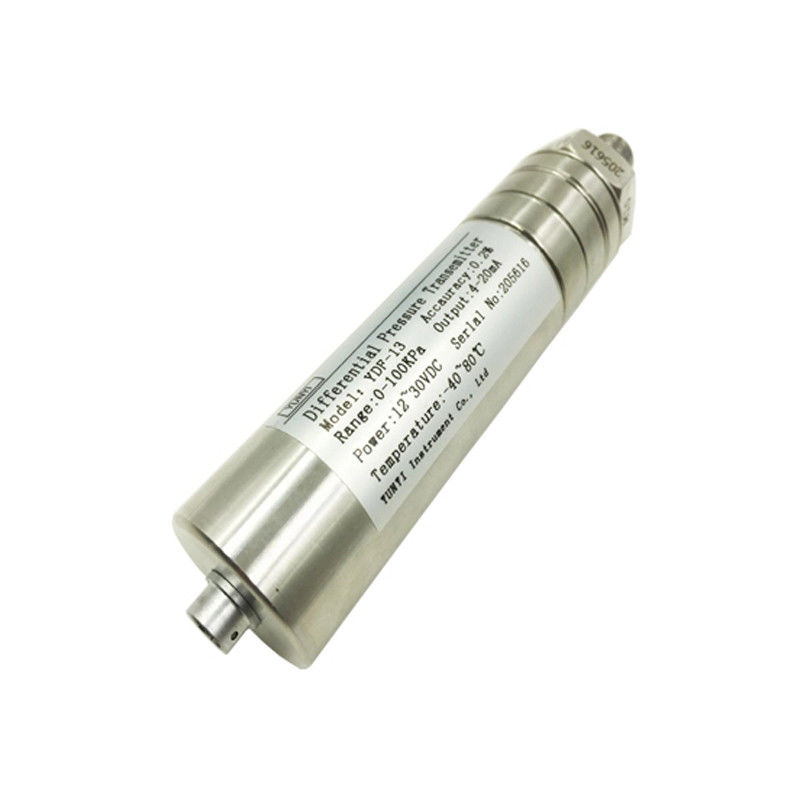

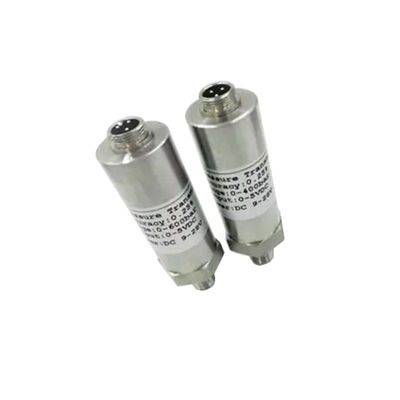

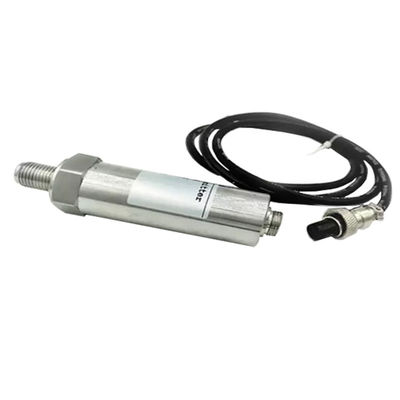

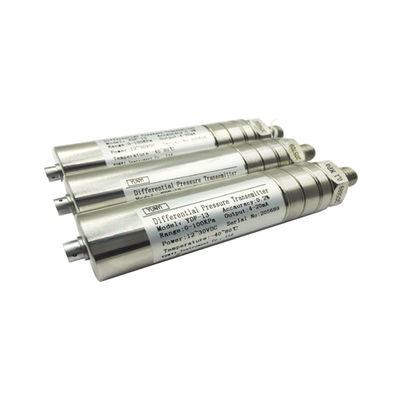

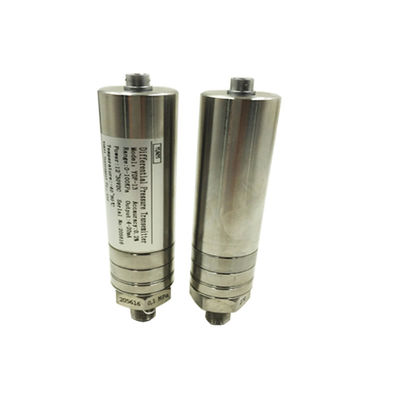

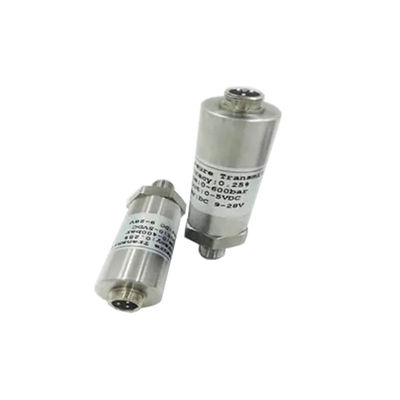

Detailed Images
Specification
| 3 Pins Aviation Connector 0-5 Pressure Transmitters, High Temperature Pressure Sensor | |
| Measure Range | 100KPa~60MPa |
| Accuracy | 0.2, 0.5 (20°C) |
| Output | Current, Voltage, Digital signal optional |
| Material | Ceramic + stainless steel 316 |
| Overload Pressure | 2 Times the basic overload |
| Long stability | ≤±0.2%FS/Year |
| Seal | Fluorine rubber seal non-internal seal |
| Thread | Optional |
| Sound frequency | 200HZ |
| Housing material | Stainless steel structure |
| System pressure | 1000% FS |
| Temp.compensation Range | 0±70/℃ |
| Temperature | Medium temperature -30 ~ 100 °C Ambient temperature -30 ~ 80 °C |
| Protection | IP65 or IP67 High magnetic compatibility |
| Warming | ±0.08FS/°C (4~20mA output) |
| Pressure type | Absolute or Sealed gauge pressure |
Features
* all stainless steel shell, excellent corrosion performance
* Wide range of pressure measurement
* natural frequency up to 1MHz
* work stable
* anti-interference ability
* imported components, reliable performance. The following are the same as the "
* small size, light weight, type complete, cost-effective
* wide range of measuring media
