| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YD38 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD35~$85/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measure Range: | 0-100mpa | Accuracy: | 0.25% FS, 0.5% FS, 1.0% FS |
|---|---|---|---|
| Output Signal: | 4-20mA | Supply: | 24DCV (9 ~ 36DCV) |
| Connectionane: | M20*1.5 | Site Display: | LED Three Half 0000 - 1999 |
| Product Name: | LED/LCD Display Industrial Absolute Pressure Transmitter |
LED/LCD display Industrial absolute pressure transmitter price
Description
absolute pressure transmitter is design for the site with bad environment. Adopt silicon piezoresistive sensor, micro amplifier processing circuit. With the characteristic of vibration resistance and good impact resistance, high precision, stability. Widely used in pressure and level measurement and process control of petroleum, chemical and metallurgical, food industries

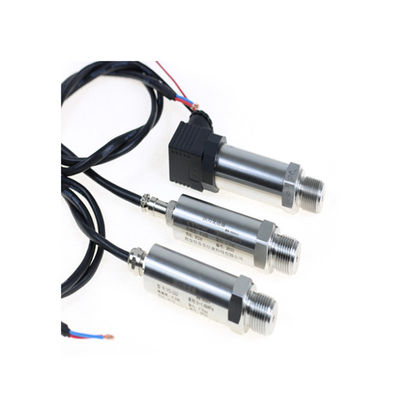

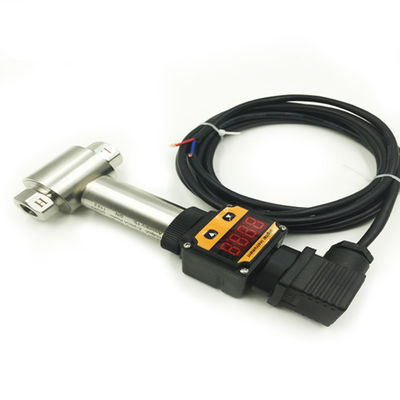

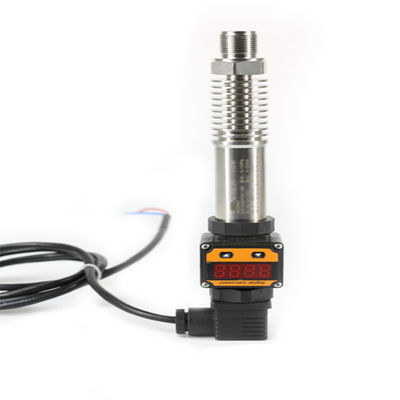

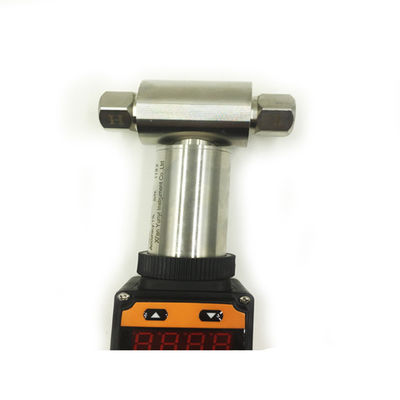

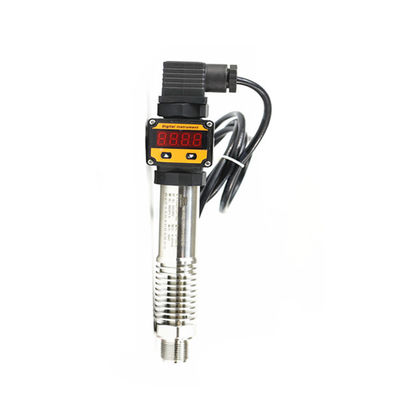

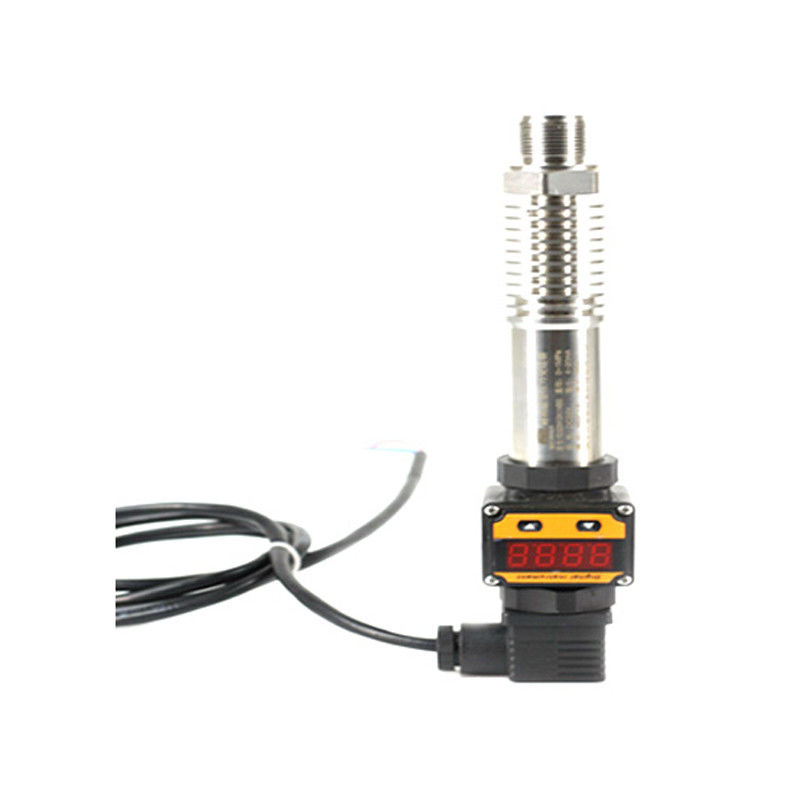

Detailed Images
Specification
| LED/LCD display Industrial absolute pressure transmitter price | |
| Measure Range | -0.1~0~60Mpa |
| Accuracy | ±0.2%FS, ±0.5%FS |
| Output | 4-20mA, 1 ~ 5V DC |
| Power supply | 12-36V DC, standard 24V DC |
| Overload pressure | ≤150%FS |
| Long stability | ≤±0.2%FS/Year |
| Temperature compensation | -30℃ ~ +80℃ |
| Medium temperature | -30℃ ~ +80℃ |
| Environment Temperature | -30℃ ~ +80℃ |
| Temperature drift | ±0.03%FS/℃ |
| Ambient humidity | ≤85%RH |
| Housing material | Stainless steel structure |
| Medium | The gas, liquid without corrosion on stainless steel liquid |
Features
Stainless steel high strength shape structure
Shape structure diversification, can be customized
Strong anti-interference, good long-term stability
LED, LCD header display can be selected
Drawing
