| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 19S |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD5~$15/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Output: | 4-20mA | Power Supply: | 12~36VDC |
|---|---|---|---|
| Accuracy: | ±0.1 %FS, ±0.25%FS | Pressure Range: | -100KPa~0~1KPa...20KPa...100MPa |
| Operating Temperature: | -40℃~85℃ | Load Resistance: | ≤(U-10)/0.02Ω |
| Type: | Pressure Senor | Product Name: | Water Oil Pressure Sensor 0-10V |
| Warranty: | 12 Months | Medium: | 316LSS |

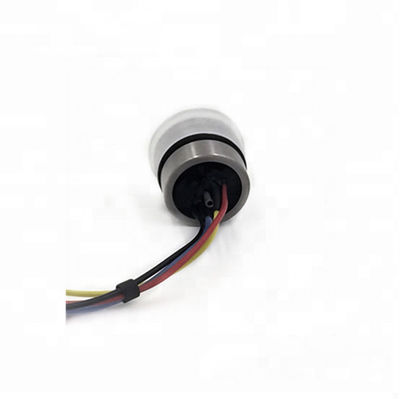

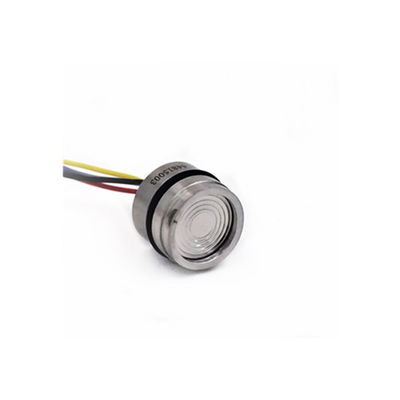

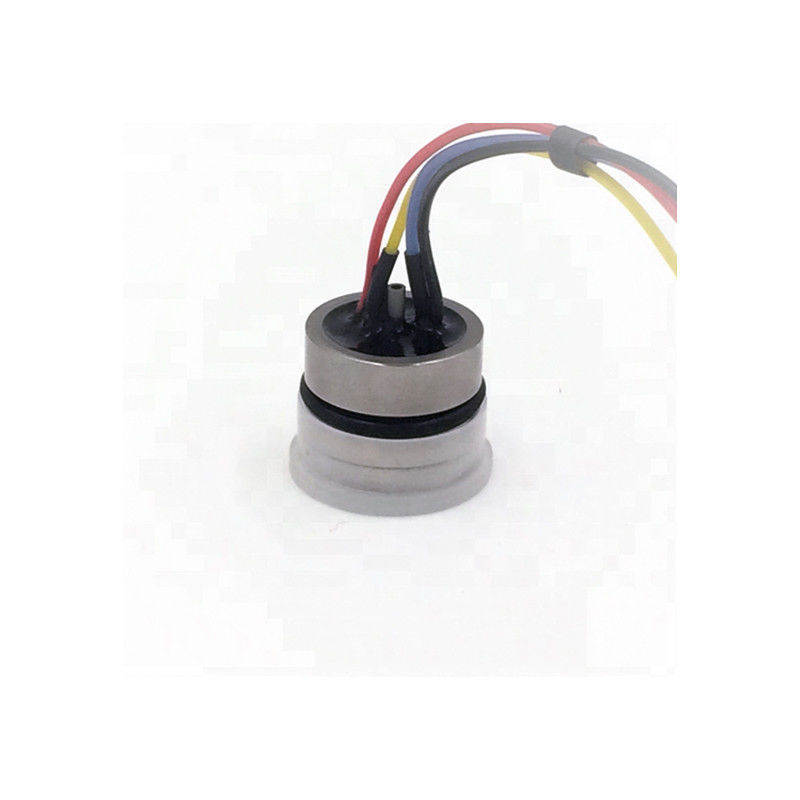

Water pressure sensor/oil pressure sensor 0-10V is piezoresistive silicon pressure sensor, the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. The sensingelement uses 316L stainless steel to packing and thick film circuit to do temperature compensation and zero correction. It has high reliability and stability
Supply:1.5mADC
Input impedance:3KΩ~6KΩ
Output impedance:2.5KΩ~6KΩ
Insulation resistance:≥100MΩ/50VDC
Insulation voltage:500VAC between the housing and electrical connection will not cause damage
Medium compatible: liquid, gas compatible with 316L stainless steel
Water pressure sensor/oil pressure sensor 0-10V :
Piezoresistive silicon sensing element
Full316LSS,Full Titanium or Hastelloy diaphragm
O-ring mount
High Accuracy and stability
Measurement pressure of gas and liquid Petroleum exploitation
Water supply,warm supply of town
Process control system
Aviation and navigation inspection
Hydraulic pressure
Automotive oil pressure, automotive brake system
Data 1:
| Parameters |
Range:0~10KPa,20KPa,35KPa,70KPa,100KPa,200KPa,350KPa,700KPa, 1MPa,2MPa, 3.5MPa , 7MPa, 10MPa, 20MPa, 35MPa, 60MPa, 70MPa, 80MPa, 90MPa, 100MPa |
|||
| Typ. | Max. | Units | ||
| Pressure Non-linearity |
±0.15 (0~2MPa) ±0.2 (3.5MPa ~100MPa) |
±0.3 | %F.S | |
| Pressure Repeatability and Hysteresis | 0.02 | 0.05 | %F.S | |
| Zero Output | 0±1 | 0±2 | mV | |
| Span Output | ≤20KPa | 50±10 | 50±30 | mV |
| ≥35 KPa | 100±10 | 100±30 | mV | |
| Temperature Error zero | ≤20KPa | ±1 | ±2 | %F.S |
| ≥35 KPa | ±0.5 | ±1 | %F.S | |
| Temperature Error-Span | ≤20KPa | ±1 | ±2 | %F.S |
| ≥35 KPa | ±0.5 | ±1.0 | %F.S | |
| Overload Pressure | 3X Rated range or 120MPa, whichever is less | Rated range | ||
| Operating Temperature Range | -20~80 | °C | ||
| Compensated Temperature Range | 0~70,0~50(Range≤20KPa) | °C | ||
| Storage Temperature Range | -40~125 | °C | ||
Established with 10 million capital in 2015, Xi'an Shelok Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Specialties
pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor
1, more than 10 years industry background
The original organization is Xi'an Precise Instruments Factory, established in 2007, and mainly produce pressure gauge, stainless steel pressure gauge, anti-vibration pressure gauge, pressure transmitter, pressure switch, pressure calibrator, and so on.
In 2013, Yunyi Group is established for development command, and process measurement instruments about water, flow, temperature are added in our product catalogue.
In 2015, Xi'an Shelok instruments Co., Ltd is estalished with 10 million capita for meeting the international business expanding demand.
2, a company of design and manufacture capability
Mainly focus on design and customized solution offer, and combining our professional industry background and our capability of supply chain management in local market, more comprehensive products and services could be offered.
3, R&D team + cooperation with colleges and universities
Keeping our capability of technology innovation improved makes us available to meet various technical challenges
4, three inspection steps + good warranty service
Strict inspection operation process keeps our products qualified, and clearly warranty policies help customer's solve after-sale problems and lower their cost.
5, sample first policy.
By offering most suitable proposal to help customers maximize their profit.
6, employees with + 4 years international experience are more than 100%
Professional and effective international business operation offers better service expericence
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
