| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 3051 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD185~$315/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Differential Pressure Measuring Instrument Sensor Transmitter | Accuracy: | 0.075 |
|---|---|---|---|
| Output Signal: | 4-20mA, RS485 | Pressure Range: | 0~3~10MPa |
| Ambient Temp: | -40~85℃ | Medium Temperature: | -50~400℃ |
| Weight: | 3.3kg |

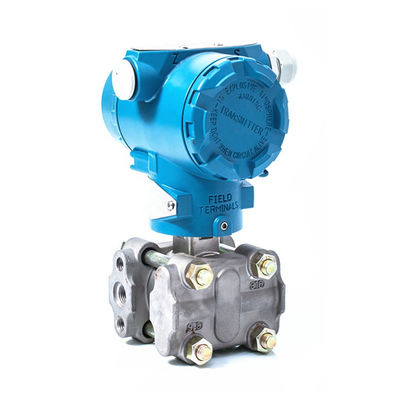

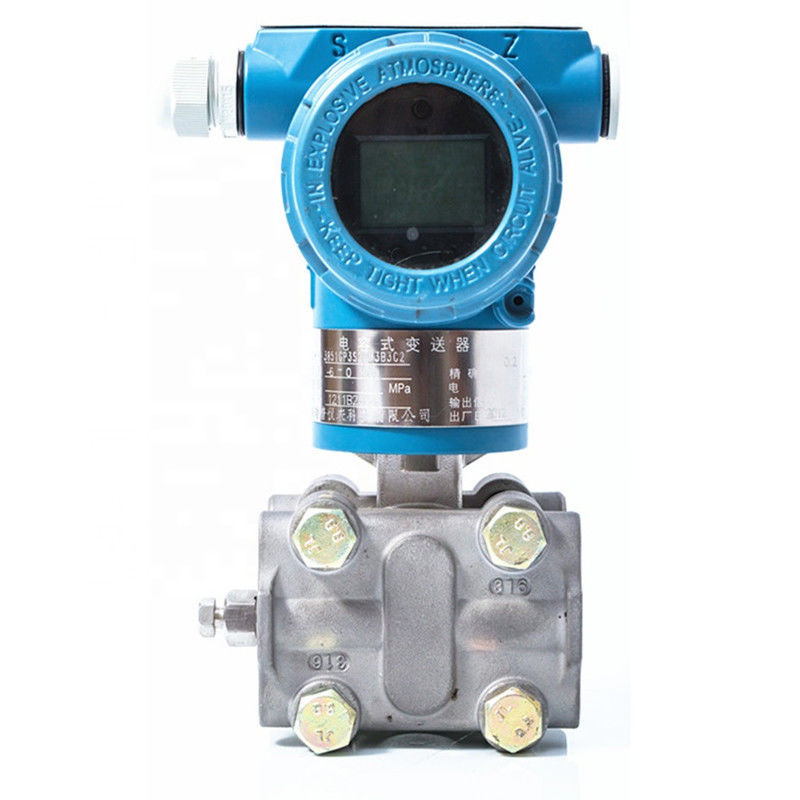

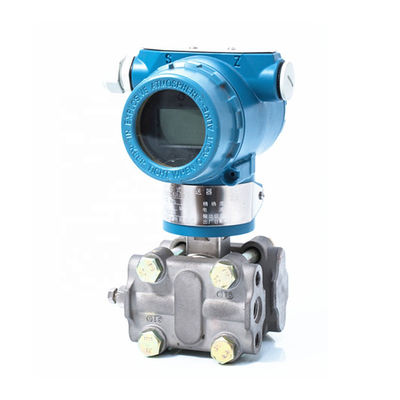

differential pressure measuring instrument sensor transmitter
Description differential pressure measuring instrument sensor transmitter:
3051 pressure transmitter 4-20ma delivers unparalleled reliability, performance and safety to increase your plant profitability. 3051pressure transmitter 4-20ma means a stronger bottom line. The comprehensive offering enhances your pressure, level and flow applications from simple measurement to stringent SIL2 safety compliance.
Application differential pressure measuring instrument sensor transmitter
The 3051 Series Transmitters are offered in a variety of configurations for differential, gauge, liquid-level, flow and specific gravity measurement applications.
Specifications differential pressure measuring instrument sensor transmitter
Performance up to 0.1% accuracy
Five year installed stability of 0.125%
Calibrated spans from 0.3 to 10000 psi (10,3 mbar to 689 bar)
Multiple process connections available
316L SST and Hastelloy C276 process isolators
| Measurement Type | Differential, Gage, Absolute, Level, Flow |
| Output | 4-20 mA HART |
| Reference Accuracy | ± 0.5% ,0.1% Optional |
| Total Performance | ± 0.15% of span |
| Long Term Stability | ± 0.125% of URL for 5 years |
| Rangedown | 100:1 |
