| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | ACS-150B |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $2650~$2850/pc |
| Packaging Details: | High Quality Portable Dry Block Temperature Calibrator Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs/Month |
| Product Name: | Smart Dry Block Temperature Calibrator | Model No.: | ACS-150B |
|---|---|---|---|
| Temperature Range: | -30℃ ~ 150℃ | Display Resolution: | 0.001℃ |
| Accuracy: | ±0.1℃ | Temperature Stability: | ≤±0.05℃/15mins |
| Horizontal Temperature Field: | ≤±0.1℃ (using A Special Soaking Block For Temperature Field Test) | Vertical Temperature Field: | The Deviation Within 40mm From The Bottom Of The Soaking Block Hole Is ≤0.5℃ |
| Insertion Depth: | 150mm (can Be Customized) | Aperture Of Soaking Block: | Standard 4 Holes: (Ø4, Ø6, Ø8, Ø10) Mm Can Be Customized |
| Outer Diameter Of Soaking Block: | Ø30mm | Maximum Power: | 600W |
| Power Supply: | 220VAC/50Hz | Dimensions: | (360×230×400)mm |
| Weight: | 10KGS | Configuration: | 1 Main Equipment, 1 Aluminum Alloy Box, 1 Power Cord, 1 Soaking Block, 1 Handle Book, 1 Set Of Signal Lines, 1 Certificate Of Conformity |
Smart Intelligent Portable Dry Block Temperature Calibrator
Product Description
The intelligent smart dry block temperature calibrator (-30～150)℃ is the second-generation intelligent temperature calibration equipment launched by Hengsheng Weiye. It is suitable for on-site use and can be widely used in industrial and mining enterprises, scientific research institutions, colleges and universities, military industry, measurement and other departments The main calibration temperature components (thermocouples, platinum resistance, thermometers), temperature transmitters (sensors), temperature switches and temperature instruments.

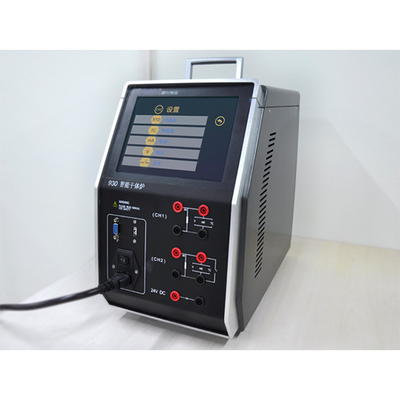

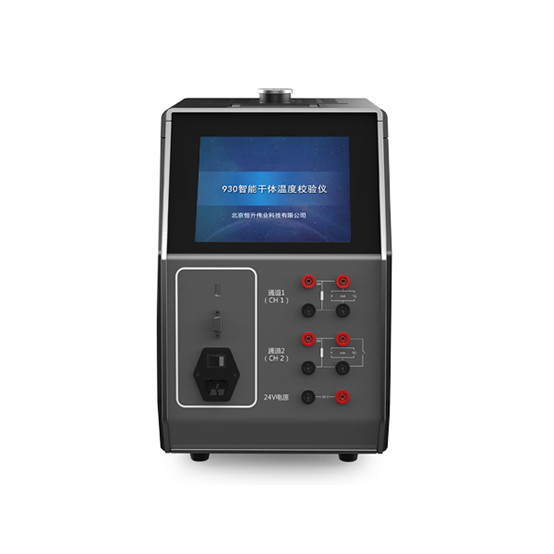

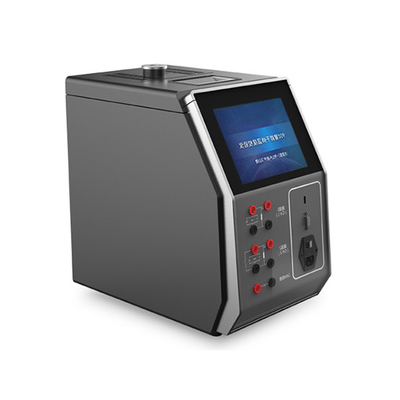

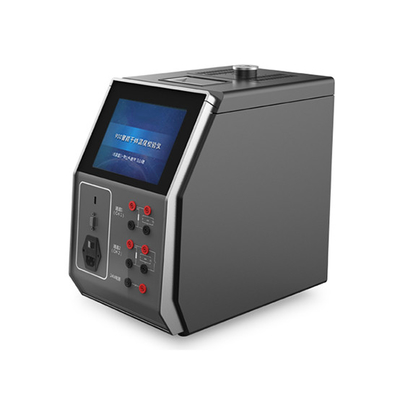

Detailed Images
Specification
| Smart Dry Block Temperature Calibrator | |
| Model No. | ACS-150B |
| Temperature Range | -30℃ ~ 150℃ |
| Display Resolution | 0.001℃ |
| Accuracy (Temp. Deviation) | ±0.1℃ |
| Temperature Stability | ≤±0.05℃/15mins |
| Horizontal Temperature Field | ≤±0.1℃ (using a special soaking block for temperature field test) |
| Vertical Temperature Field | The deviation within 40mm from the bottom of the soaking block hole is ≤0.5℃ |
| Insertion Depth | 150mm (can be customized) |
| Aperture of Soaking Block | Standard 4 holes: (Ø4, Ø6, Ø8, Ø10) mm can be customized |
| Outer Diameter of Soaking Block | Ø30mm |
| Maximum Power | 600W |
| Power Supply | 220VAC/50Hz |
| Dimensions | (360×230×400)mm |
| Weight | 10KGS |
| Configuration | 1 main equipment, 1 aluminum alloy box, 1 power cord,
1 soaking block, 1 handle book, 1 set of signal lines, 1 certificate of conformity |
Electrical Measurement Indicators
| Smart Portable Dry Block Temperature Calibrator | ||||
| Function | Measuring Range | Maximum Allowable Error | Resolution | Remark |
| Millivolt | -75mV~75mV | ±(0.01%RD+0.005%FS) | 0.1μV | None |
| DC voltage | -30 V ~30V | ±(0.01%RD+0.005%FS) | 0.1mV | None |
| DC Current | -30mA~30mA | ±(0.01%RD+0.005%FS) | 0.1μA | None |
| Resistance | 0Ω~400Ω | ±(0.01%RD+0.005%FS) | 1mΩ | 4 Wires |
| Resistance | 0Ω~4000Ω | ±(0.01%RD+0.005%FS) | 10mΩ | 4 Wires |
| Switch Measurement | Short circuit resistance<100Ω | Response time<10ms | 0.01℃ | None |
| Voltage output | DC 24V | ±0.5V | -- | -- |
| Galvanic couple | S,B,R,K,E,J,T,N | |||
| Resistance | Pt1000,Pt100,Pt10,Cu100,Cu50 | |||
| Standard measurement | Standard Pt25, standard Pt100 and standard (S) even three standards, the parameters of the three standards can be configured separately | |||
| Channel mode | Dal channel | |||
Features
◆Stable temperature control, superior performance in technical aspects such as horizontal temperature field and vertical temperature field.
◆Digital temperature control, rapid heating, rapid cooling, convenient setting, good temperature control stability.
◆The soaking block can be replaced and customized.
◆Small size, light weight, easy to carry, no pollution.
◆Measure DC voltage, millivolt voltage, DC current, resistance, switch on-off and other signals;
◆It can measure 8 kinds of thermocouples (S, B, R, K, E, J, T, N) and five kinds of thermal resistances (Pt1000, Pt100, Pt10, Cu100, Cu50). The measurement thermocouple provides cold junction compensation function. There are various wire system options for thermal resistance measurement, which is convenient for users to use;
◆The instrument has the function of measuring the standard, and can measure three standards: standard Pt25, standard Pt100 and standard (S) couple, and can configure the parameters of the three standards respectively;
◆Provide 24V power supply when measuring transmitter signal, which is convenient and fast;
◆This instrument has a dual-channel measurement function, which does not interfere with each other and can be used at the same time.
◆It can touch the large screen display window, which is intuitive, eye-catching and easy to operate;
◆Digital display, the highest resolution of temperature display is 0.001℃ (adjustable);
◆The measurement resolution and temperature control resolution of the instrument can be set separately without affecting each other;
◆Small size, light weight, easy to carry, no pollution.
◆Built-in load short circuit, load open circuit, sensor protection and a series of protection functions
◆Intelligent calibration, support 232/USB communication.
Dimension
Soaking Size
|
Aperture of Soaking Block |
|
|
4 Holes As Standard |
Other Custom Apertures |
|
∮4mm ∮6mm ∮8mm ∮10mm |
1.∮4mm ∮6mm ∮6mm |
|
|
2.∮4mm ∮8mm ∮8mm |
|
3.∮4mm ∮6mm ∮10mm |
|
|
4.∮4mm ∮8mm ∮8mm |
|
|
5.∮6mm ∮6mm ∮8mm |
|
|
6.∮8mm ∮10mm ∮10mm |
|
|
7.∮10mm ∮12mm |
|
|
8.∮4mm ∮4mm ∮8mm |
|
|
9.∮4mm ∮8mm ∮8mm |
|
|
10.∮4mm ∮8mm ∮10mm |
|
|
11.∮6mm ∮6mm ∮6mm |
|
|
12.∮4mm ∮8mm ∮10mm |
|
|
13.∮4mm ∮12mm |
|
|
14.∮8mm ∮12mm |
|
|
Remark: |
|
Application
❶ Industrial and mining enterprises
❷ Scientific research institutions
❸ Colleges and universities
❹ Military industry
❺ Measurement and other departments
❻ Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
❼ Temperature transmitters (sensors), temperature switches and temperature instruments.
