| Place of Origin: | Made In China |
| Brand Name: | NANCON |
| Certification: | CE |
| Model Number: | AC-613 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD195~USD595/pc |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/Month |
| Product Name: | Portable Vacuum Pressure Calibrator | Model No.: | AC-613 |
|---|---|---|---|
| Pressure Range: | (-95 ~ 600)kPa | Pressure Stablity: | 0.02%F.S |
| Regulating Accuracy: | 10Pa | Connection: | 2*M20x1.5 |
| Medium: | Air | Dimension: | ( 310 × 180 × 135)mm |
| Weight: | 2KGS | Warranty: | 18Months |

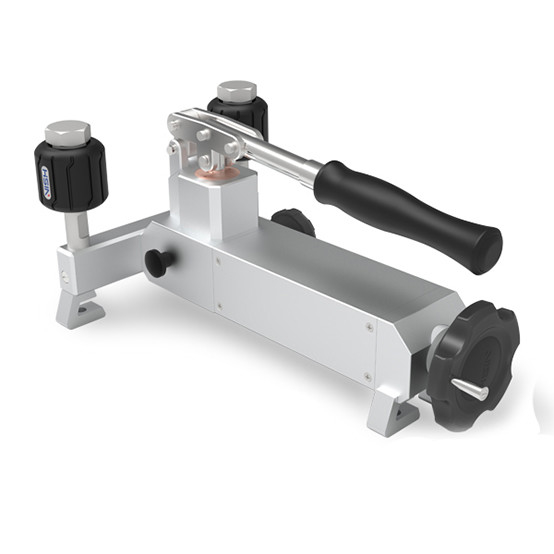

Portable Vacuum Pressure Calibrator Source (-95 - 600)kPa
Product Description
The portable vacuum pressure pump is made of high-quality imported stainless steel and aluminum alloy materials, advanced sealing technology and sealing components, and is refined through various processing techniques. It has an open structure, easy operation and convenient maintenance.
AC-613 is a portable gas pressure pump newly developed by our company. The products are made of high-quality imported stainless steel and aluminum alloy materials. It adopts advanced sealing technology and sealing components, and is refined through various processing techniques. The unique structure and easy operation of the product are ideal for calibrating pressure gauges, pressure transmitters, pressure sensors and other pressure (vacuum) instruments. equipment.

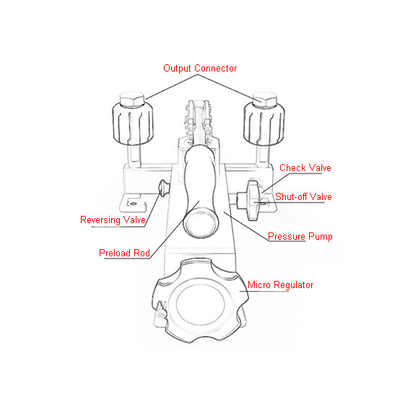

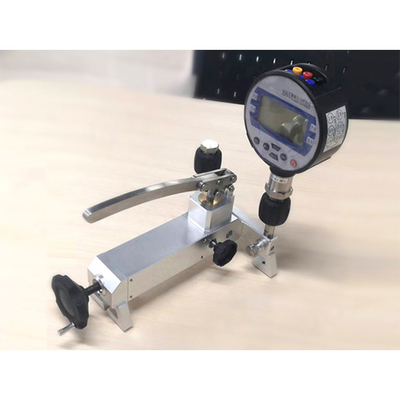

Detailed Images
Specification
| Portable Vacuum Pressure Calibrator | |
| Model No. | AC-613 |
| Pressure Range | (-95 ~ 600)kPa |
| Pressure Stablity | 0.02%F.S |
| Regulating Accuracy | 10Pa |
| Connection | 2*M20x1.5 |
| Medium | Air |
| Dimension | ( 310 × 180 × 135)mm |
| Weight | 2KGS |
| Warranty | 18Months |
Show Details
Features
◆The pressure transmission medium is air, which is clean and hygienic, does not pollute the environment, and improves the accuracy of the calibration instrument
◆Integrate positive and negative pressure, and the conversion of positive and negative pressure is convenient
◆Open structure, simple operation and easy maintenance
◆Lever-type pressurization, super-large range of pressurization and decompression, making the process of lifting and lowering more stable
◆It can be connected to an external air source, saving time and effort
◆The material is made of aluminum alloy, which is beautiful in appearance and easy to carry
◆Fine fine-tuning to provide higher display resolution
Dimension
Application
❶ Industrial and mining enterprises
❷ Scientific research institutions
❸ Colleges and universities
❹ Military industry
❺ Measurement and other departments
❻ Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
❼ Temperature transmitters (sensors), temperature switches and temperature instruments.
Related Products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Shaanxi Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
