| Place of Origin: | Made In China |
| Brand Name: | NANCON |
| Certification: | CE |
| Model Number: | AC-613 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD195~USD595/pc |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/Month |
| Product Name: | Portable Vacuum Pressure Calibrator | Model No.: | AC-613 |
|---|---|---|---|
| Pressure Range: | (-0.095 ~ 2.5)MPa | Pressure Stablity: | 0.02%F.S |
| Regulating Accuracy: | 10Pa | Connection: | 2*M20x1.5 |
| Medium: | Air | Dimension: | ( 310 × 180 × 135)mm |
| Weight: | 2KGS | Warranty: | 18Months |

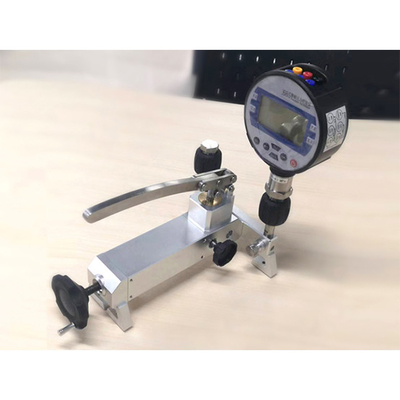

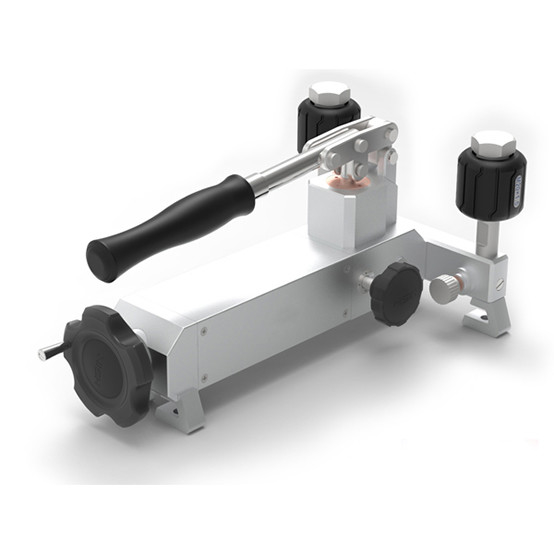

Portable Vacuum Pressure Calibrator Source (-0.095 - 2.5)MPa
Product Description
The portable vacuum pressure pump is made of high-quality imported stainless steel and aluminum alloy materials, advanced sealing technology and sealing components, and is refined through various processing techniques. It has an open structure, easy operation and convenient maintenance.
AC-613 is a portable gas pressure pump newly developed by our company. The products are made of high-quality imported stainless steel and aluminum alloy materials. It adopts advanced sealing technology and sealing components, and is refined through various processing techniques. The unique structure and easy operation of the product are ideal for calibrating pressure gauges, pressure transmitters, pressure sensors and other pressure (vacuum) instruments. equipment.
Detailed Images
Specification
| Portable Vacuum Pressure Calibrator | |
| Model No. | AC-613 |
| Pressure Range | (-0.095 ~ 2.5)MPa |
| Pressure Stablity | 0.02%F.S |
| Regulating Accuracy | 10Pa |
| Connection | 2*M20x1.5 |
| Medium | Air |
| Dimension | ( 310 × 180 × 135)mm |
| Weight | 2KGS |
| Warranty | 18Months |
Show Details
Features
◆The pressure transmission medium is air, which is clean and hygienic, does not pollute the environment, and improves the accuracy of the calibration instrument
◆Integrate positive and negative pressure, and the conversion of positive and negative pressure is convenient
◆Open structure, simple operation and easy maintenance
◆Lever-type pressurization, super-large range of pressurization and decompression, making the process of lifting and lowering more stable
◆It can be connected to an external air source, saving time and effort
◆The material is made of aluminum alloy, which is beautiful in appearance and easy to carry
◆Fine fine-tuning to provide higher display resolution

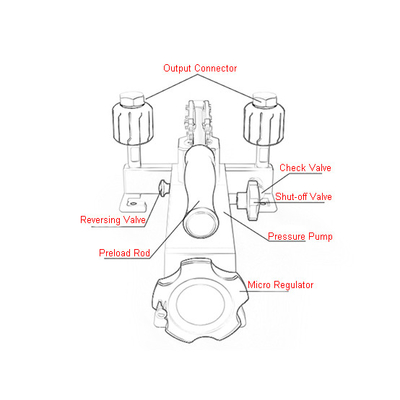

Dimension
Application
❶ Industrial and mining enterprises
❷ Scientific research institutions
❸ Colleges and universities
❹ Military industry
❺ Measurement and other departments
❻ Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
❼ Temperature transmitters (sensors), temperature switches and temperature instruments.
