| Place of Origin: | Made In China |
| Brand Name: | NANCON |
| Certification: | CE |
| Model Number: | AC-617 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD195~USD595/pc |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/Month |
| Product Name: | Portable Vacuum Ultra High Pressure Air Pump | Model No.: | AC-617 |
|---|---|---|---|
| Pressure Range: | (-0.095 ~ 14)MPa | Pressure Stablity: | 0.02%F.S |
| Regulating Accuracy: | 10Pa | Connection: | 2*M20x1.5 |
| Medium: | Air | Dimension: | ( 310 × 180 × 135)mm |
| Weight: | 6.8KGS | Warranty: | 18Months |

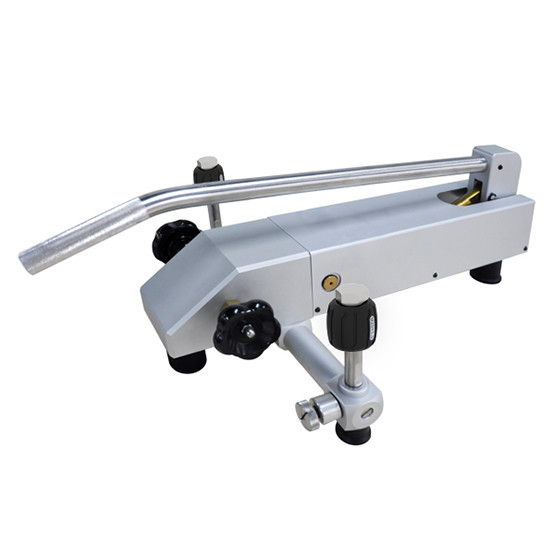

Portable Vacuum Ultra High Pressure Air Pump (-0.095 - 14)MPa
Product Description
AC-617 ultra-high pressure air pressure pump adopts transparent and open design, simple structure, high reliability, convenient operation and maintenance, not easy to leak, spiral pressure rise and fall, stable rise and fall, and easy operation for return verification. High quality material
AC-617 ultra-high pressure air pressure pump adopts transparent and open design, simple structure, high reliability, convenient operation and maintenance, not easy to leak, spiral pressure rise and fall, stable rise and fall, and easy operation for return verification. The material is made of high-quality aluminum alloy, which is light in weight, easy to carry, and can be used in field and laboratory. Widely used in the calibration of various pressure gauges, pressure transmitters, pressure switches, pressure sensors and other industrial process instruments.

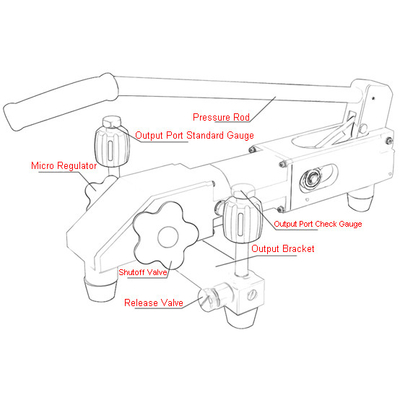

Detailed Images
Specification
| Portable Vacuum Ultra High Pressure Air Pump | |
| Model No. | AC-617 |
| Pressure Range | (-0.095 ~ 14)MPa |
| Pressure Stablity | 0.02%F.S |
| Regulating Accuracy | 10Pa |
| Connection | 2*M20x1.5 |
| Medium | Air |
| Dimension | ( 310 × 180 × 135)mm |
| Weight | 6.8KGS |
| Warranty | 18Months |
Show Details
Features
◆Pressurization and labor-saving, rapid and stable pressure increase, no leakage
◆Pressure-making efficiency is more than 6 times that of conventional pneumatic pumps
◆Each output port has a built-in 50-micron filter to improve service life
◆Built-in filter structure, exhaust valve can effectively remove dirt
◆The fine adjustment valve and check valve have wide adjustment range and high precision, and all metal hard contact seal.
◆Quick and convenient joint connection, no wrench required
Dimension
Application
❶ Industrial and mining enterprises
❷ Scientific research institutions
❸ Colleges and universities
❹ Military industry
❺ Measurement and other departments
❻ Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
❼ Temperature transmitters (sensors), temperature switches and temperature instruments.
Related Products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
