| Place of Origin: | Made In China |
| Brand Name: | NANCON |
| Certification: | CE |
| Model Number: | AC-6000B |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD195~USD595/pc |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/Month |
| Product Name: | Field Automatic Pressure Calibrator | Model No.: | AC-6000B |
|---|---|---|---|
| Pressure Range: | 0 ~ 60Mpa | Pressure Stablity: | 0.05%F.S |
| Accuracy: | 10Pa | Connection: | M20x1.5 |
| Medium: | Oil / Gas | Dimension: | ( 430 × 365 × 230)mm |
| Weight: | 10KGS | Warranty: | 18Months |

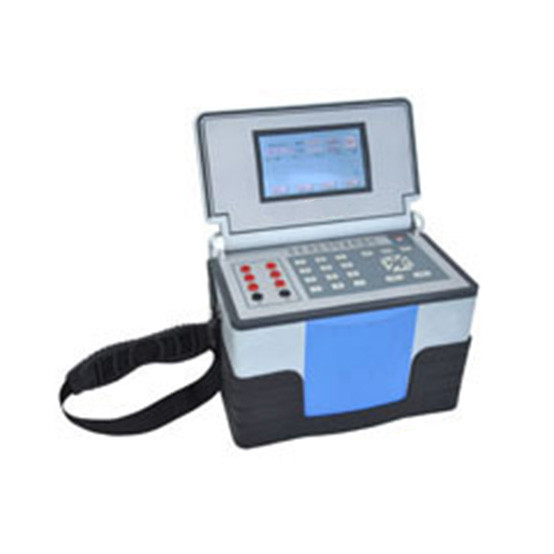

Field Automatic Pressure Calibrator
Product Description
AC-6000B on-site automatic pressure calibrator completely changes the time-consuming and labor-intensive characteristics of traditional on-site verification, and fully takes into account the on-site use environment.
AC-6000B on-site automatic pressure calibrator completely changes the time-consuming and labor-intensive characteristics of traditional on-site verification, fully considers the on-site use environment, and has made special designs in portability, instrument interface and gas circuit protection, etc. Safely complete the rapid calibration of pointer instruments, especially pressure transmitters, pressure switches and other instruments. The equipment adopts full intelligent control, standardized design, modular integration, and is formed into a set of complete functions, flexible configuration, professional and efficient field calibration equipment.

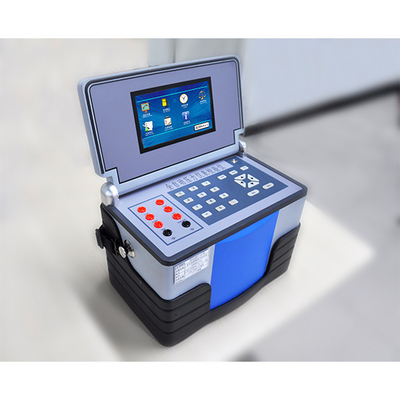

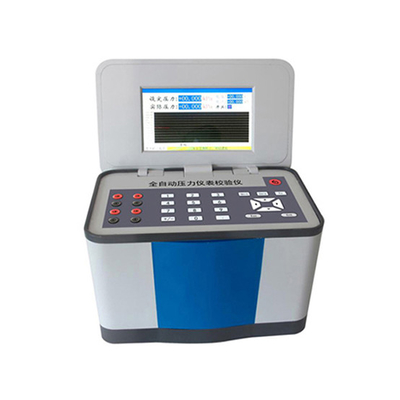

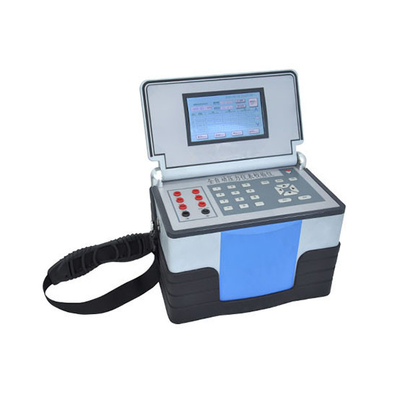

Detailed Images
Specification
| Field Automatic Pressure Calibrator | ||||
| Ambient Temperature | (0~50)℃ | |||
| Relative Humidity | <90% | |||
| Atmospheric Pressure | (86~106)kPa | |||
| Storage Temperature | (-20~60)℃ | |||
| Product Type | Pressure Range | Built-in Modules | Pressure Stability | Working Medium |
| Micro Pressure | ±2.5kPa | ±250Pa ±2.5kPa | 0.001%F.S/s | Air |
| Differential Pressure | (-90~100)kPa | ±2.5kPa ±100kPa | 0.01%F.S/s | Air |
| Air Pressure | (-0.095~2.5)MPa | (-100-250)kPa (0~2.5)MPa | 0.001%F.S/s | Air |
| Air Pressure | (-0.095~4)MPa | (-100-250)kPa (0~4)MPa | 0.001%F.S/s | Air |
| Hydraulic Pressure | (0-40)MPa | 60MPa 30MPa 16MPa 8MPa | 0.001%F.S/s | Water/Oil |
| Hydraulic Pressure | (0-60)MPa | 60MPa 20MPa 8MPa 4MPa | 0.001%F.S/s | Water/Oil |
Show Details
Features
◆Built-in 2 pressure modules, or external pressure modules;
◆Support the information management of the calibrated instrument, parameter setting of the calibration process, automatic execution of the calibration process, automatic data analysis after online, automatic marking of out-of-tolerance points, generation of calibration result files and printing of standard certificates and reports, fast storage, and the stored data can be at least as long as Up to 200 tables of detection data, can download tasks, upload data; automatic step;
◆Built-in electric pump, intelligent control, fast and accurate output of set pressure;
◆AC and DC dual-use, built-in rechargeable lithium battery power supply;
◆The battery has power reminder, overcharge and overdischarge protection function;
◆Icon-style management menu; Chinese and English operation interface, 7-inch touch screen display;
◆Digit display of measured value: 4, 5 or 6 digits can be customized, and the communication interface is RS232.
Electrical Measurement Indicators
| Electrical measurement function | Measuring Range | Accuracy | Resolution |
| Current measurement | (-30~30)mA | ±(0.01%RD+0.005%FS) | 0.1μA |
| Voltage measurement | (-30~30)V | ±(0.01%RD+0.005%FS) | 0.1mV |
| Pressure Unit | Pa, kPa, MPa, bar, mmH2O, mmHg, etc. automatically switch | ||
Application
❶ Industrial and mining enterprises
❷ Scientific research institutions
❸ Colleges and universities
❹ Military industry
❺ Measurement and other departments
❻ Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
❼ Temperature transmitters (sensors), temperature switches and temperature instruments.
Related Products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Shaanxi Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
