| Place of Origin: | Made In China |
| Brand Name: | NANCON |
| Certification: | CE |
| Model Number: | AC-6000T |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD195~USD595/pc |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/Month |
| Product Name: | Automatic Pressure Instrument Calibration System | Model No.: | AC-6000T |
|---|---|---|---|
| Pressure Range: | 0 ~ 60Mpa | Pressure Stablity: | 0.05%F.S |
| Accuracy: | 10Pa | Connection: | M20x1.5 |
| Medium: | Oil / Gas | Dimension: | ( 430 × 365 × 230)mm |
| Weight: | 10KGS | Warranty: | 18Months |

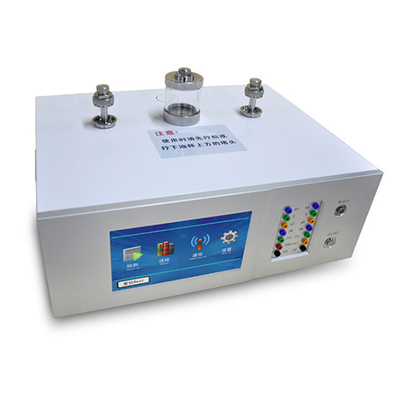

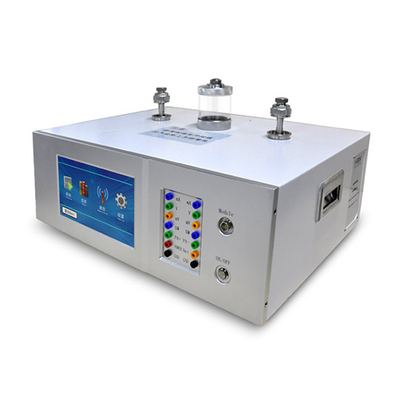

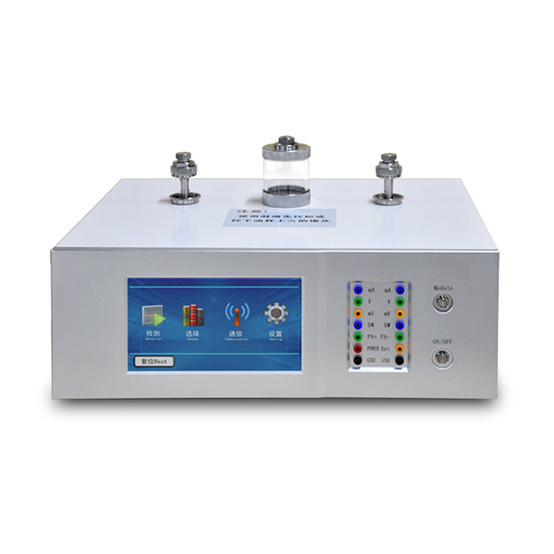

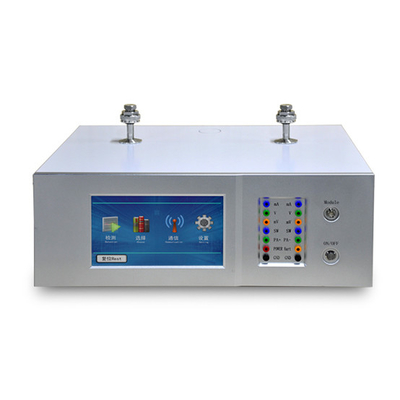

Automatic Pressure Instrument Calibration System
Product Description
AC-6000T automatic pressure instrument calibration system (including vacuum, air pressure calibration system, hydraulic calibration system and other three products) blue LCD screen and key combination design, accurate control
AC-6000T automatic pressure instrument calibration system (including vacuum, air pressure calibration system, hydraulic calibration system and other three products) is designed in combination with blue LCD screen and buttons, showing high-end design concept, accurate control, automatic calibration system can freely choose keyboard control Or host computer control; no matter which kind of control can realize automatic verification function, realize automatic verification instrument. Simple operation and reasonable structure, it can be used for the calibration of general pressure gauges, precision pressure gauges, pressure transmitters, differential pressure transmitters, pressure switches, pressure sensors and other instruments.
Detailed Images
Specification
| Automatic Pressure Instrument Calibration System | |||
| Product Name | Micro pressure type | Air Pressure Type | Hydraulic Pressure Type |
| Pressure Range | (-10~10)kPa | (-0.095~0.6/2.5/4/6)MPa | (0~60)MPa |
| Pressure Stability | 0.01%F.S/s | 0.001%F.S/s | 001%F.S/s |
| Working Medium | Air | Air | Oil/Water |
| Stabilization Time | 15 seconds | ≤10 seconds | ≤15 seconds |
| Connection Port | 2*M20*1.5 | 2*M20*1.5 | 2*M20*1.5 |
| Dimension | (650×400×400)mm | (650×400×400)mm | (650×400×400)mm |
Show Details
Features
◆Adopt the double closed-loop control scheme of pressure and pressure change rate
◆Simple operation, extremely convenient to set pressure output
◆Control pressure quickly and steadily
◆No overshoot phenomenon, in line with the relevant pressure instrument verification regulations
◆Automatic pressure making system with anti-overload protection function
◆It can be switched automatically or manually during the verification process
◆It has the function of combining automatic control and fine-tuning, which is beneficial to the calibration of the pointer pressure gauge
◆Real-time display of buck-boost curve and error curve
◆The software of the upper computer and the touch screen of the lower computer can control the instrument calibration table
◆Verify HART pressure transmitter
Electrical Measurement Indicators
| Electrical measurement function | Measuring Range | Accuracy |
| Current measurement | (0~30)mA | 0.02%F.S+0.003%RD |
| Voltage measurement | (0~30)V | 0.02%F.S+0.003%RD |
| DC output | DC24V ±0.5V | |
Application
❶ Industrial and mining enterprises
❷ Scientific research institutions
❸ Colleges and universities
❹ Military industry
❺ Measurement and other departments
❻ Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
❼ Temperature transmitters (sensors), temperature switches and temperature instruments.
Related Products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Shaanxi Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
