| Place of Origin: | Made In China |
| Brand Name: | NANCON |
| Certification: | CE |
| Model Number: | AC-601 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD195~USD595/pc |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/Month |
| Product Name: | Multi-channel Electric Pressure Calibrator Source | Model No.: | AC-6000T |
|---|---|---|---|
| Pressure Range: | 0 ~ 60Mpa | Pressure Stablity: | 0.05%F.S |
| Accuracy: | 10Pa | Connection: | M20x1.5 |
| Medium: | Oil / Gas | Dimension: | ( 430 × 365 × 230)mm |
| Weight: | 10KGS | Warranty: | 18Months |
Automatic Pressure Instrument Calibration System
Product Description

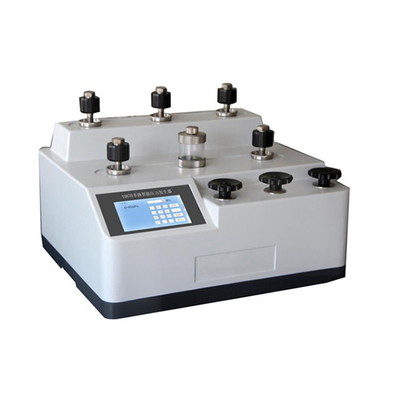

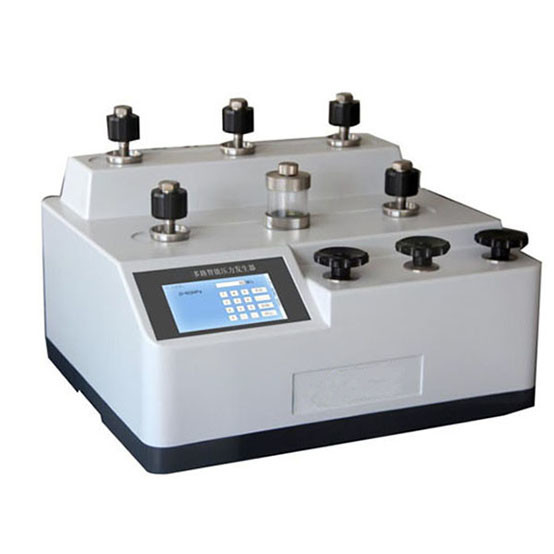

AC-601 multi-channel electric pressure source HSIN601 is the latest product developed by our company. It adopts high-quality imported stainless steel, foreign advanced sealing technology and special processing technology. The five-way output is suitable for batch verification. It is a large-scale measuring instrument in various industries.
AC-601 is a newly developed product of our company. It adopts high-quality imported stainless steel, foreign advanced sealing technology and special processing technology. The five-way output is suitable for batch verification. It is the most ideal equipment for the verification and maintenance of instruments with large quantities and large measuring ranges in various industries. Touch screen control, higher adjustment accuracy, selection of control components from excellent companies, novel and unique shape and more perfect ergonomic design. Mainly used in aviation, aerospace, food, health, military, metallurgy and other measurement departments to calibrate instruments and meters.
Detailed Images
Specification
| Multi-channel Electric Pressure Calibrator Source | |||
| Product Type | Hydraulic Pressure Type | Vacuum Pressure type | Air Pressure Type |
| Pressure Range | (0~60)MPa | (-0.098~0)MPa | (0~1/2.5/4/6)MPa |
| Pressure Stability | 0.02%F.S | 0.02%F.S | 0.05%F.S |
| Adjustment Accuracy | 0.1kPa | 10Pa | 10Pa |
| Pressure Port | M20x1.5 | M20x1.5 | M20x1.5 |
| Working Medium | Oil/Water | Air | Air |
Show Details
Features
◆Electric booster pump, point-by-point pressure control, stable boost, no overshoot pressure generator
◆Five output ports are more efficient as shown in the table
◆Large touch screen control is easy to operate
◆Replacement of traditional electric pressure source
◆With precision fine-tuning valve, wide adjustment range and high stability
◆Calibrate pressure gauges, pressure transmitters, pressure switches, pressure sensors, etc. to provide stable pressure
Electrical Measurement Indicators
| Electrical measurement function | Measuring Range | Accuracy |
| Current measurement | (0~30)mA | 0.02%F.S+0.003%RD |
| Voltage measurement | (0~30)V | 0.02%F.S+0.003%RD |
| DC output | DC24V ±0.5V | |
Application
❶ Industrial and mining enterprises
❷ Scientific research institutions
❸ Colleges and universities
❹ Military industry
❺ Measurement and other departments
❻ Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
❼ Temperature transmitters (sensors), temperature switches and temperature instruments.
Related Products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Shaanxi Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
