| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | XE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD26749.5 ~ USD8839.50/pcs |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Day |
| Payment Terms: | L/C, T/T, Alipay, XT |
| Supply Ability: | 100pcs/week |
| Product Name: | XE Series Micro-balance Analytical Balance Measuring Range 2.1g-31g | Mode No.: | XE2.7S |
|---|---|---|---|
| Measuring Range: | 2.1g | Dividing Value (d): | 0.1μg |
| Repeatability (5% Load): | ±0.02mg | Operating Temperature: | 10℃~30℃ |
| Operating Humidity: | 20%RH~80%RH | Height Of Weighing Chamber: | 230mm |
| Warming And Fluctuating: | ≤1℃/Hour | DC Adapter: | 100V -240VAC Frequency 50/60HZ; Current: MAX 2.0A |

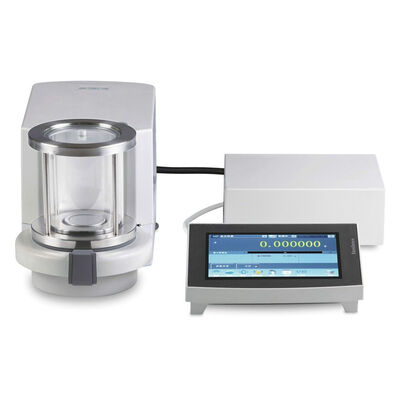

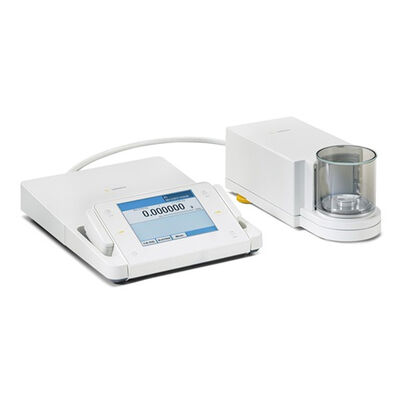

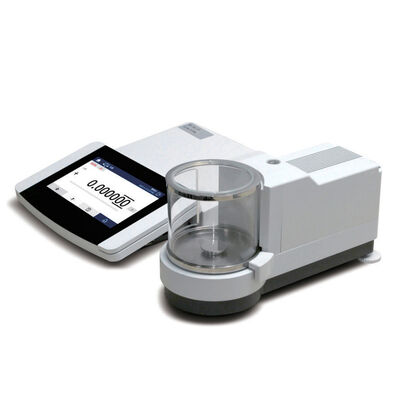

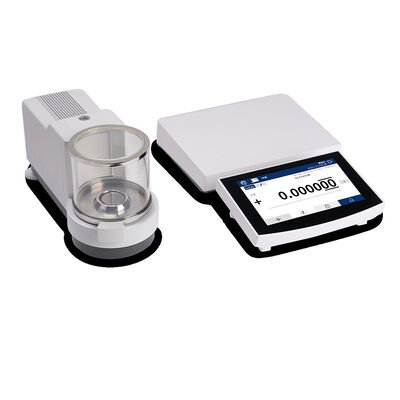

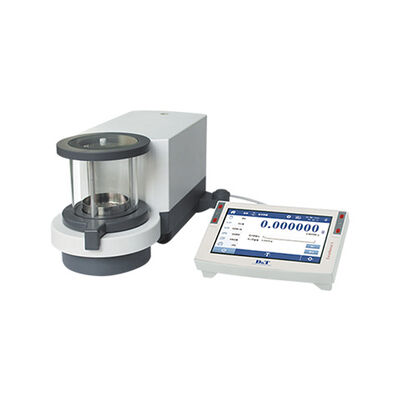

XE2.7S Ultra-micro Balance Analysis Electronic Balance for Laboratory Instrument Dividing Value 0.1μg Measuring Range 2.1g
Product Description

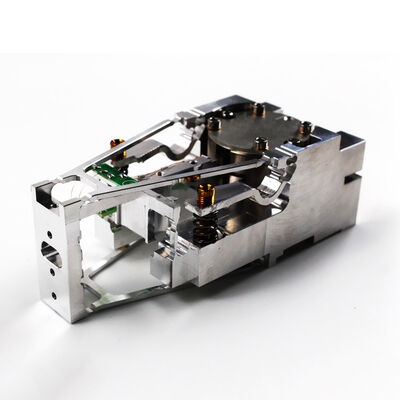

Adopt new super monolithic sensor technology - accurate, fast, stable and reliable.
* Sensitivity: unparalleled sensor design and processing technology ensure the sensitivity of micro-weighting results
* Precision: Particular super monolithic sensor technology ensures the accuracy, stability and consistency of weighing results.
* High-Speed: The sensor technology of horizontal bar, combined with excellent circuit design and software algorithm, meets the requirements of rapid weighing in the laboratory
Compliance with 21CFR Part 11 - full traceability
* Designed in accordance with FDA data integrity principles to achieve attributable, legible, contemporaneous, original, and accurate data (ALCOA).
* User administration: Three-level user administration through access control
* Electronic Signature: The use''''s electronic signature can be used to sign the final report of the weighing operation.
* Audit Trail and Weighing Log: An audit trail is a tamper-proof electronic log file with a timestamp that allows the reconstruction of events related to the creation, modification, and/or deletion of records.
* Data transmission security; Electronic records should be protected from any tampering.
* Data output meets GLP/GMP requirements
Operating system with full touch screen
* Operation requirement is concise and clear, so customers can conveniently operate the balance and directly read the results on the screen to have a wonderful experience. At the same time, it is necessary to consider the special requirements of users in special industries, such as non-contact operation, etc.
Adopt automatic calibration and adjustment technology
* isoCAL automatic internal calibration and adjustment function, automatically triggered by temperature and time, fully ensure the accuracy of weighing results.
Adopt automatic door technology (optional)
* The technology of automatically opening and closing door is not only to improve customer experience satisfaction, but also necessary to consider the requirements of non-contact weighing in special industries, so as to achieve the goal of not contacting the balance during the weighing operation. Besides, The balance has a function of memorizing door position.
Fully automatic electrostatic removal technology (optional)
* Built-in ionizer can automatically eliminate the effect of static electricity on weighing
Built-in multi-applications
* Built-in multi-applications, print output, & data output meet GLP/GMP requirements
Standard communication interface
* Automatically identify the printer of NanCon
* Standard RS232, easy to connect with peripherals
* PC connection function not only is easy to connect to PC, but also can directly transfer weighing data to spreadsheets (Excel) Standard USB-C interface for data storage and export functions
Detailed Images
Specification
| XE Series Ultra-Micro Balance | |
| Model No. | XE2.7S |
| Measuring Range | 2.1g |
| Dividing Value (d) | 0.1μg |
| Repeatability (5% load) | |
| Standard Deviation | 0.2μg |
| Typical Error | 0.3μg |
| Repeatability (near 100% load) | |
| Standard Deviation | 0.3μg |
| Typical Error | 0.5μg |
| Four-corner error (test position according to OIMLR76 specification) | |
| Test Weights | 1g |
| Standard Deviation | 0.3μg |
| Typical Error | 0.5μg |
| Sensitivity Drift (+10℃~+30℃) | 5 ppm/K |
| Maximum tare range: less than 100% of the maximum range | |
| Accuracy Class | Class I (according to Norm 2014/31/EU) |
| Calibration Divisions (e) (according to norm 2014/31/EU) | 1μg |
| Minimum Weighing Value (according to norm 2014/31/EU) | 0.1mg |
| Minimum weighing value: according to USP (United States Pharmacopoeia Code) Chapter 41 | |
| Optimal Minimum Weighing Capacity | 0.82mg |
| Typical Minimum Weighing Volume | 1.3mg |
| Typical Stabilisation Time | 8s |
| Typical Measurement Time | 12s |
| Reference calibration weights | |
| External Calibration Weights | 2g |
| Standard Weight Classes (according to OIML R111-1) | E1 |
| External Dimension | |
| Length×Width×Height | 90mm×295mm×150mm |
| Weighing Pan Size | Φ30mm |
| Height of Weighing Chamber | 80mm |
| Net Weight | Approximately 4.7kg |
| Working Conditions | |
| Ambient Temperature | 18℃~23℃ |
| Relative Humidity | 50%RH~75%RH |
| Warming & Fluctuating | ≤1℃/Hour |
| Power Supply | 100V ~ 240VAC 50Hz/60Hz 1.0A ~ 0.5A |
Features
With the new super new monobloc load cell - accurate, fast, stable and trustworthy!
♦ Sensitive: Unrivalled transducer design and machining ensures the sensitivity of trace weighing results.
Accurate: with the unique Super New Monobloc load cell that ensures accuracy, stability and consistency of micro weighing results.
♦ Fast: with single lever transducer technology, combined with superior circuit design and software algorithms, it meets laboratory requirements for fast weighing.
Fully compliant with 21CFR Part 11 compliance - Full traceability
♦ Designed to achieve accurate, legible, synchronised, original and traceable (ALCOA) data in accordance with US FDA data integrity principles.
♦ User Management: Three levels of user management through access control.
♦ Electronic signature: the user's electronic signature can be used to sign the final report of the weighing process.
♦ Audit Trail and Weighing Log: the Audit Trail is a tamper-proof electronic log file with timestamps that allows the reconstruction of events related to the creation, modification or deletion of records.
♦ Data transmission security; the electronic records shall be protected against any tampering.
♦ Data output is GLP/GMP compliant.
Adopt full touch screen operating system
♦ Simple and clear operation, easy to use, with intuitive display and good experience, while considering the special requirements of users in special industries, such as contactless operation.
Adopt fully automatic calibration and adjustment technology
IsoCAL (Internal Calibration and Adjustment) function, which ensures accurate weighing results, with fully automatic temperature and time controlled calibration and adjustment.
Automatic door opening and closing technology (optional).
The automatic door opening and closing technology not only improves customer satisfaction, but also takes into account the requirements of the special industry for contactless weighing, which can be realised without touching the balance to open and close the door automatically, and at the same time, the door position has a memory function.
Adopting full-automatic electrostatic removal technology (optional)
♦ Built-in static eliminator can automatically eliminate the effect of static electricity on weighing.
Built-in multiple applications
♦ Built-in multiple applications, printout, data output in line with GLP/GMP requirements.
Standard communication interface
♦ Automatic recognition of manufacturer's printer.
♦ Standard RS232, easy to connect with peripherals.
♦ Real PC connection function, easy to connect to PC, can transfer weighing data directly to spreadsheet (Excel).
♦ Standard USB-C interface for data storage and export function.
Applications
Industrial and mining enterprises
Scientific research institutions
Colleges and universities
Technology industry
Measurement and other departments
Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
Temperature transmitters (sensors), temperature switches and temperature instruments.

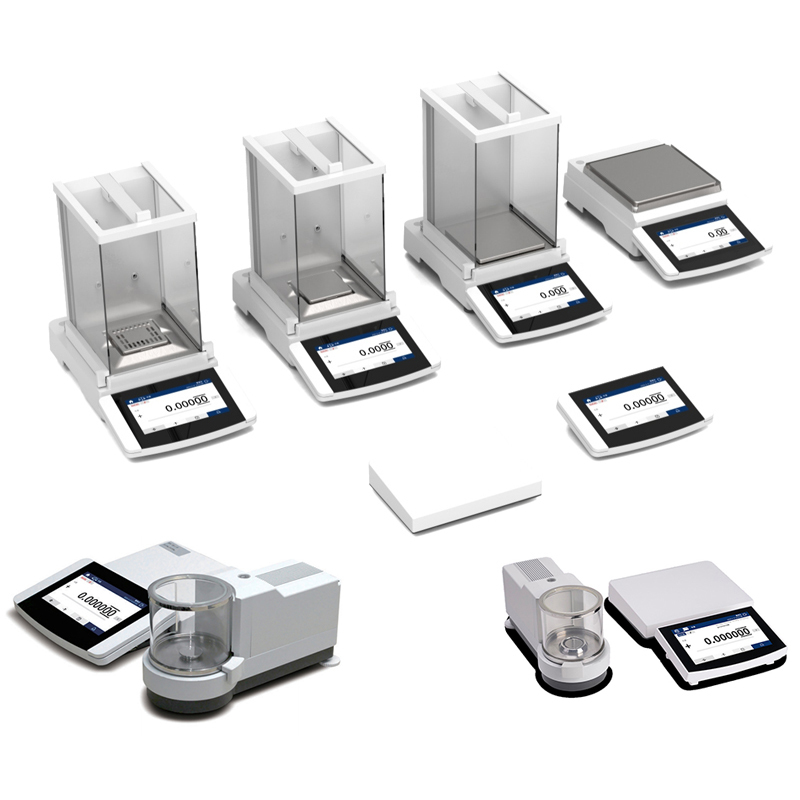

Related Products
