| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SLK-200 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $48.00~$98.00/pc |
| Packaging Details: | Submersible Level Transducers, Waterproof Pressure Sensors Carton box standard export packing packed according to the clients' requirements |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Accuracy: | 0.25%FS | Output: | 0~10VDC (three Wire) |
|---|---|---|---|
| Range: | 0-5-10-20-50-100-200m | Connection: | G1/4, G1/2, 1/2NPT, 1/4NPT, M12 * 1.5, Etc. (can Be Customized) |
| Medium Temperature Range: | -20~85°C | Response Time: | ≤5mS |
| Power Supply: | 24V Dc(15~30VDC) | Pressure Type: | Gauge Pressure |
| Stability: | ≤±0.15%FS/ Year | Product Name: | 4-20ma Input Liquid Level Transmitter Water Level Sensor |
Description Submersible Level Transducers, Waterproof Pressure Sensors
Submersible type 4-20ma Liquid Water Level sensor adopt high performance diffused silicon piezoresistive pressure sensor as measuring element, after the high reliability of amplification circuit and precise temperature compensation, convert the gauge pressure or absolute pressure of the measured medium into standard voltage or current signals.

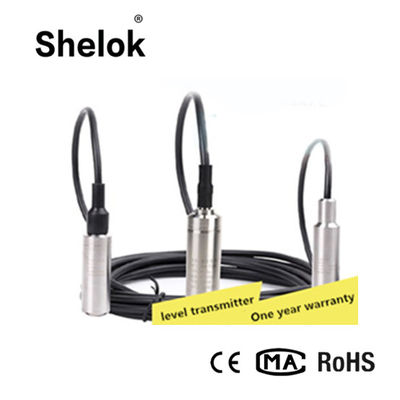

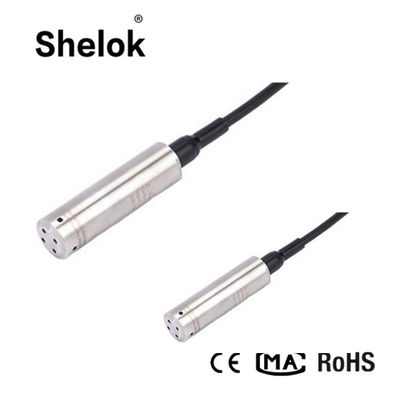

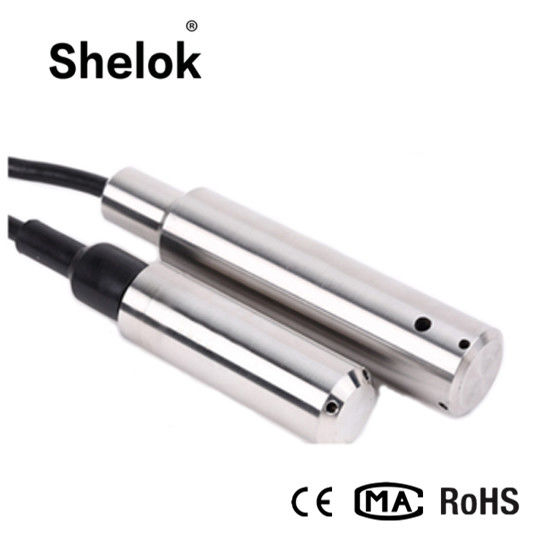

Detailed Images Submersible Level Transducers, Waterproof Pressure Sensors
Specification Submersible Level Transducers, Waterproof Pressure Sensors
| Submersible Level Transducers, Waterproof Pressure Sensors | |
| Pressure Type | Gauges Pressure |
| Range | 0~5~10~20~50~100~200m |
| Output | 0~10V DC ( Three Wire ) |
| Accuracy | ±0.25%FS, ±0.5%FS |
| Power Supply | 24V DC (15~30V DC) |
| Insulation Resistance | ≥1000 MΩ/100V DC |
| Load Resistance | Current output type: Max 800Ω/Volatage Output Type: More than 50KΩ |
| Temperature of Medium | -20℃ ~ +85℃ |
| Ambient Temperature | -20℃ ~ +85℃ |
| Relative Humidity | 0~95% RH |
| Seal Grade | IP68 |
| Over Load | 150%FS |
| Response Time | ≤5mS |
| Stability | ≤±0.15%FS/year |
| Vibration Fluence | ≤±0.15FS/year (Mechanical Vibration Frequency) 20Hz~1000Hz |
| Electrical Connection | Full Sealed 5 Core Gas Shielded Cable |
| Connection Thread | Input Type |
| Material of Connection Thread | SS 304 |
Applications Submersible Level Transducers, Waterproof Pressure Sensors
4-20ma Input Liquid Level transmitter Water Level Sensor of the water tank, oil level in oil tank, water sink (oil sink), wells, water towers, river, reservoir, sewage treatment equipment, sea water, groundwater monitoring, etc.
Selection Guide Submersible Level Transducers, Waterproof Pressure Sensors
Ordering guide
External dimension
Connection diagram
Installation notice
Related products
FAQ
