| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | NYRD801,802,803 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $420.00~$500.00/pc |
| Packaging Details: | Guided wave radar level transmitter standard export packing packed according to the clients' requirements |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Guided Wave Radar Level Transmitter | Range: | 0~35m |
|---|---|---|---|
| Accuracy: | <0.1% | Applications: | Various Liquids, Solid |
| Power Supply: | 24V DC | Feature: | Digital Radar Level Meter |
| Process Temperature: | -40~250℃ | Process Pressure: | -1~40BAR |
| Output: | 4~20mA /Hart /RS485(Option) | Process Interface: | Thread, Flage (option) |
Description of guided wave radar level transmitter:
Radar level sensor transimitter emits a very narrow microwave pulse, the pulse to the speed of light in the space, encountered the surface of the measured medium, part of its energy is reflected back, the same antenna to receive. The time interval between the transmitting pulse and the receiving pulse is proportional to the distance from the antenna to the surface of the measured medium to calculate the distance from the antenna to the surface of the measured medium.

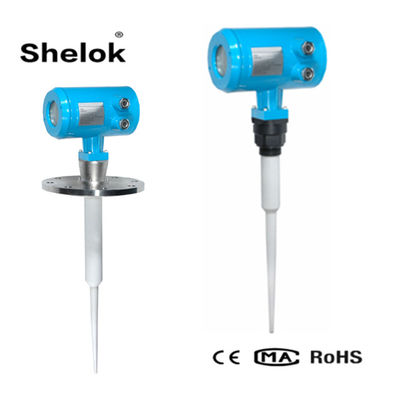

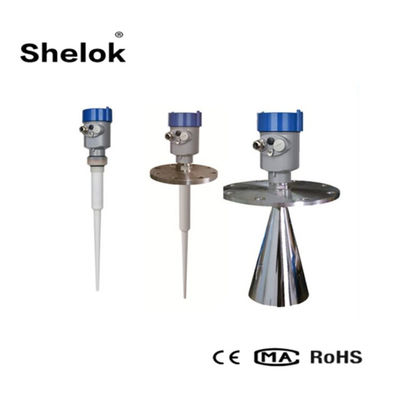

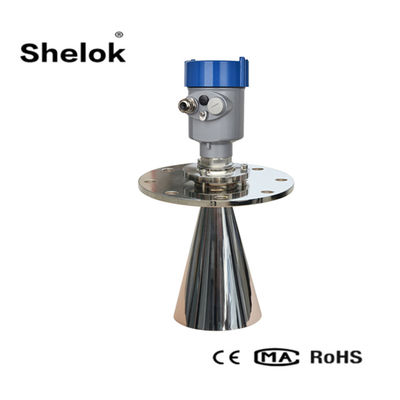

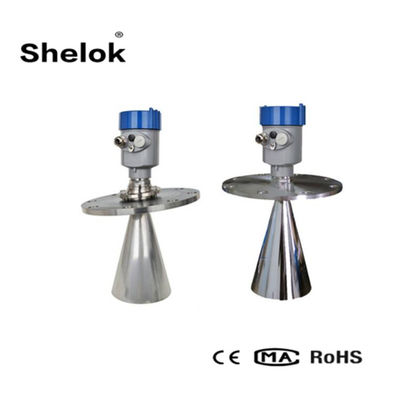

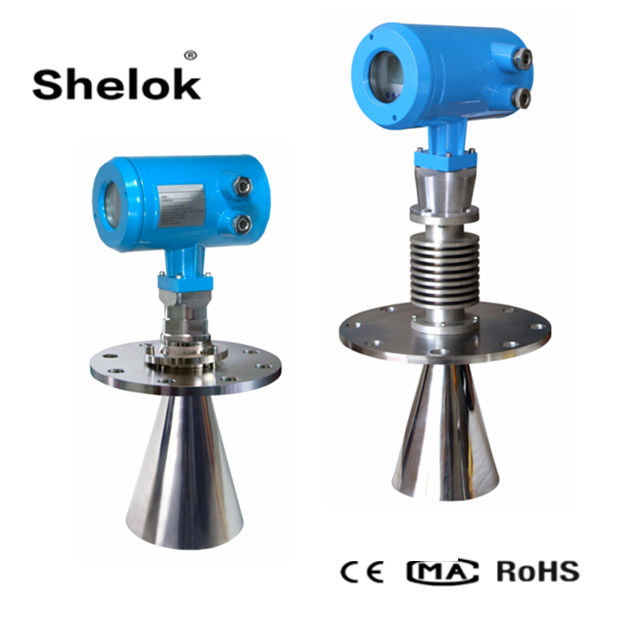

Detailed Images of guided wave radar level transmitter :
NYRD801 NYRD802 NYRD803
guided wave radar level transmitter
| Model | NYRD801 | NYRD802 | NYRD803 |
| Measuring Range | 0~35 meters | ||
| working frequency | 6.8Ghz | ||
| Power supply | 24VDC(+/-10%) | ||
| Current signal | 4~20mA | ||
| Accuracy | <0.1% | ||
| Resolution | 1mm | ||
| Response time | 0.2S | ||
| Environment Temperature | "-40~250℃ | ||
| Pressuage gauge | "-1~40bar | ||
| Interface | 2pcs M20*1.5 or 2pcs 1/2NPT (Cable OD 5~9MM) | ||
| Application | Power plants, oil fields, chemicals, metallurgy, cement, water treatment, paper making, and others | ||
| Beam angle | 24" | 24" | 14" 16" 20" |
| Antenna material | PP or PTFE | PTFE | SS |
| Process Connection | Thread, | Flange | Flange |
Power plant: coal pile, the original coal bunker, fuel tanks, reservoirs, waste gas purification tank, warehouse pumps, ash library, fuel tanks, etc.
Oil field: crude oil or refined oil storage tank, three - phase separator, settling tank, sewage tank and oil - water interface, drilling mud tank;
Chemical: crude oil distillation tower, raw materials and intermediate silos, reaction tanks, ammonia tanks, solid silos, separators, etc .;
Metallurgical: ore silo, ore grinder, raw materials warehouse, auxiliary materials warehouse, blast furnace, alumina powder warehouse, electrolytic tank buffer tank;
Cement: stone warehouse, raw silo, cement warehouse, coal warehouse, slag storage bin;
Water treatment: reservoirs, sewage tanks, water treatment tanks, sedimentation tanks, deep wells, drinking water networks;
Paper: raw materials warehouse, storage tower, drying drum, chemical materials storage warehouse, etc.
Other: quarry, food, pharmaceutical, environmental protection, shipbuilding and other industries;
Company Information:
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
