Non Contact Ultrasonic Liquid Fuel Level Sensor Meters, Level Sensor For Water
Description Non Contact Ultrasonic Liquid Fuel Level Sensor Meters, Level Sensor For Water
Ultrasonic level sensor is instrument of measured material level, which is non-contact, high reliability, cost-effective, easy to install and maintain.

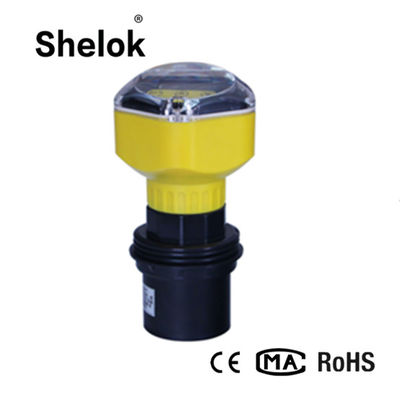

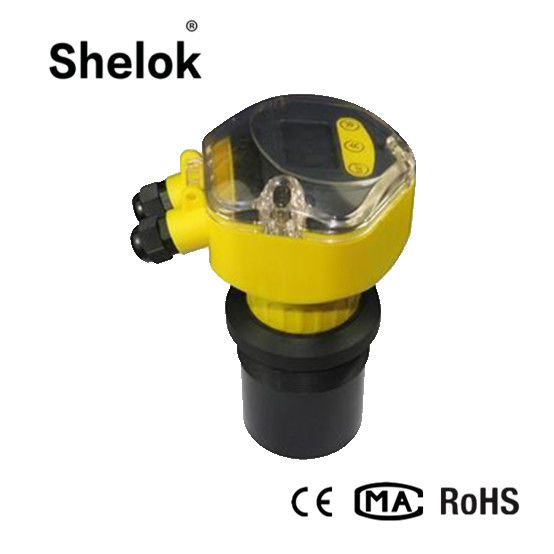

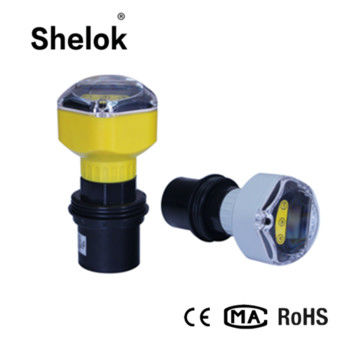

Detailed Images Non Contact Ultrasonic Liquid Fuel Level Sensor Meters, Level Sensor For Water
Specification Non Contact Ultrasonic Liquid Fuel Level Sensor Meters, Level Sensor For Water
| Functions | Integrative Type | Segregated Type |
| Level Range: |
Economic Type: 5M, 10M, 12M. Standard Type: 5M, 10M, 15M, 20M,30M, 50M. |
5M, 10M, 15M, 20M,30M, 50M, 70M. |
| Accuracy: | 0.25%-0.5%F.S | 0.25%-0.5%F.S |
| Blind Zone: | 0.2-0.6m | 0.2-0.6m |
| Working Pressure: | 2 Bar (Explore Proof Type is 5 Bar) | 2 Bar (Explore Proof Type is 5 Bar) |
| Resolution: | 3mm or 0.1%F.S (Max of them) | 3mm or 0.1%F.S (Max of them) |
| Display: | English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection. | English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection. |
| Analog Output: |
4~20mA/750Ω load resistance (2 wire) 4~20mA/250Ω load resistance (4 wire) |
4~20mA/750Ω load resistance NA |
| Relay /Alarm Output: |
AC 250V/ 8A; DC 30V/ 5A; State programmable (optional for 4 wire) |
AC 250V/ 8A; DC 30V/ 5A; State programmable (optional) |
| Power Supply: |
24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.) |
220VAC+15% 50Hz 24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.) |
| Environment Temperature: |
Meter: -20~+60°C Sensor: -20~+80°C |
Meter: -20~+60°C Sensor: -20~+80°C |
| Communication: | RS485 Communications (optional) | RS485 Communications (optional) |
| Explore Proof: | Ex(ia)ⅡCT6 | Ex(ia)ⅡCT6 |
| Water Proof: |
Economic Type: IP65 Standard Type: IP66 |
Meter: IP65 Sensor: IP68 |
| Cable of Sensor: | Null | Standard: 10 Meters, Max to 200 Meters |
| Sensor Installation: | By level range and model code | By level range and model code |
| Store Request: |
Temperature: -20~+80°C Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration. |
Temperature: -20~+80°C Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration. |
