| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SLK-YD32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $65.00~$85.00 |
| Packaging Details: | Pressure Transmitter 0-1bar Water Pressure Sensor Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

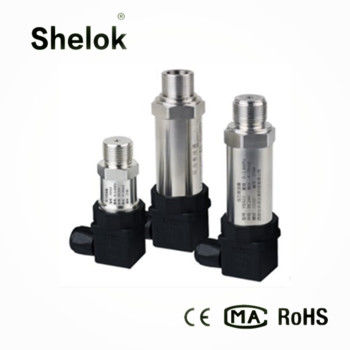

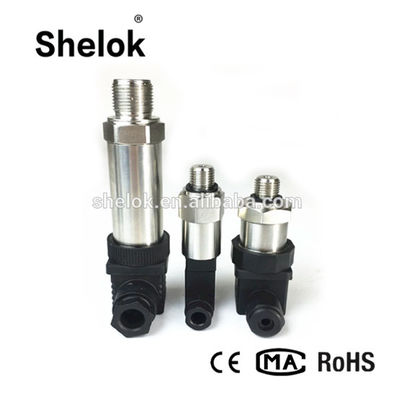

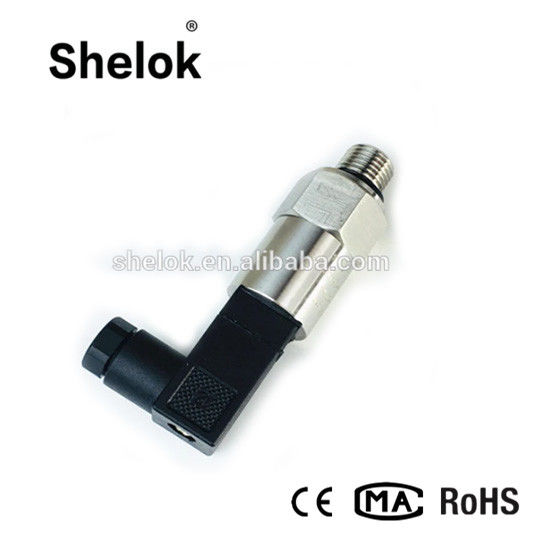

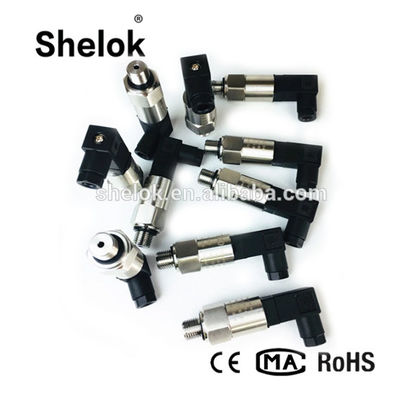

Cheap Gauge Pressure Transmitter 0-1bar Water Pressure Sensor
Description
Pressure transmitter In military engineering, chemical explosion test, oil exploration and well testing, materials, mechanics, civil engineering, geotechnical mechanics. Traumatic medicine, hydraulic power mechanical test and other scientific experiments and modern instrumentation, the need to automatically measure some of the high frequency of change, the pressure waveform rise fast and steep dynamic pressure waveform and amplitude, RMS, which requires the use of pressure sensors with high Of the natural frequency, very short rise time and wide excellent response frequency band to ensure sufficient dynamic pressure measurement accuracy.
Detailed Images
Specification
| Pressure Transmitter 0-1bar Water Pressure Sensor | |
| Measure Range | -100KPa~0~1KPa...20KPa...100MPa |
| Accuracy | ±0.1 %FS, ±0.25%FS |
| Output | 4~20mA |
| Power supply | 12-36V DC |
| Overload pressure |
200%FS(Positive pressure side) 100%FS(Negative pressure side) |
| Long stability | ≤±0.2%FS/Year |
| Ambient humidity | ≤85%RH |
| Housing material | Stainless steel structure |
| System pressure | 1000% FS |
| Temp.compensation Range | 0-+70/℃ |
| Pressure type | gauge or absolute pressure |
| Medium | The gas, liquid without corrosion on stainless steel liquid |
Features
* Small size easy installation
* Stainless steel case sturdy and durable
* Wide temperature range:-40~125℃
* Durable thin film sensor technology
* Pressure ranges from -1 bar to 60bar
* 0.5-4.5V ,1-5V ,0-5V ratiometric outputs
* 0-10V, 4-20 mA , others available
* Highly resistant to pressure spikes and vibration
Applications
* Automobile, compressor and refrigeration Industry
* Engineering machinery
* Pressure control and monitor
* Energy and water treatment system
* Armarium, agricultural machinery
* Hydraulic and pneumatic control system
* Iron and steel industry, light industry
* Pump, fitness equipment, household appliances
* Hydraulics and pneumatics
* Liquid level measurement
* Test equipment
